subsonics or low frequencies and a
RFI (Radio Frequency Interference)
filter to attenuate ultrasonic frequen-
cies.
You should find the following items
when you unpack:
P.I.P.-ISO module
Two 8-32 Phillips Machine Screws
Two Lock Washers
Two Quick-Disconnect Barrier Blocks
This Owner’s Manual
One ISO-MOD KIT containing:
One Isolation Network
One P.I.P. connector Keying Plug
One piece of self-stick Fish Paper
One ISO-MOD Warning Sticker
ISO-MOD Instruction Sheet
1.1 Features
❏ Fail-safe output isolation allows
either side of outputs to be
shorted to chassis ground with
no worries.
❏ EMI (Electro-Magnetic Inter-
ference) shielding provides
additional gain margin under
fault conditions.
❏ Balanced inputs with 1 kVAC
breakdown 1:1 isolation
transformers.
❏ Excellent common mode
rejection.
❏ RFI filter which attenuates
unwanted ultrasonic
frequencies that would
otherwise waste amplifier
power. The RFI filter is a
12 dB/octave (2nd order),
Bessel-tuned low-pass filter
with a 3 dB roll-off point at
33 kHz.
❏ Switchable subsonic/bass filter
with 50, 100 or 300 Hz roll-off
frequencies.
❏ Quick-connect barrier block
connectors provide greater
wiring flexibility and make
installation easier.

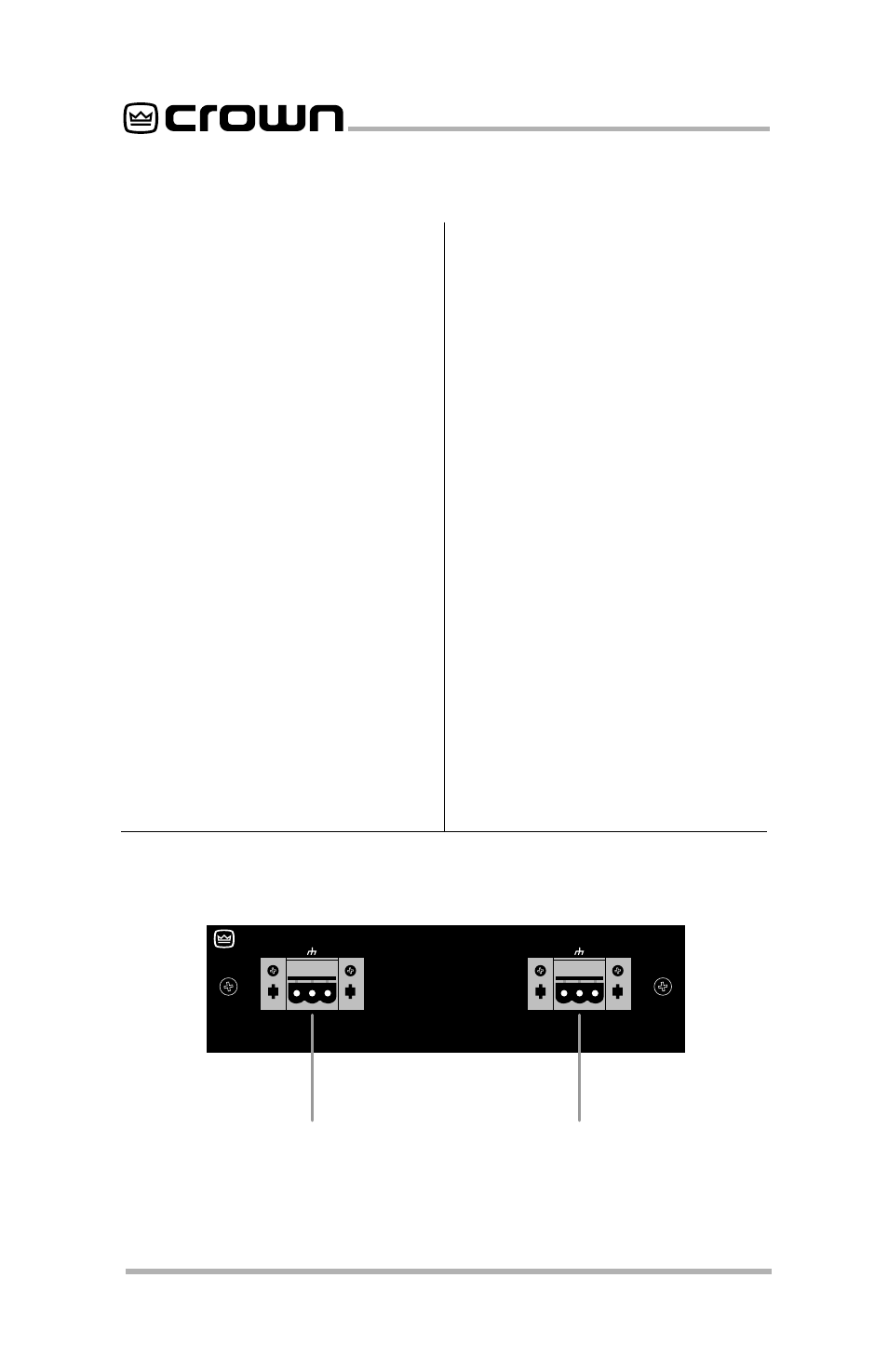

Fig. 2.1 Front View
ISO
Programmable
Input Processor (P.I.P.)
—WARNING—
THIS P.I.P. PROVIDES FULL ISOLATION
FOR ISO-MODIFIED AMPLIFIERS ONLY!
DO NOT CONNECT THE OUTPUT GROUND
LUG TO THE INPUT COMMON OR CHASSIS
GROUND. REFER TO P.I.P.–ISO OWNER’S
MANUAL FOR FURTHER INFORMATION.
+ –
C H - 2 I N P U T
+ –
C H - 1 I N P U T
A A
