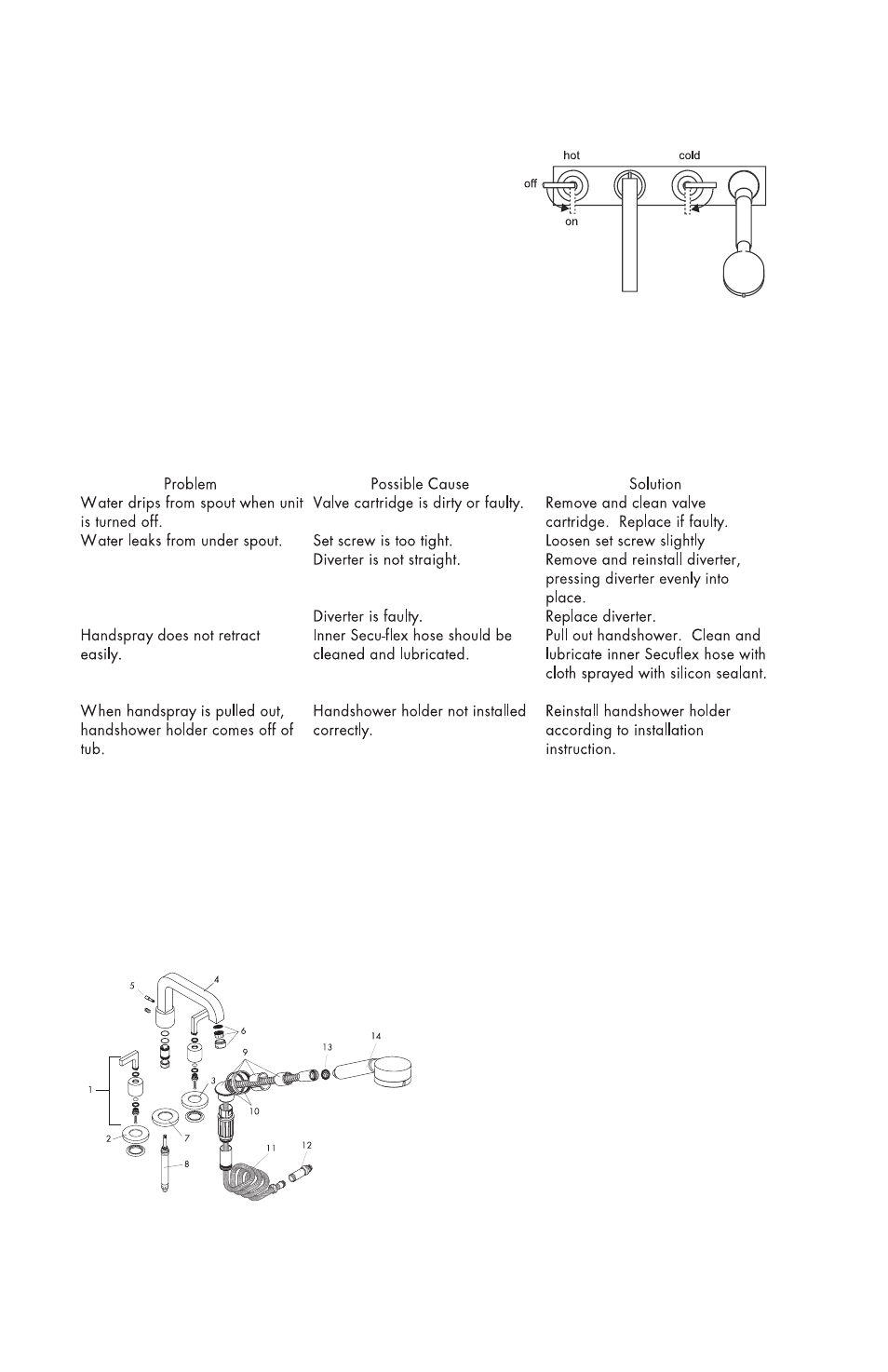

User Instructions
• Turn the left handle to obtain hot water, the
right handle to obtain cold water.
• When the water comes on, it will come
through the spout. Pull the diverter lever up
to divert the water to the handshower.
When the water is turned off, the diverter
will automatically reset to the spout position.
Troubleshooting
Replacement Parts
1 handle 39294XX0
2 hot escutcheon 96771XX0
3 cold escutcheon 96772XX0
4 spout 96773XX0
5 diverter knob 96774XX0
6 areator 13956XX0
7 spoout escutcheon 96236XX0
8 diverter 96777XX0
9 handshower holder 96433XX0
10 handshower holder escutcheon 96237XX0
11 inner Secuflex hose 94148000
12 backflow preventer cartridge 94146000
13 screen washer 94146000
14 Uno handshower 38850XX1
XX = color
00 = chrome
42 = platinum
