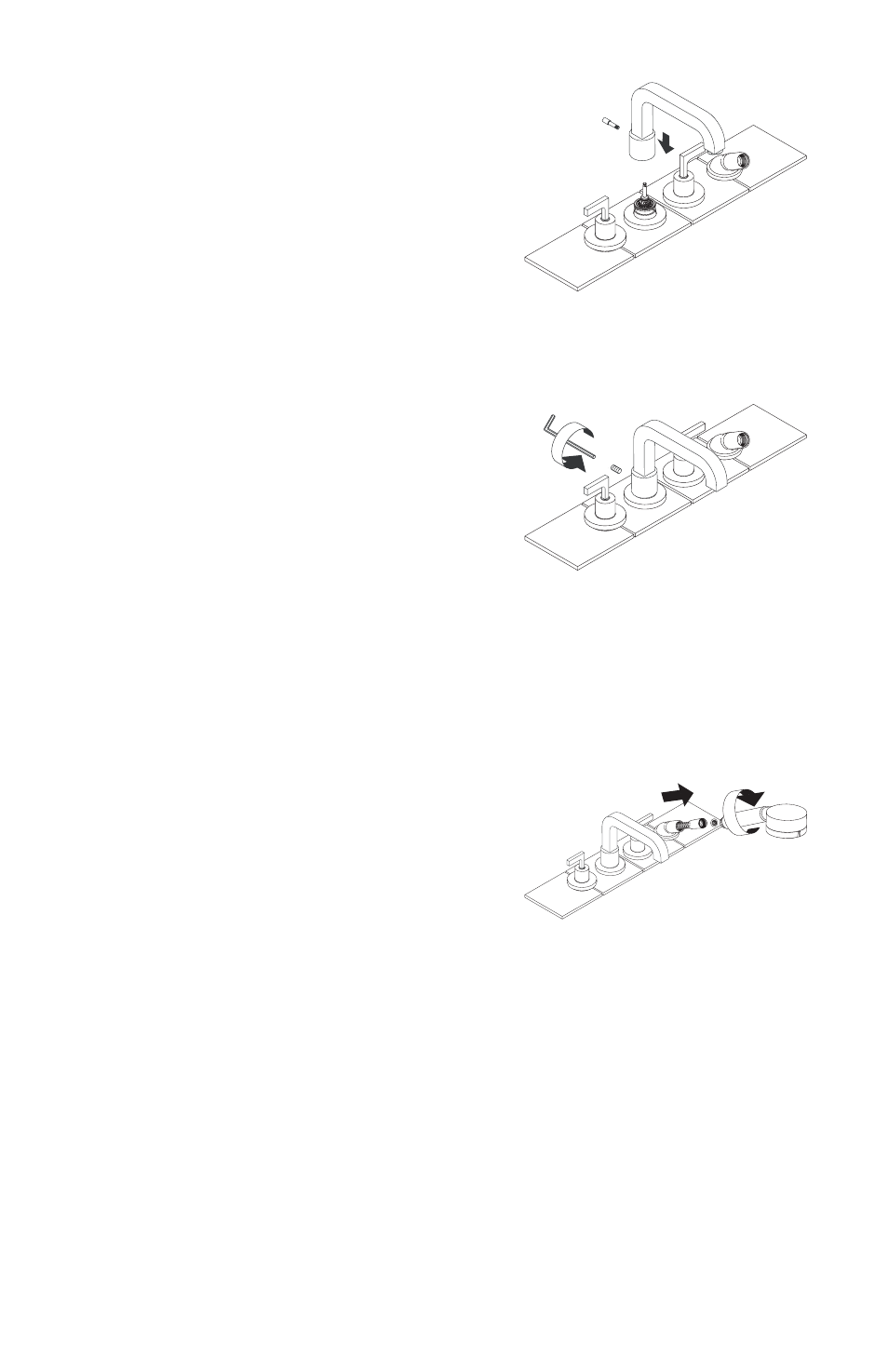

• Place the spout over the diverter
assembly. Insert the diverter knob and
tighten. Tighten the set screw, using the
enclosed 3 mm allen wrench.
• Pull outward on the inner Secu-flex
hose. Install a screen washer in the
hose end connector. Install the
handshower.
• Guide the handshower back into the
handshower holder.
