User Instructions
Lift the handle to turn the faucet on. Pivot the handle to the left for warmer water, to the right for
cooler water. Push the handle down to turn the water off.

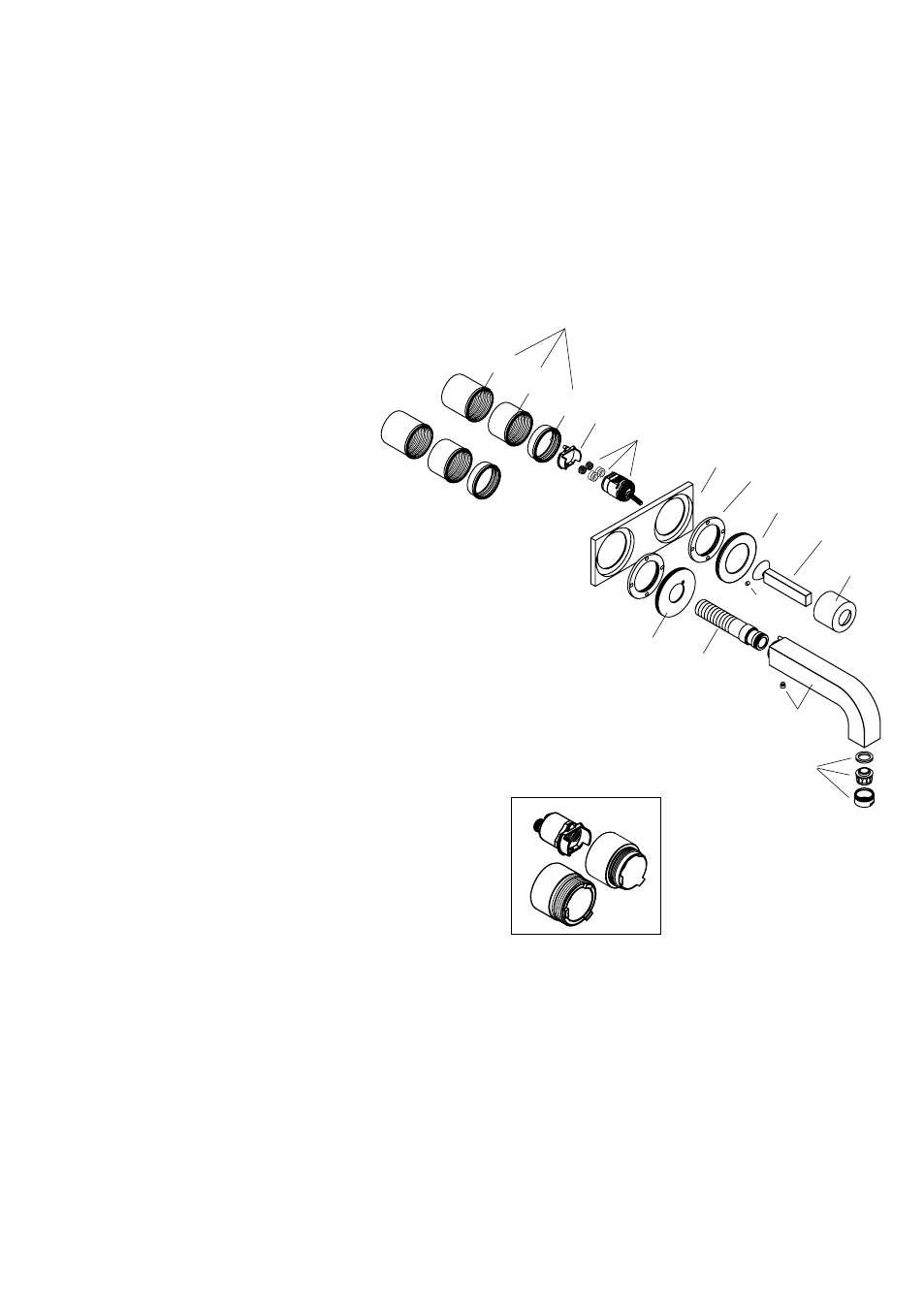

Replacement Parts
1 flange 96908XXX
handle 3909XXX
3 flange for handle 9691XXX
4 flange for spout 97695XXX
5 face plate 96914XXX
6 cartridge 96339000
7 aerator 13085000
8 spout 9739XXX
9 anti-twist device 9780000
10 spout connector 978000
11 fixing set 97971000
1 nut 97601000
13 hollow set screw M4x6 97767000
14 extension kit 3898000 (optional)
XXX = color
000 = chrome
80 = brushed nickel
