Page 3

3
Installation Instructions
T
urn
off
The
waTer
aT
The
supply
before
beginning
The
insTallaTion
.
·

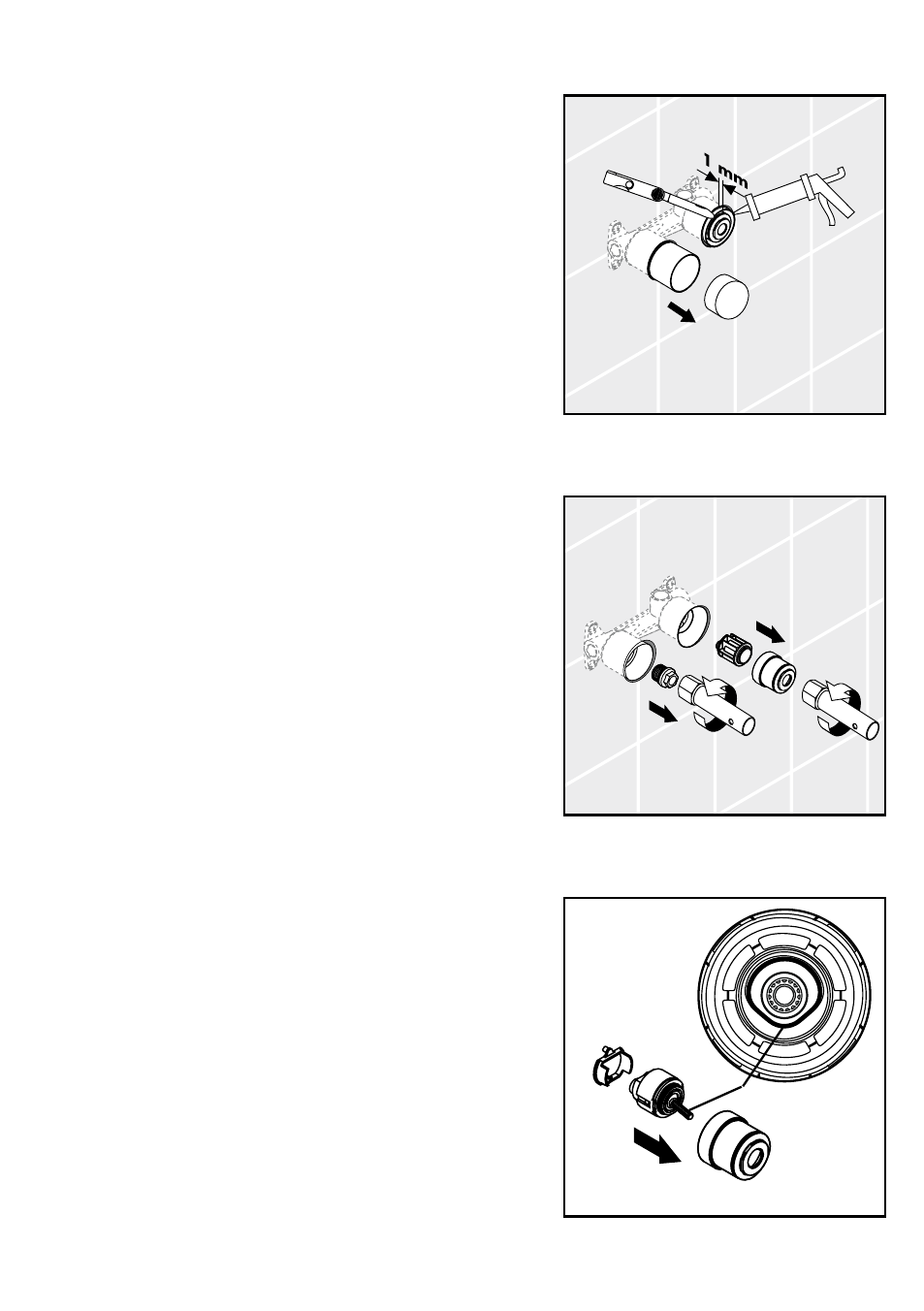

Remove the caps from the plaster shields. Cut the
plaster shields 1 mm (1/16”) from the surface of the
finished wall. Seal around the plaster shields with a
suitable, non-staining, waterproof bathroom sealant.
·
Use a 7 mm deep socket wrench to remove the
flush insert.
·
Use a 17 mm deep socket wrench to remove the
plug from the spout port.
·
Install the cartridge and anti twist device to the
cartridge housing. Make sure that the cartridge is
oriented as shown in the diagram.
