5

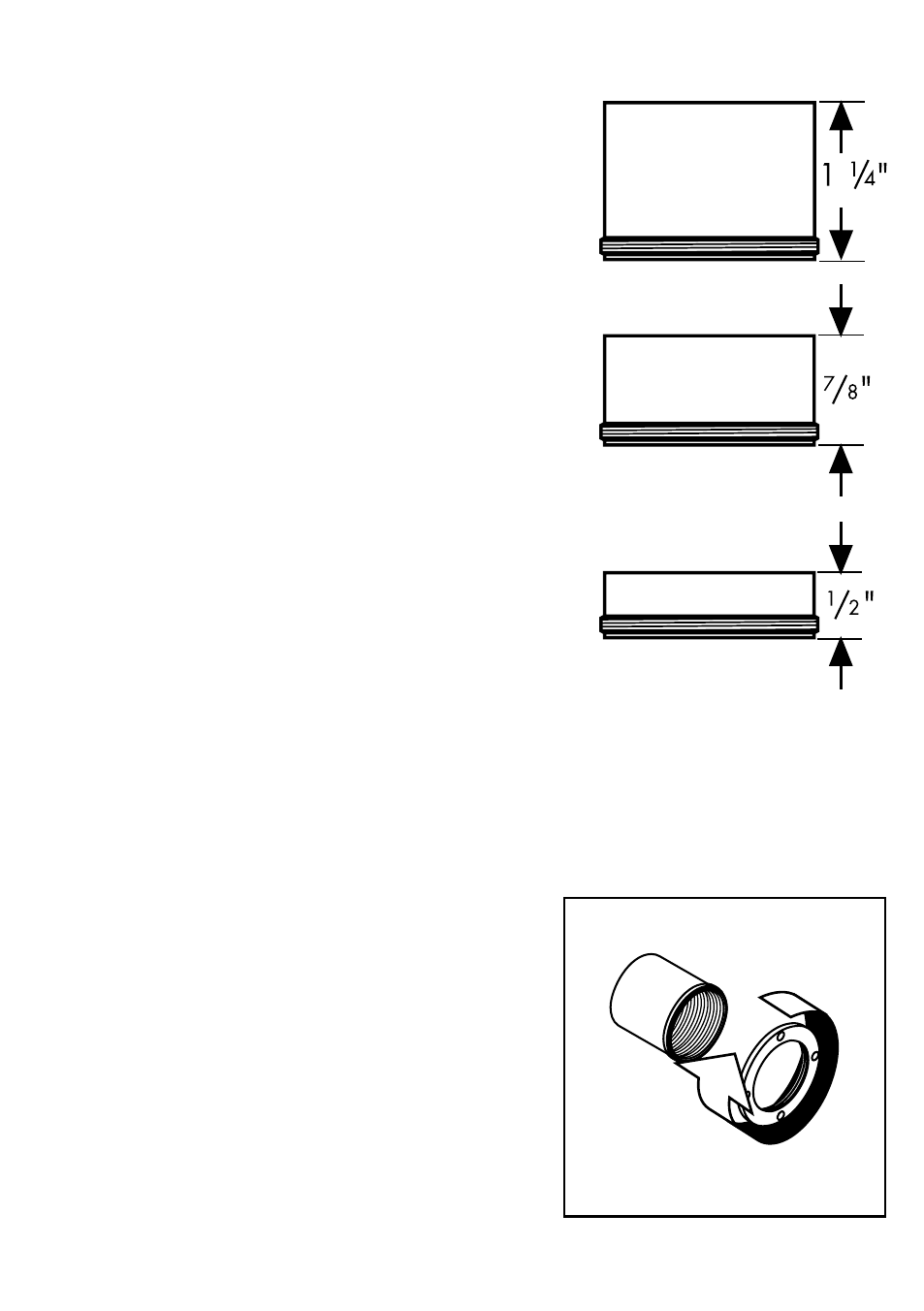

If the distance is 3 1/4” – 3 7/8”, select the two “A” sleeves

(1-1/4” long).

If the distance is 3 7/8” – 4 3/8”, select the two “B” sleeves

(7/8” long)

If the distance is 4 3/8”, select the two “C” sleeves (1/”

long)

·

Screw the escutcheon retainers to the ends of

the two sleeves.
