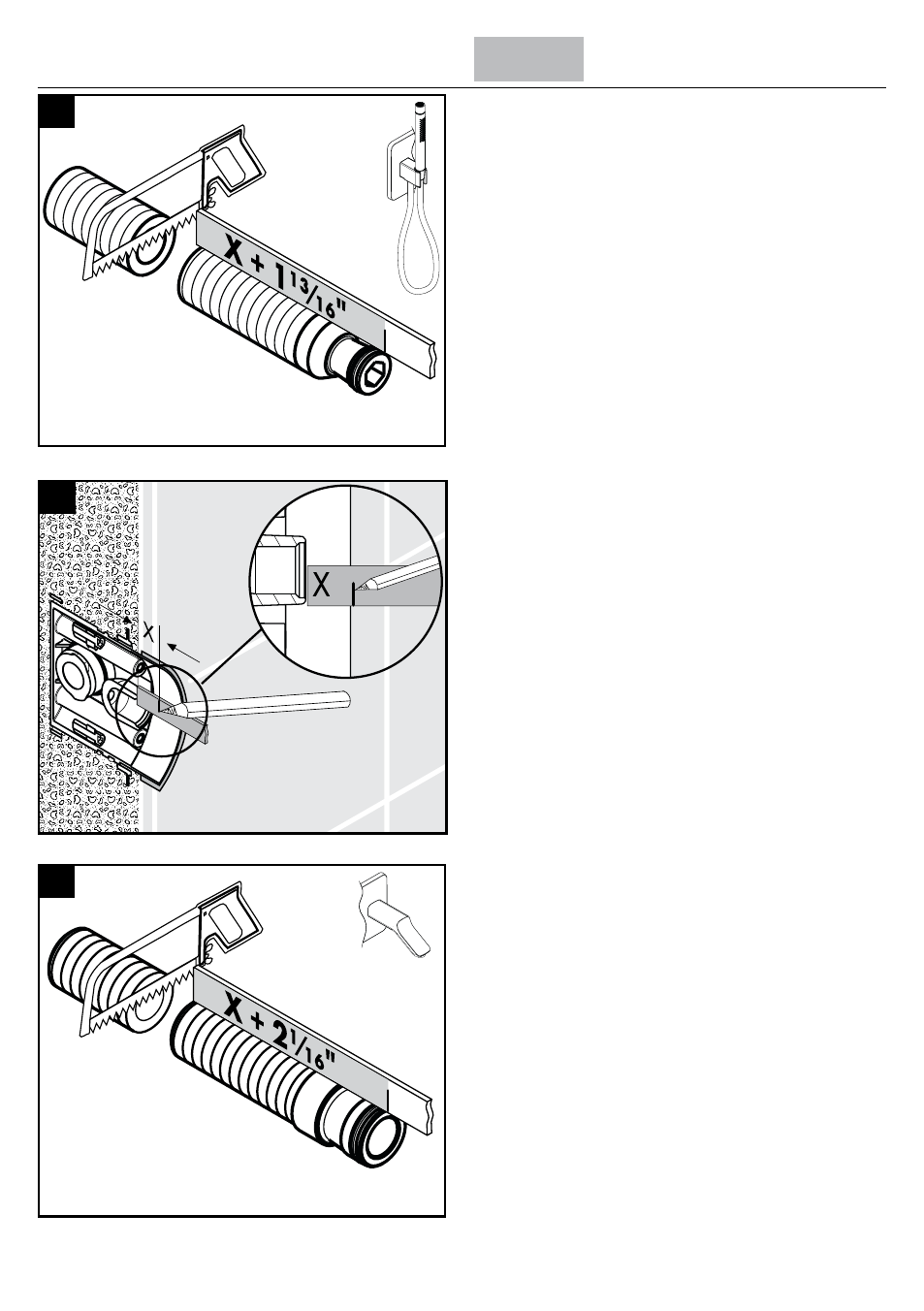

Cut the shower nipple so that it is X + 1¹³⁄₁₆" long.

Measure the distance between the front plaster shield
and the front of the spout port ("X").

Cut the spout nipple so that it is X + ¹⁄₁₆" long.

8

X + 2¹⁄₁₆"

9

!

7

X + 1¹³⁄₁₆"

!
