98/9947 & 98/9947-F WDC (WOOD DOOR CONCEALED)
VERTICAL RODS AND LATCHES
Item No. Quantity Part No. Description Finish
1* 1 050493 98/9947 Bottom Latch Kit
2* 1 050492 98/9947 Top Latch Kit
3* 2 109324 98/9947 Latch Mtg Bracket
4 6 090059 Latch Bracket Mtg Screw (Latch)
5 1 900856 WDC Auxiliary Mtg. Package
6 2 090063 Retaining Ring (Pkg of 10)
7 2 090064 Latch Link Pin (Pkg of 10)
8 1 050582 WDC Adjustable Top Rod 6’8” - 8’4” Door
9 1 050583 WDC Adjustable Bottom Rod Kit
10 2 090071 98/9947 Rod Connecting Screw (Pkg of 2)
10 2 090072 98/9948 Rod Connecting Screw (Pkg of 2)
11 1 106222 Ratchet Release Pkg X
12 1 090070 Ratchet Release Screw (Pkg of 2)
13 2 109811 98/9947/48 Rod Adjust Pkg
13 1 900898 LBR Adjusting Screw Pkg
14 1 090065 Bolt Return Spring (Pkg of 10)
15 1 090066 Top Latch Compression Spring (Pkg of 10)
16 1 090069 Ratchet Lever Spring (Pkg of 2)
17 1 090062 Btm Latch Case Spirol Pin (Pkg of 10)
18 1 050088 98/9947WDC Scalp Plate X
19 1 970978 98/9947 Ratchet Release Spacer
X in “Finish” column designates finished items; finish must be specified when ordering.
*Each latch kit (item 1-2) includes only one latch mtg bracket (item 3). All WDC devices
require only 1 mounting bracket per latch.
15
16
17
17

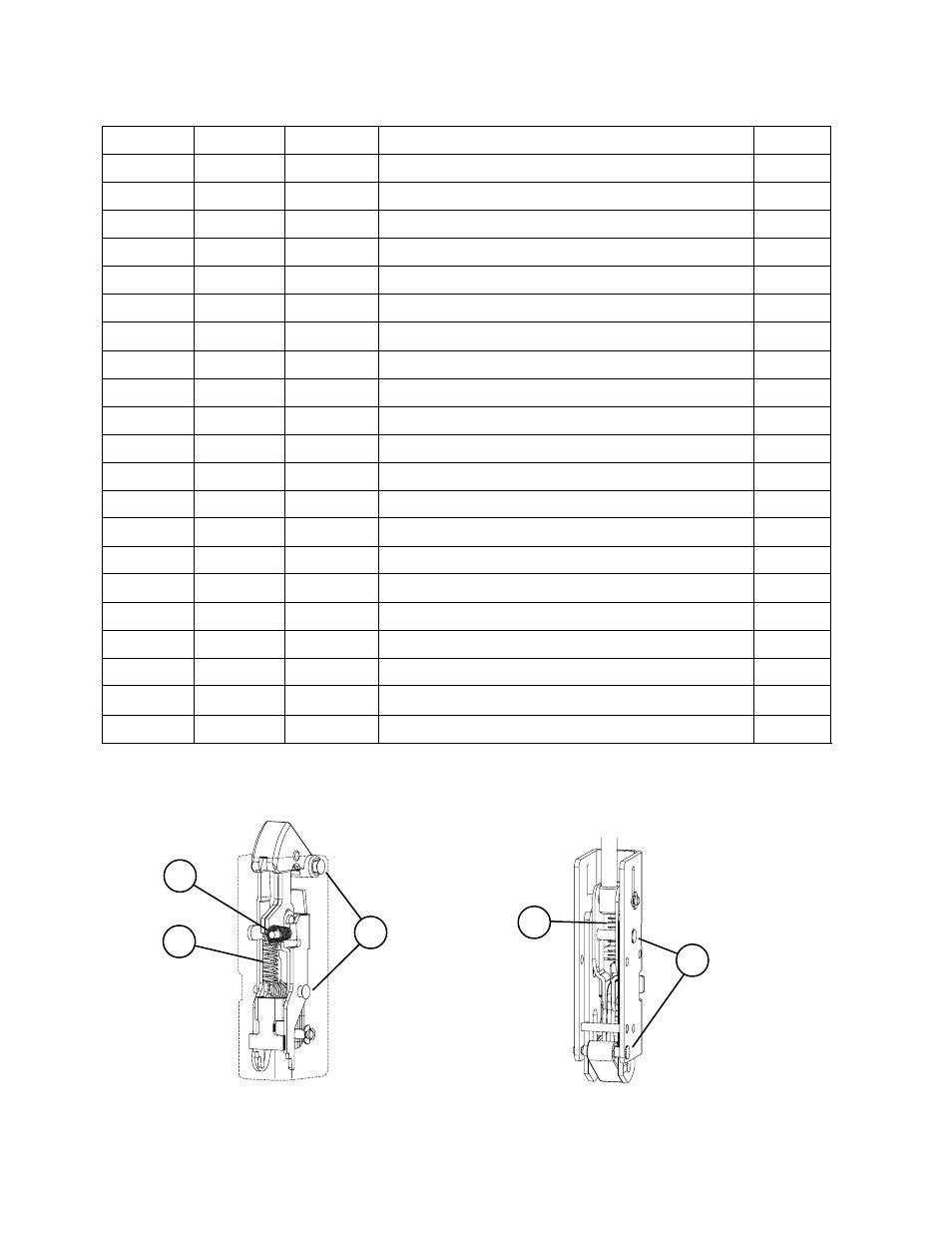

98/9947 Top Latch 98/9947 Bottom Latch
14
