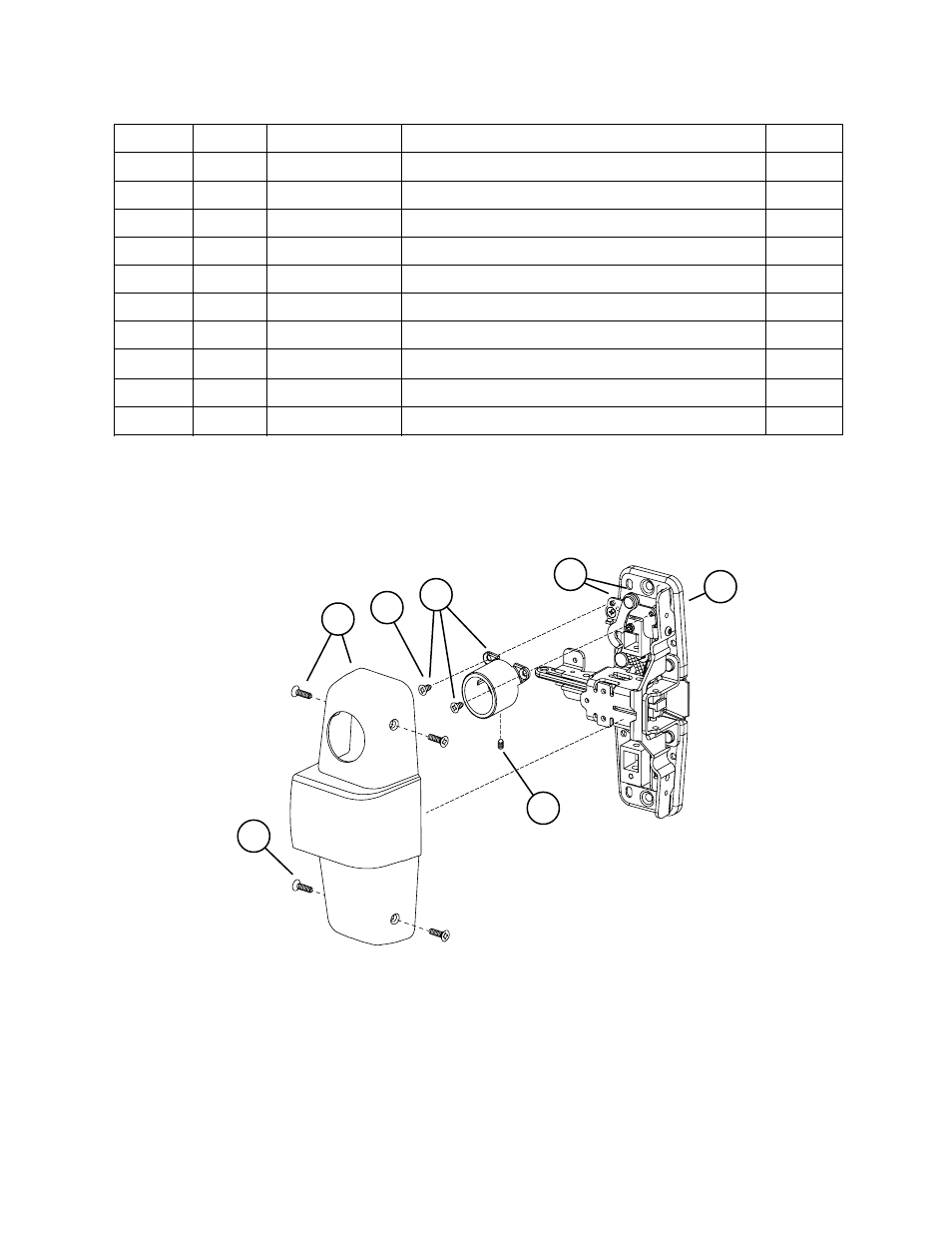

CX-CD/SD98/9947 SERIES OPTION

Item No. Quantity

Part No.

Description

Finish

1*

1

050552

SD98/9947 RHR Center Case Kit Less Cvr

1*

1

050553

SD98/9947 LHR Center Case Kit Less Cvr

2

1

050562

SD98/9947 RHR Center Case Cover Kit

X

2

1

050563

SD98/9947 LHR Center Case Cover Kit

X

3

1

112409

CD-CX/SD Cylinder Dog Housing

4

1

112455

CX-CD/SD Cylinder Dog Bracket Kit RHR

4

1

112456

CX-CD/SD Cylinder Dog Bracket Kit LHR

5

4

900892

Center Case Cover Screws

X

6

2

PkgServ.1018 8-32 x 1/4” UFPHMS (Pkg of 20)

7

1

964240

Bracket Set Screw

*Parts shown are for the CX-CD/SD option. For other available center case parts refer
to page 11.

3

7
