PM989947_B

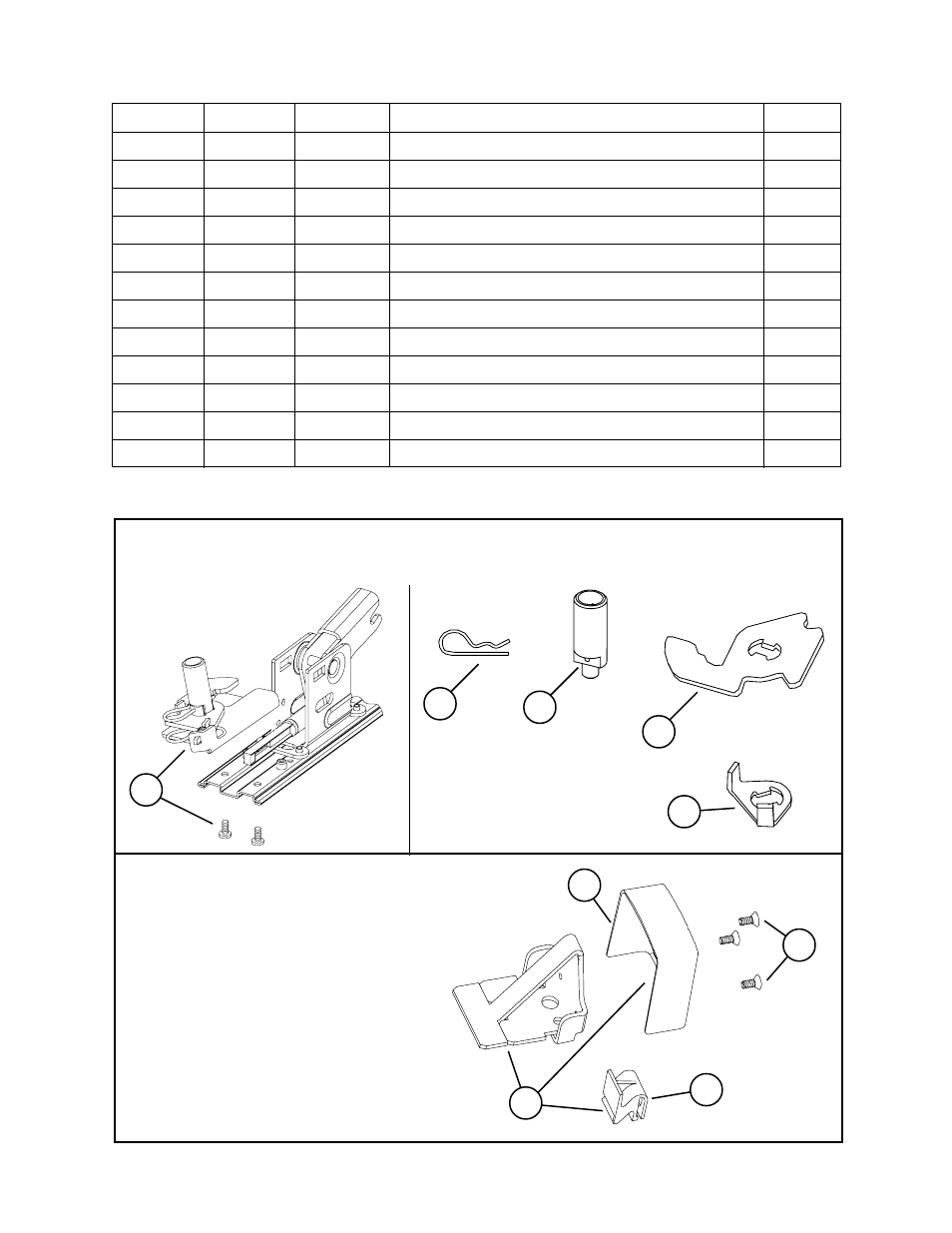

98/9947 SERIES SERVICE REPLACEMENT ITEMS
Item No. Quantity Part No. Description Finish
1 1 050153 Old Style Hex Dogging Replacement Kit
2 1 963909 #22 Hitch Pin - Hex/CD Dogging Old Style
3 1 968112 Old Style Hex Dog Shaft
4 1 969941 Old Style Dogging Hook
5 1 968116 Old Style CD Actuator Arm
6 1 900905 Old Style End Cap and Bracket Assembly X
7 1 970548 Old Style Cover Plate Stop - End Cap
8 1 900901 Old Style End Cap Screw Package X
9 1 971082 Old Style 98/99 End Cap - Stainless Steel X
9 1 971083 Old Style 98/99 End Cap - Brass X
9 1 971084 Old Style 98/99 End Cap - Bronze X
9 1 971085 Old Style 98/99 End Cap - Aluminum X
X in “Finish” column designates finished items; finish must be specified when ordering.
1
2 3
4
5
OLD STYLE DOGGING PARTS
(FOR DEVICES SHIPPED BEFORE AUGUST 1997)
OLD STYLE END CAP PARTS
(FOR DEVICES SHIPPED
BEFORE JANUARY 2002)
Note: Newer style end cap kit
shown on pages 4-5. Newer style end
cap kit can be used on devices
manufactured before January 2002,
but mechanism case and cover plate
on hinge stile must have a square cut
and a clean edge.
7
9
8
6
