Page 11 of 20
PM989947_B
Item No. Quantity Part No. Description Finish
1 2 090107 Retaining Ring (Pkg of 10)
2 2 090079 Latch Bolt Pin (Pkg of 10)
3 1 090074 NL Drive Screw (Pkg of 10)
4 1 050565 Center Case Reinforcing Bracket

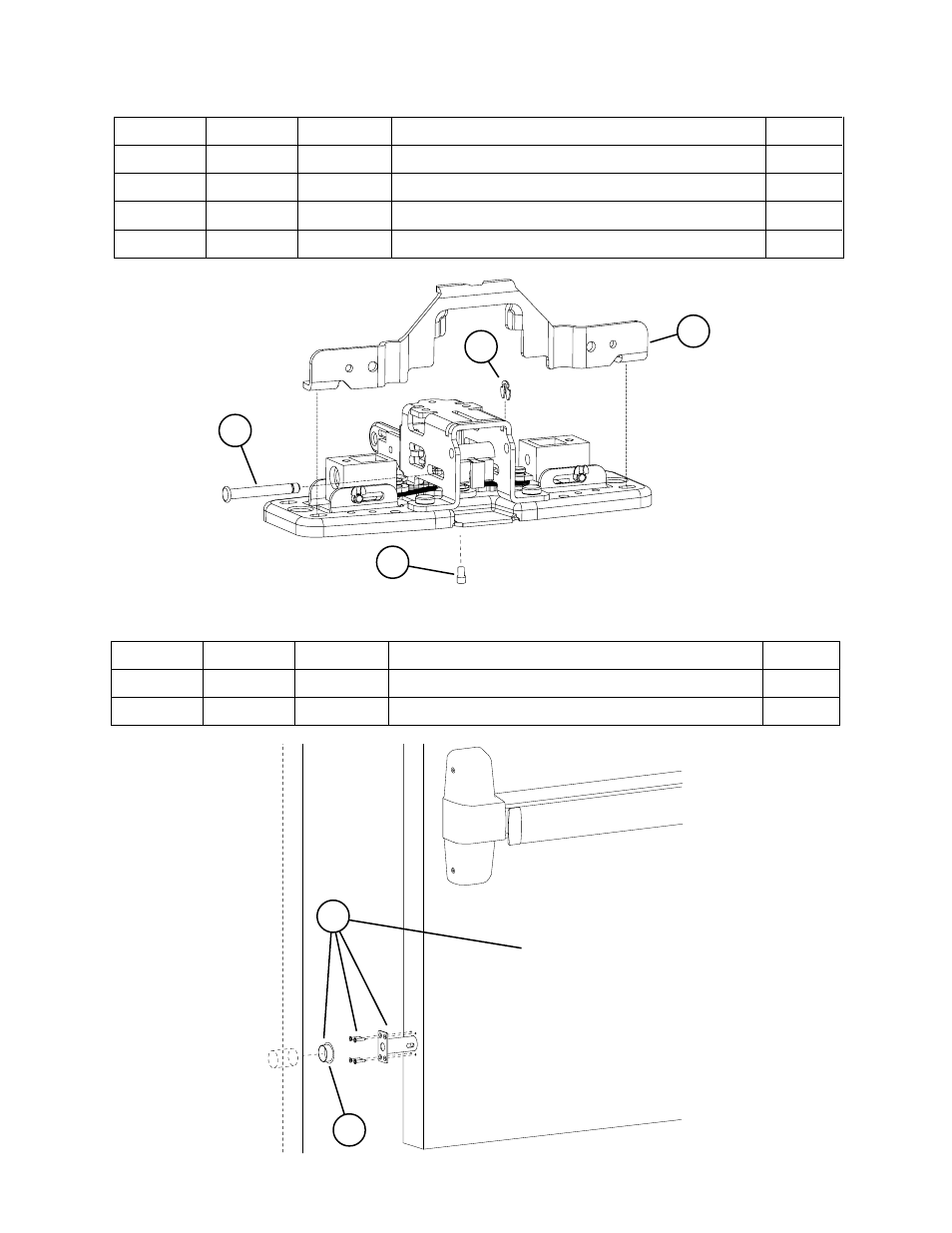

98/9947 DEVICE CENTER CASE ASSEMBLY
4
2
1
3
98/9947-F LBR (LESS BOTTOM ROD) FIRE LATCH KIT
Item No. Quantity Part No. Description Finish
1 1 050171 LBR Fire Latch/Strike kit
2 1 050509 LBR Fire Strike Plug
1
Note: 499F Strike (not shown)
is included with P/N 050171
2
