Page 6
6

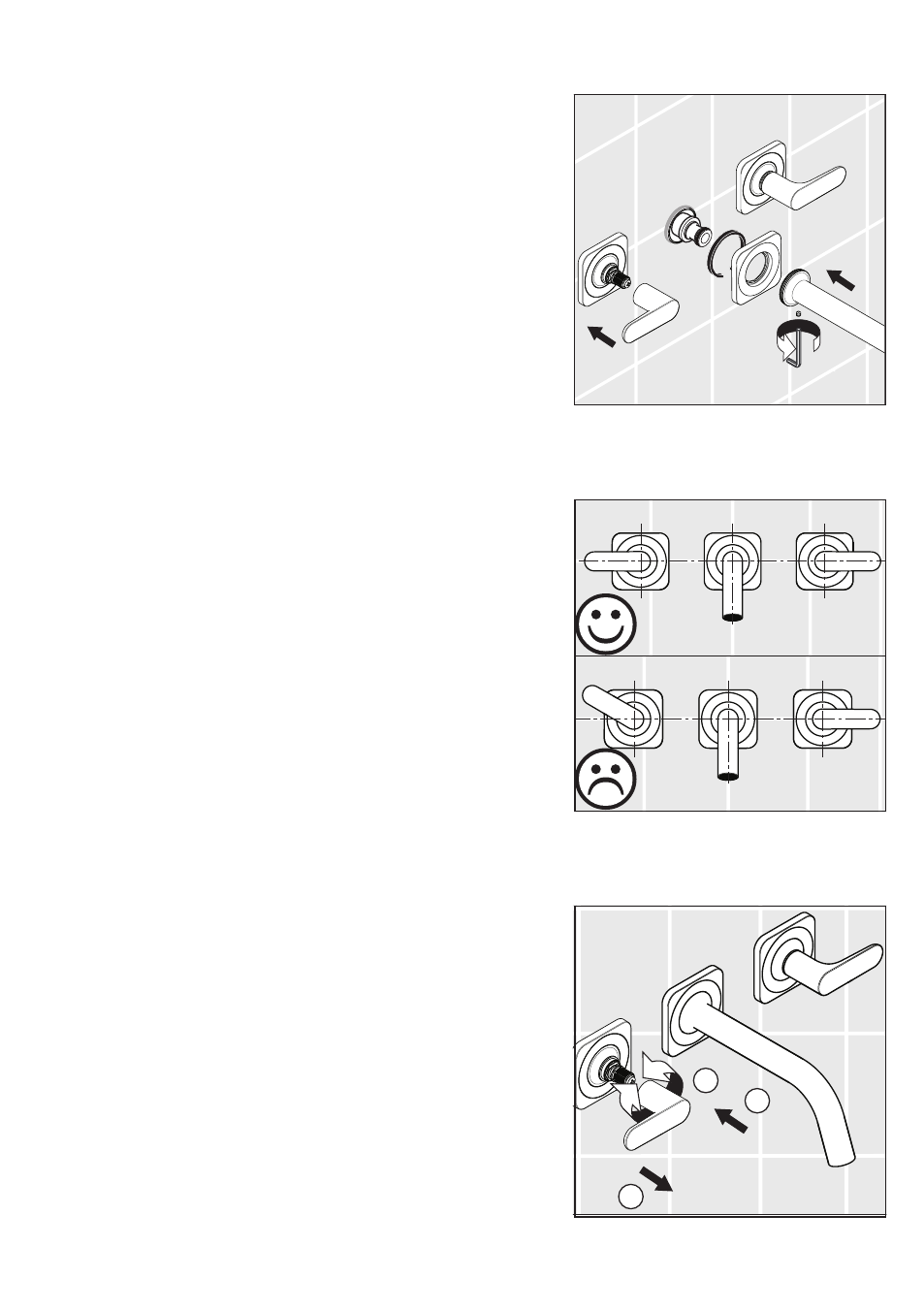

Push the spout escutcheon against the wall. Push the
spout over the connector. Tighten the screw with a mm
Allen wrench.
Push the handles over the snap connectors.
In the off position, the handles should be horizontal.
If one of the handles is not horizontal, remove it (1), turn
it slightly (), and reinstall it (3).
1
2
3
