Factory Direct Hardware Hansgrohe 04170 Solaris E User Manual
Page 8
8

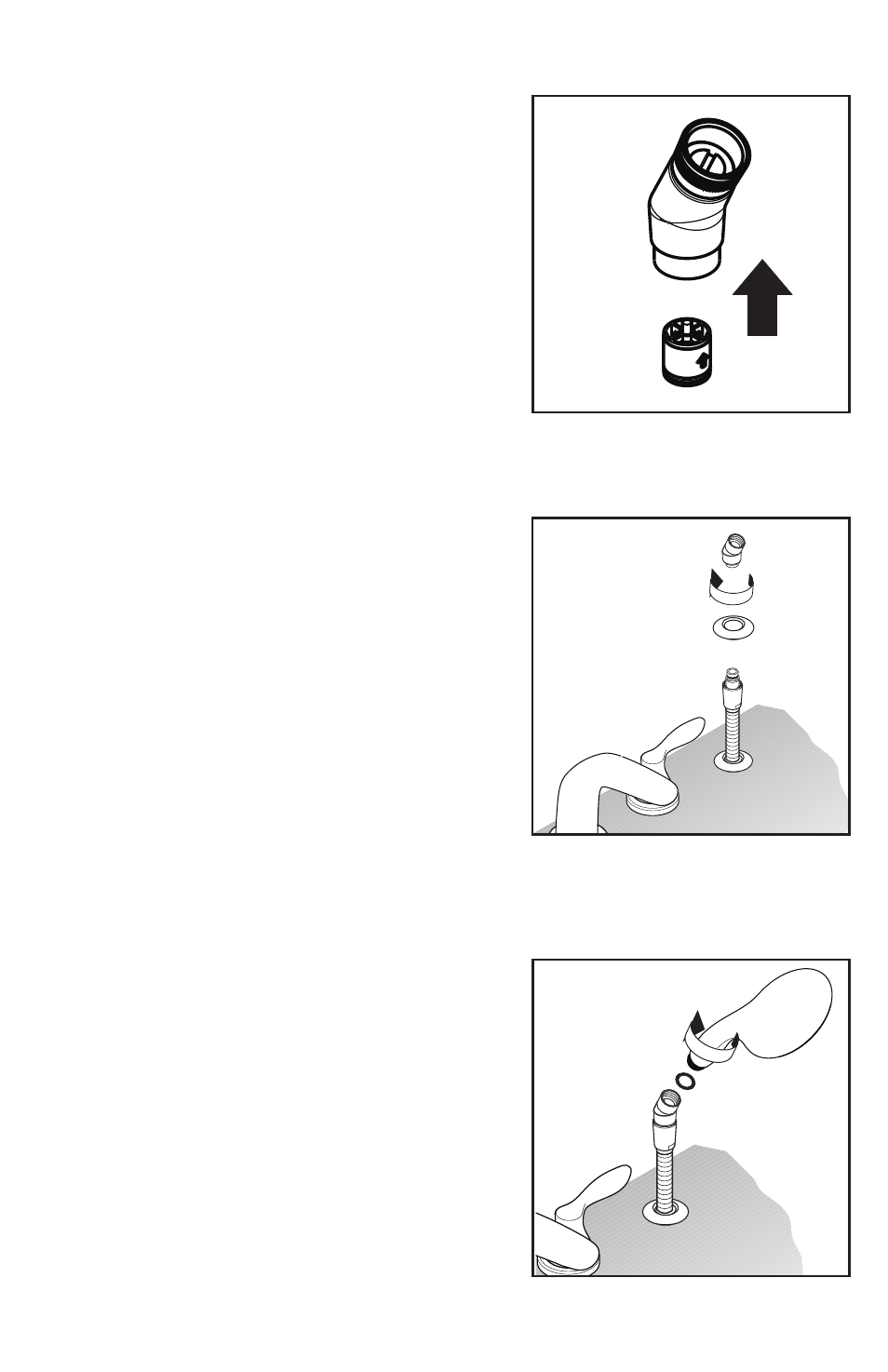

Install the Handshower (4-hole models
only)
Install the check valve in the elbow, with the arrow
pointing in the direction of the water flow.
Remove the plaster shield from the handshower
holder. Pull out on the handshower hose.
Install the handshower holder escutcheon.
Install the elbow.
Place the screen washer in the elbow.
Install the handshower and
guide it into the holder.
