Factory Direct Hardware Hansgrohe 04170 Solaris E User Manual
Page 7
7

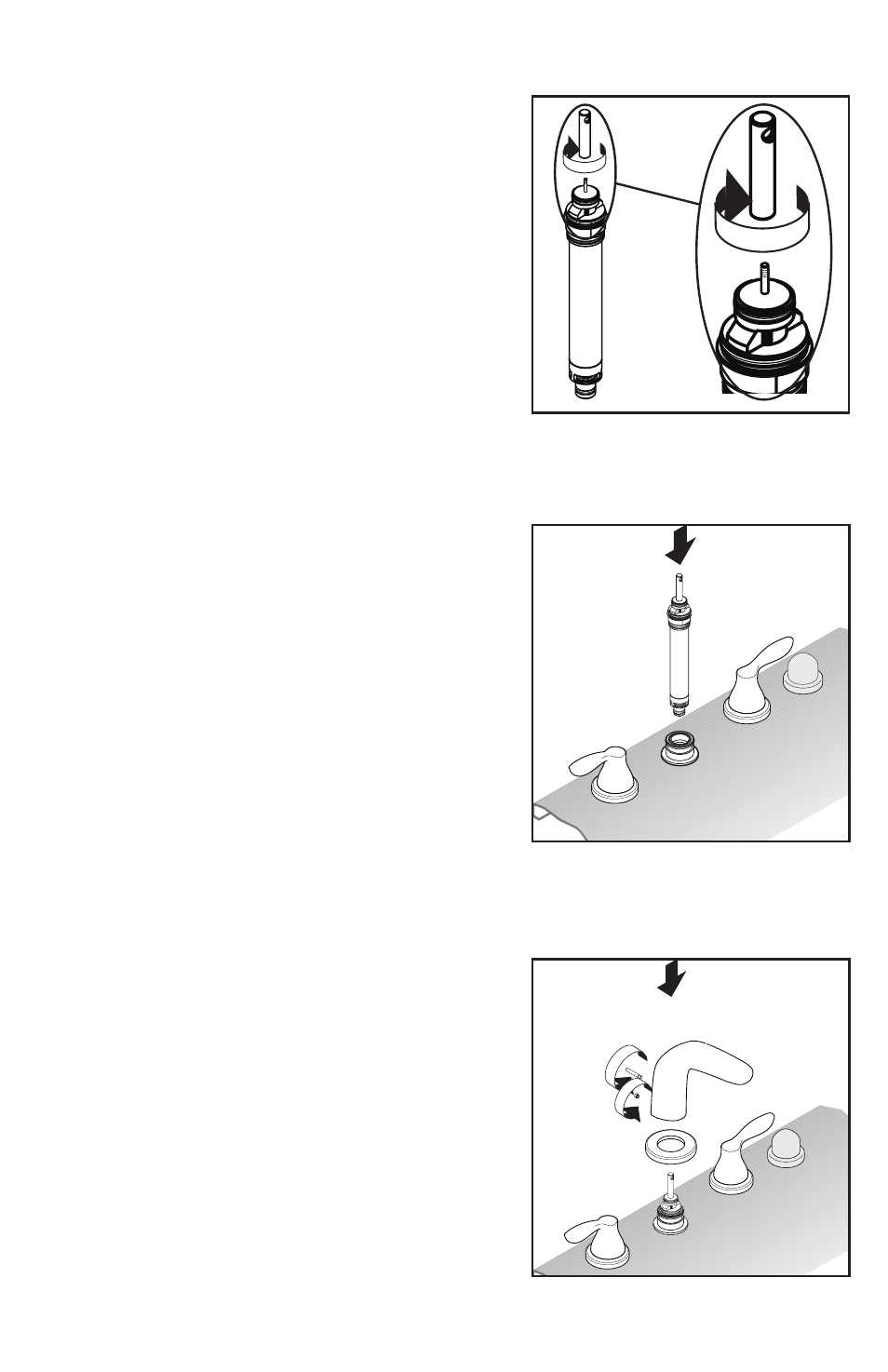

Install the pin on the diverter.
Install the spout escutcheon.
Firmly press the spout over the tee and diverter.
Tighten the screw with the included 3 mm Allen
wrench.
CAUTION: do not overtighten the screw or the o-
rings on the diverter will deform, which will cause
a leak.
Install the pull rod. The threaded end of the pull
rod must go into the hole in the pin.
Press the diverter firmly into the spout tee until it is
fully seated.
Turn the pin so that the hole faces the rear of the
spout.
