5
4
5
6

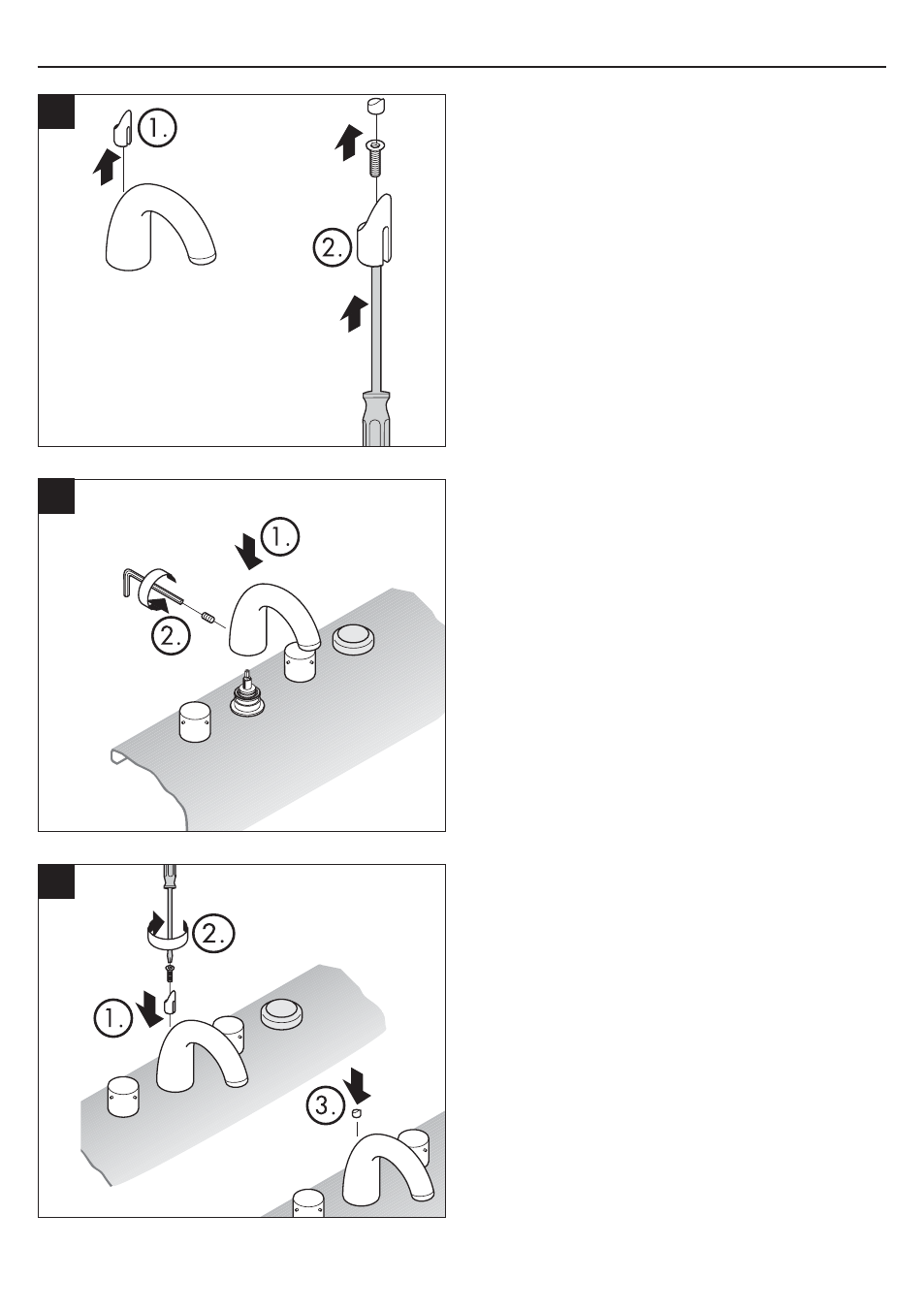

• Remove the diverter knob from the
spout (1). Use a small screwdriver to
push the screw and screw cover from
the diverter knob (2).
• Install the spout (1) to the spout
adapter over the diverter. Tighten the
set screw (2) with the enclosed 3 mm
allen wrench.
• Install the diverter knob (1) and screw
(2), using a small screwdriver (not
included). The screw will engage the
female fitting on the diverter stem.
• Install the gray screw cover (3).
