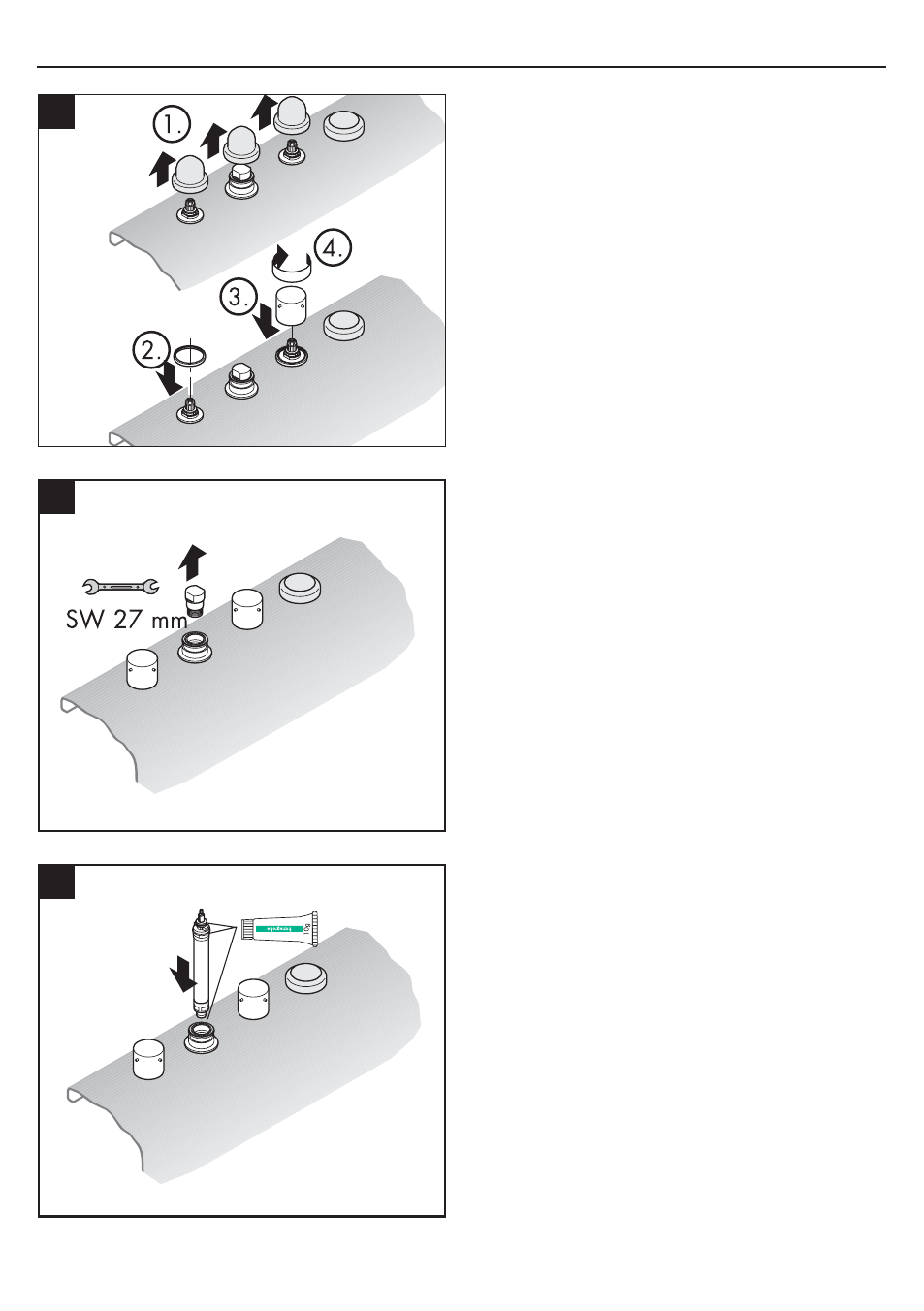

Installation Instructions
•
Remove the plaster guards (1) from the
valve corners and the spout adapter.
•
Install the glide rings (2)
•
Install the handles (3) by pressing
firmly over the handle snap
connectors.
•
Turn the handles clockwise to make
sure that the valves are in the "off"
position.
CAUTION: Do not install the handles
unless the snap connectors are screwed
firmly to the stems.
•
Remove the plug from the spout
adapter using a 27 mm wrench.
•
Lubricate the o-rings on the diverter
with the enclosed lubricant. Install the
diverter by pushing firmly straight
down into the spout adapter.
•
CAUTION: Do not remove the female
fitting and the white plastic clip from
the top of the diverter assembly!
These parts are necessary for the
installation of the diverter knob.
