Starck 4-Hole Roman Tub Trim
10444XX1
10454XX1
10444XX1
10454XX1
Installation Considerations
•
This trim kit must be used with rough-in
13444-181. The handshower must be
used.
•
Backflow protection is provided by a
check valve in the handshower
connection hose. Additionally, the
diverter will automatically spring back to
the "spout" position if a backflow
condition exists.
Product Specifications
Recommended operating pressure
45 - 80 psi
Recommended hot water temperature
120
o
- 140
o
F*
Flow rate - handshower
2.5 gpm
Flow rate - valves
approx. 6 gpm each

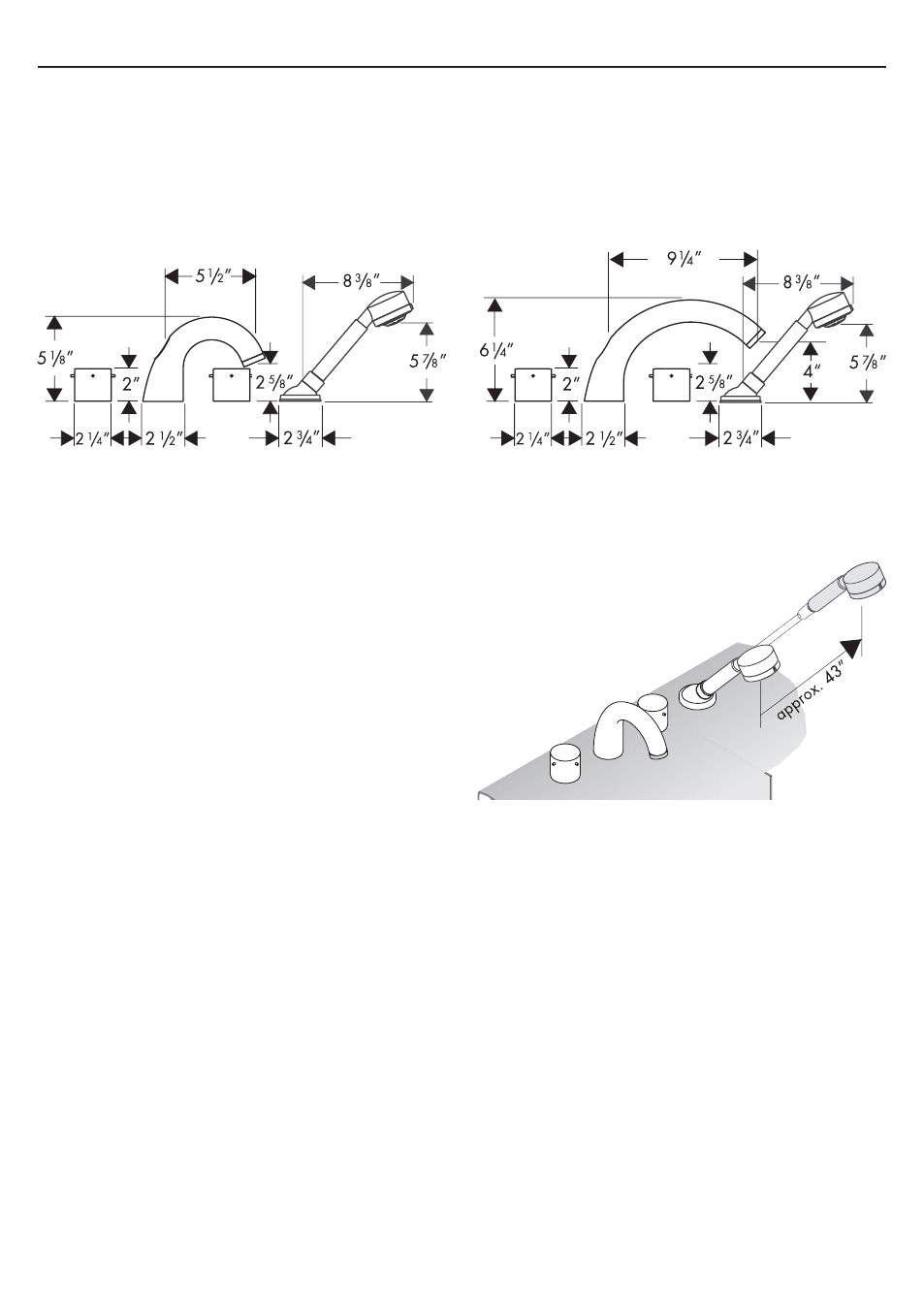

Hole sizes - see template included with rough-in for placement
Valves
1 3/16"
Spout
1 3/8"
Spout Adapter Pin
3/16"
Handshower
2"
Maximum mounting surface thickness
2"
90
o
Ceramic cartridge operation.
* Some governing agencies require that the water heater be set to 120o F or less. Please know and follow all applicable local codes when
setting the temperature on the water heater.
