Page 9 of 14 PM3327A3527A_a
Item No. Quantity Part No. Description Finish
1 1 090043 Dogging adapter (Pkg of 2)
2 1 090042 Dogging adapter spring (Pkg of 2)
3 1 090041 Dogging spring (Pkg of 2)
4 1 090040 Hex dogging shaft (Pkg of 2)
5 1 090044 Dogging hook (Pkg of 2)
6 1 090039 Latch return spring (Pkg of 10)
7 4 090038 Rubber bumper (Pkg of 4)
8 1 050491 Shock absorber
7
6
4
5
1
2
3

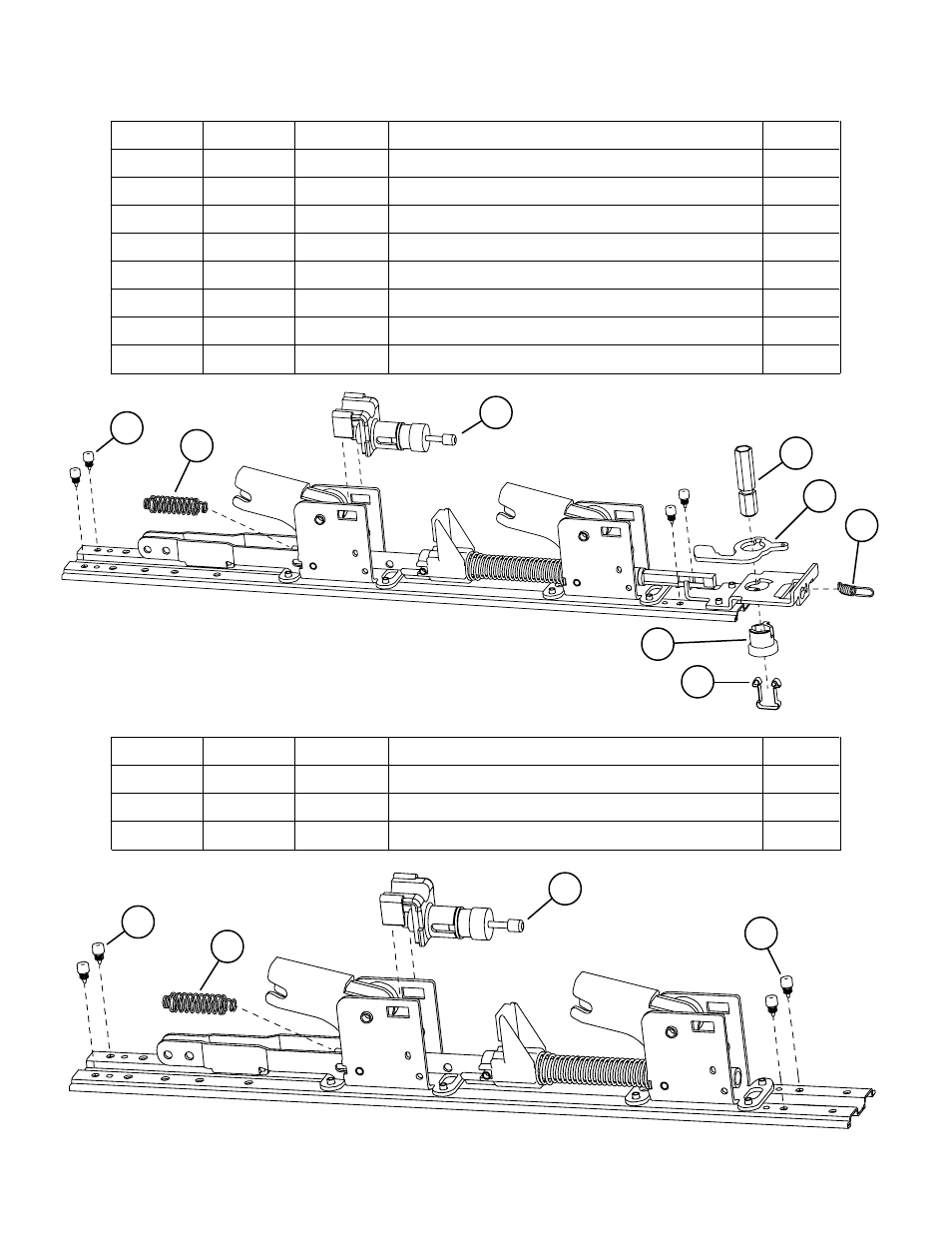

3327A/3527A PANIC DEVICE BASEPLATE ASSEMBLY
1
2
1
Item No. Quantity Part No. Description Finish
1 4 090038 Rubber bumper (Pkg of 4)
2 1 090039 Latch return spring (Pkg of 10)
3 1 050491 Shock absorber
33/3527A-F FIRE DEVICE BASEPLATE ASSEMBLY
8
3
