Page 8

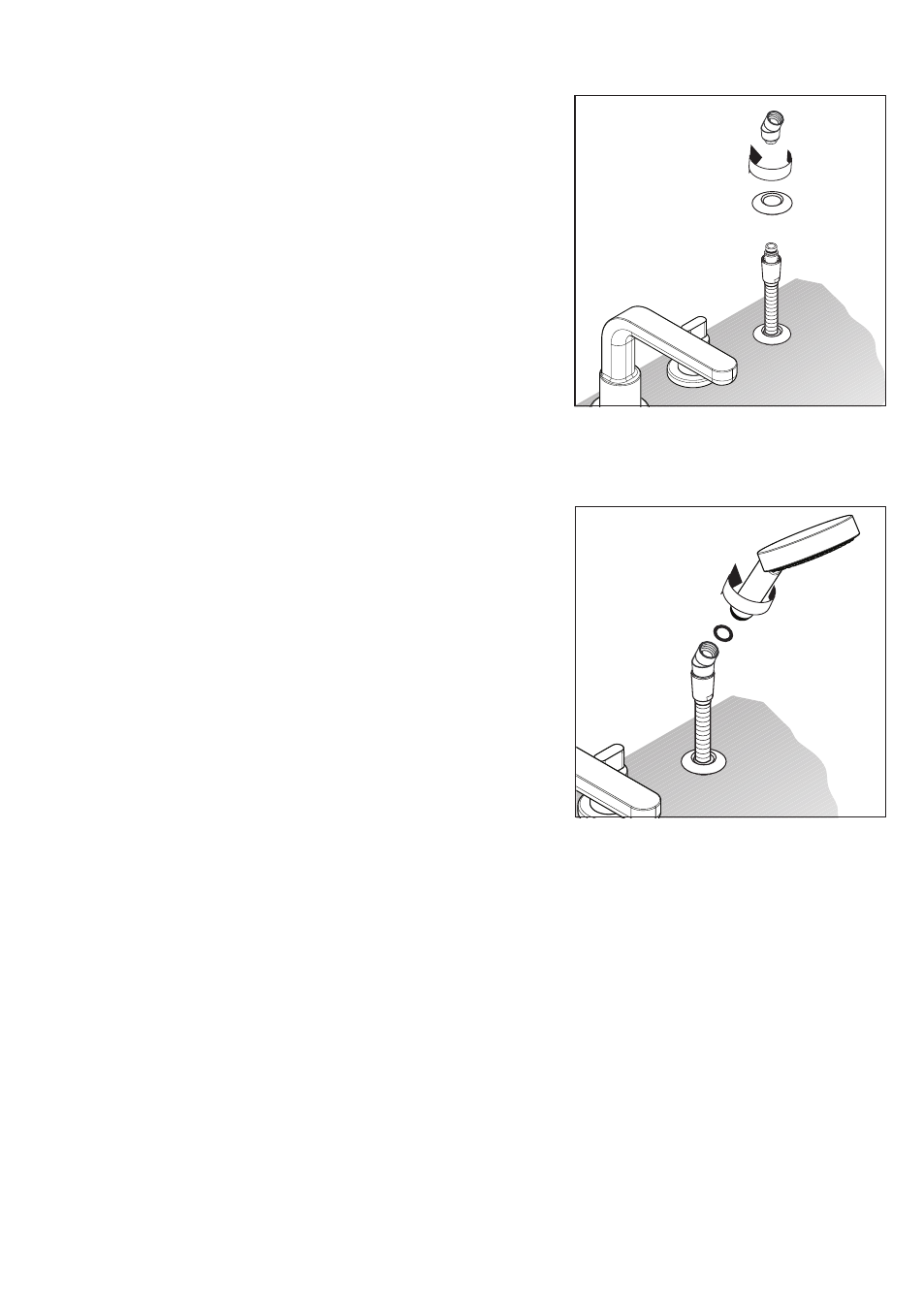

Install the Handshower Holder Escutcheon and
Handshower (4-Hole version only)
Remove the plaster shield from the handshower holder.
Pull out on the handshower hose.
Screw the handshower holder escutcheon into place.
Install the elbow.
Place a black rubber hose washer in the elbow. Screw
the handshower into the elbow.
Guide the handshower into the holder.
