Factory Direct Hardware Hansgrohe 32314 Talis S User Manual
Page 6
6

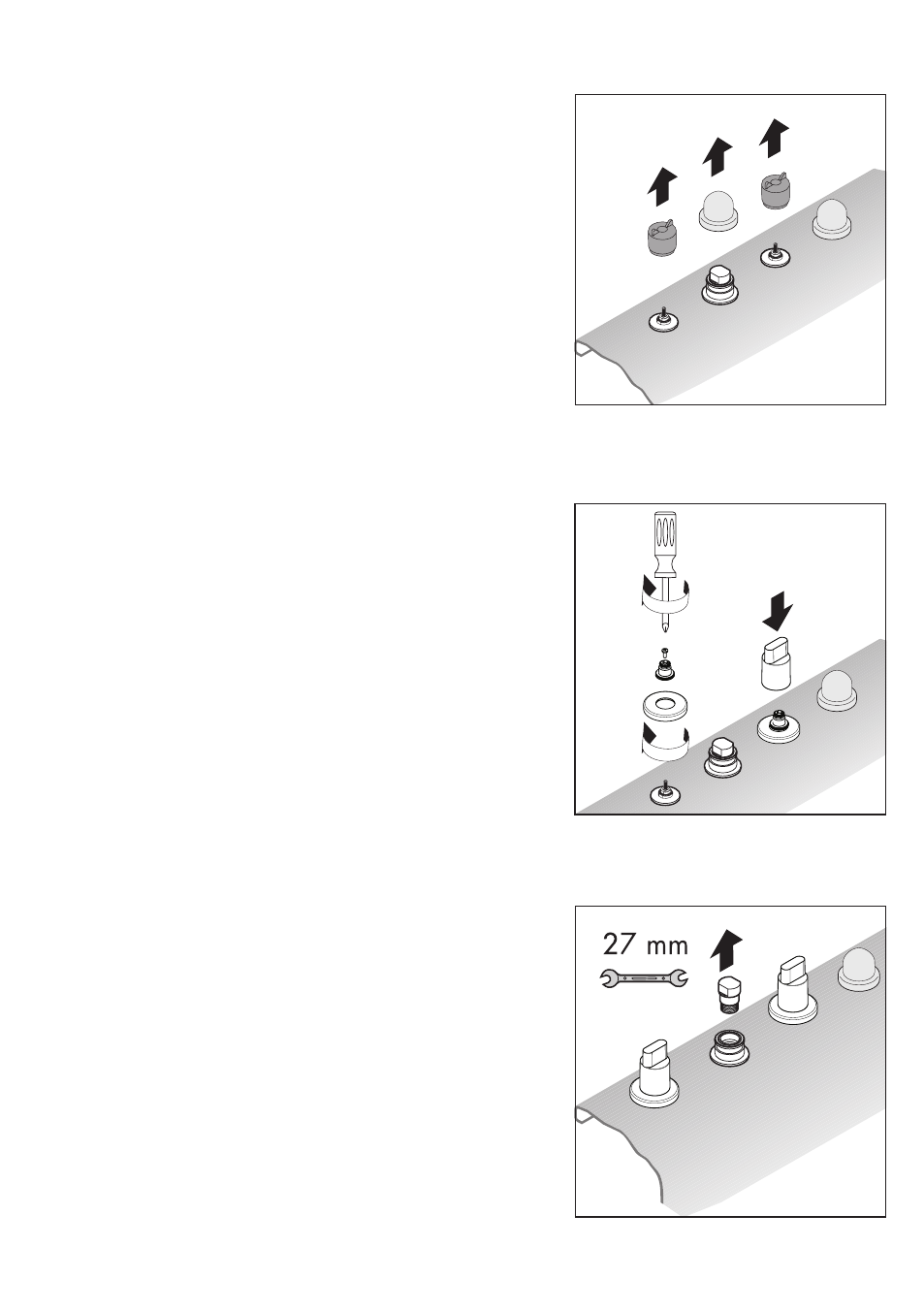

Installation - 4-Hole Trim Kits
Install the Handles
Remove the plaster shields from the hot and cold valves
and the spout tee.
Assemble the Diverter and Spout
Remove the brass plug from the tee.
Install the escutcheons.
Install the white plastic snap connectors and screws.
Push the handle down firmly over the snap connector.
