Page 14 of 16 PM8827_A

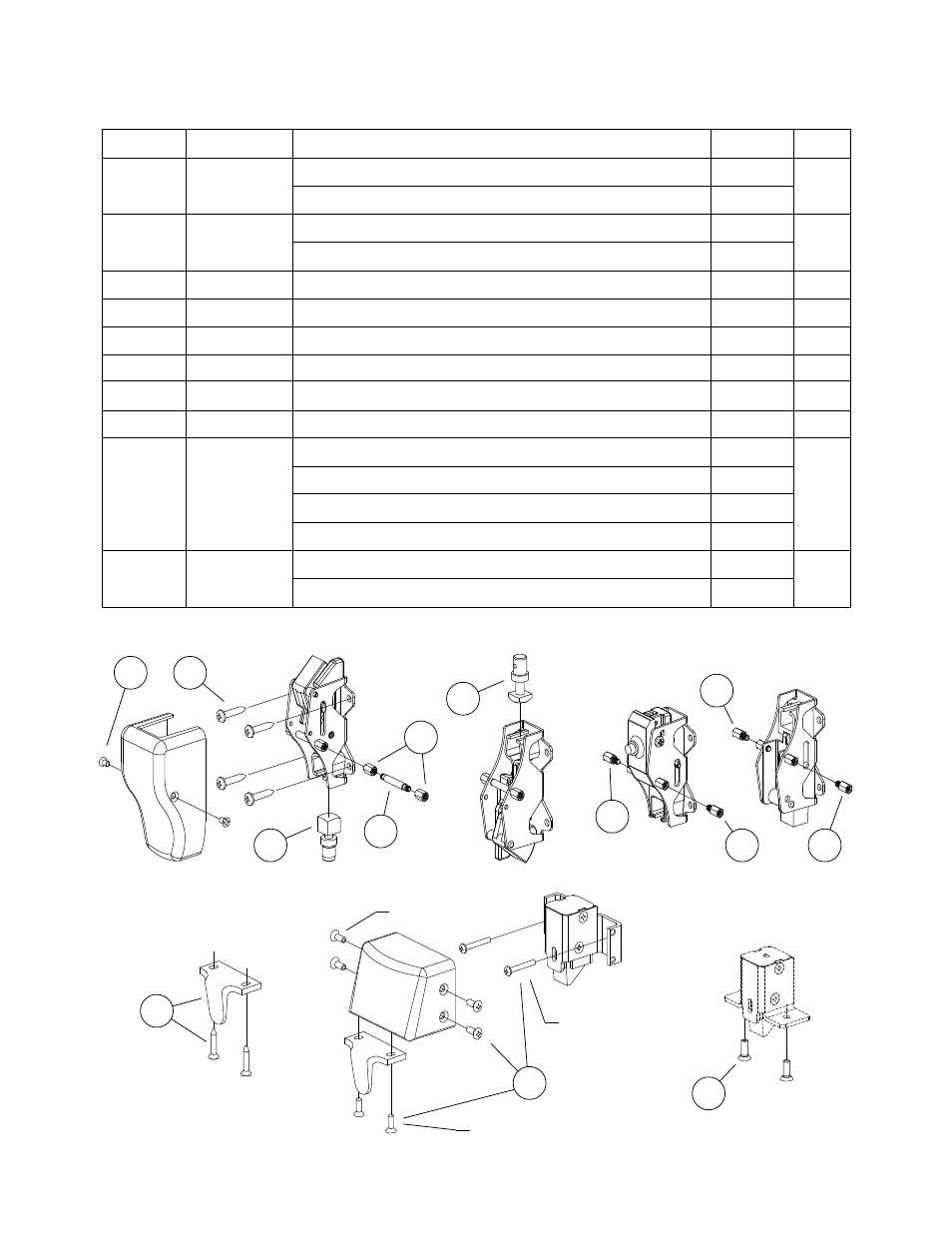

LATCH PARTS AND SCREW PACKAGES
5
4
6
3 7 7
7
7
8
2
10
1
9
Item No. Part No. Description Quantity Finish
1 900850 8827 Latch Case Cover Screw Package X
8-32 x 1/4” UFPHMS 2
2 900501 8827 Latch Case Mounting Package
10-12 x 10-24 x 1” BPHCS 4
3 050279 8827 LR Top Rod Connector 1
4 050328 8827 Chassis Tie Rod 1
5 050277 8827 Latch Special Chassis Nut 1
6 050327 8827 LR Bottom Rod Connector 1
7 050478 8827-F Special Chassis Hex Stud 1
8 107765 8827-F Plunger Release Bracket 1 X
9 900852 8827-F Flush Transom Latch Screw Pkg. X
10-24 x 1/2” FPHMS 2
10-24 x 3/8” OPHMS 4
12-24 x 3/4” BSMHS 2
10 900502 8827/47-F Soffit Latch Mounting Package
12-24 x 1/2” UFPHMS 2
X in “Finish” column designates finished item; specify finish when ordering.
12-24 x 3/4”
BSHMS
10-24 x 3/8” OPHMS
10-24 x 1/2” FPHMS
