Rear panel operations
6

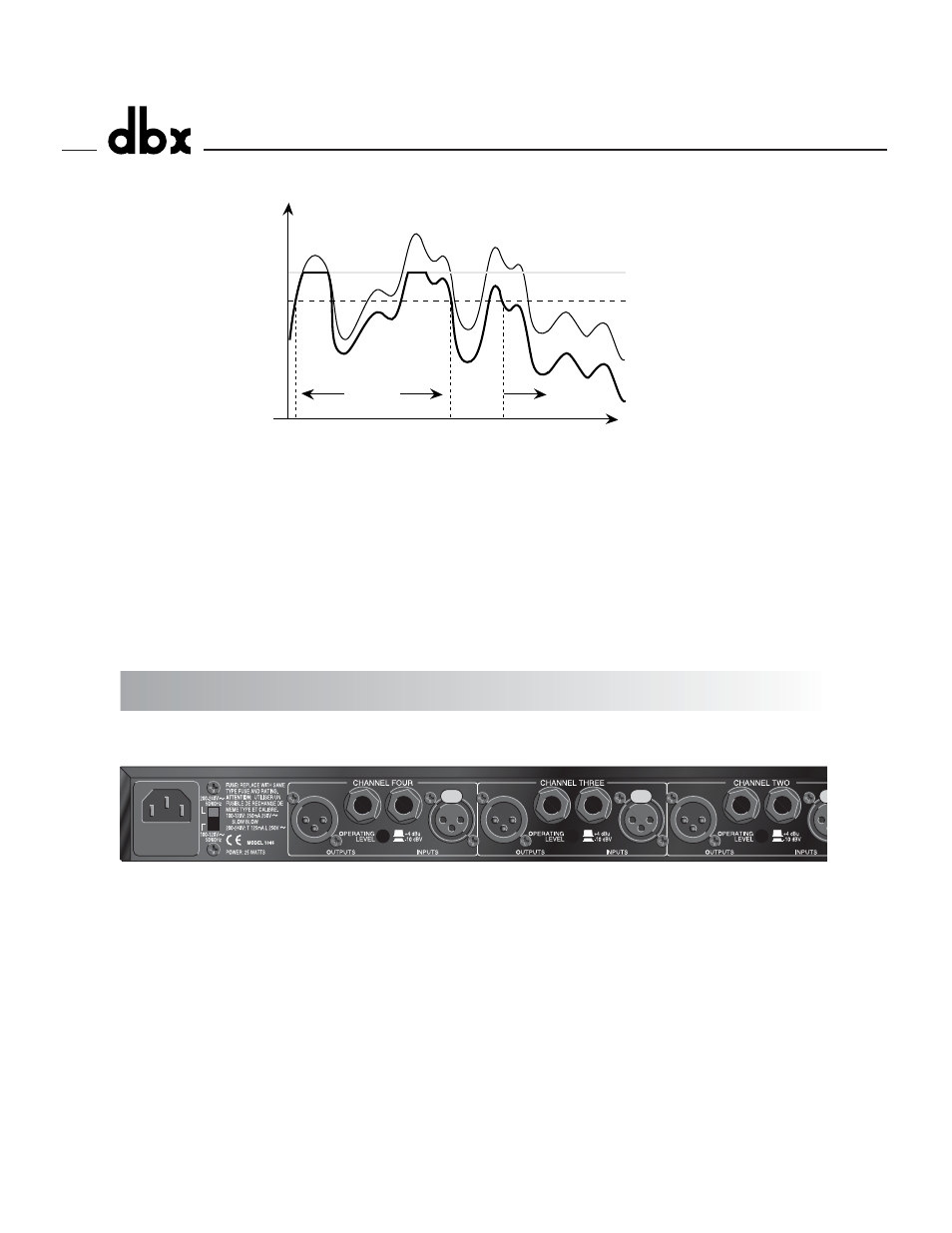

Figure 3: Protective Action of the PeakStopPlus™ Limiter
Stereo Couple Switch - These switches change the 1046 from four independent compressors into two
stereo compressors. In stereo mode, Channel 1 is the master and Channel 2 is its slave, and Channel 3
is the master and channel 4 is its slave. Each of the Channel 2 and 4 controls and switch functions will
be overriden and controlled by the Channel 1 and 3 controls and switches, respectively, except for the
I/O Meter and Bypass switches. Also, Channel 2’s and 4’s Compressor Threshold, and PeakStopPlus™
Threshold meters will be disabled, while these slave channels’ Gain Reduction meters will indicate the
amount of gain reduction occurring, as on their masters’ Gain Reduction Meters. All 4 channels have
equal precedence as far as signal processing is concerned. The dbx 1046 uses True RMS Power
Summing™, an extremely accurate and musical way to combine detector outputs in a stereo situation.
The switch will light to indicate that the 1046 is in the Stereo Couple mode.
Rear Panel
AC Power Receptacle - Use the supplied AC cable to connect the unit to AC power. The AC receptacle
includes an integral pull-out fuse drawer which contains two fuses; the active fuse and a spare fuse.
Replace the fuse with the same type and rating only.as indicated on the rear panel.
Audio Inputs - Each channel features both XLR and 1/4” TRS electronically balanced inputs. Inputs may
be used in a balanced or unbalanced configuration. Note that the XLR and 1/4’ inputs may NOT be used
simultaneously.
Rear Panel Operations
Time
Output Signal
Input Signal
Output Signal
Intelligent Predictive Limiting™
Release Time Attack Time
}
2 dB Typically
