Torque tool:
A torque tool should be used to apply the proper torque to the compression screw. There are
adjustable and factory preset torque tools currently available that may be purchased separately.
•
TL-TORQUEDRIVER-04 (adjustable, 20-100 inch oz range)
•
TL-TORQUEDRIVER-05 (factory preset, 8 inch oz)
•
TL-TORQUEDRIVER-06 (factory preset, 16 inch oz)
They will come with a 5mm hex insert (compatible with compression screw). For other inserts,
please call Ironwood Tech Support @1-800-404-0204.
Vacuum pen:
A vacuum pen is recommended for insertion/extraction of ICs having a body size of 8x8mm or
larger. Figure 5 shows a typical vacuum pen. This part, TL-
VACUUMPEN-01, may be purchased separately.
Tweezers:
A small tweezers is recommended for insertion/extraction of
ICs having a body size of 7x7mm or smaller. Figure 6 shows a
typical small tweezers with a GHz QFN socket.
Elastomer cleaning procedure:
Elastomer cleaning requirements vary with the customer
application and are dependent on variables such as contact
force, QFN package and environment it is used. A light cleaning is recommended every 25-50
cycles. A thorough cleaning is recommended every 100 cycles. These recommendations are
suggestions only, and should be increased or decreased based on observation.
Required Tools: Scotch™ Magic™ Transparent tape. (For more thorough cleaning technique use
alcohol, De-Ionized (DI) water, a stiff nylon brush, and clean dry shop air.)
Elastomer can be quickly cleaned of dust and debris with a piece of transparent tape approximately
2 inches long. (Scotch brand has been shown to be effective, but others may work as well.) The
127.00mm
[5.000"]
12.70mm [0.500"]

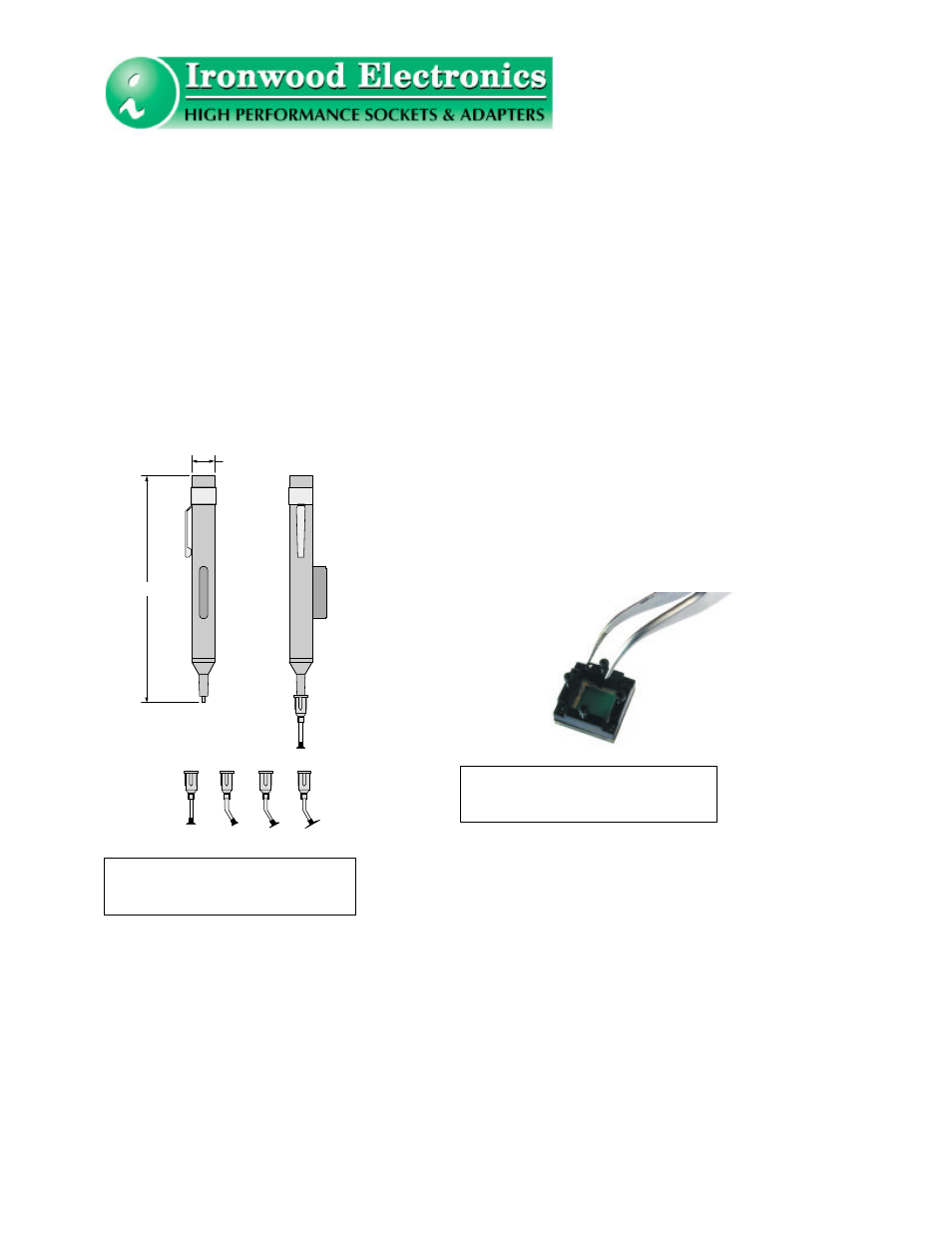

Figure 5: Vacuum Pen with
Attachments
Figure 6: Tweezers with SG-QFN
socket
