COOLER LOCATION
This transmission cooler was designed to mount on the vehicles frame rail. When selecting the best location for your vehicle,
always consider a location that will deliver the maximum airflow to the cooler.
MOUNTING
1.
2.
3.
Holding the cooler in place use a marker to identify the two mounting locations.
Using a drill and 9/32” drill bit, drill the two mounting holes in the frame.
Using the Bolts, Washers & Lock Nuts provided, install cooler onto the frame.
KIT CONTENTS
Derale Performance, Los Angeles, CA
800.421.6288
www.derale.com
Warning: Installation of accessories should only be undertaken by those with mechanical knowledge and are familiar with working on
vehicles. Always use eye protection (goggles, safety glasses or shield). Park the vehicle in a well lit area, on level ground and apply the
parking brake. Only work on a cold vehicle that has been sitting overnight, failure to do so will result in severe burns and injury. Before starting
the vehicle, make sure no tools or any other items are left under hood that could interfere with or be drawn into moving parts of the engine.
Failure to follow instructions can lead to severe damage and personal injury.
INSTALLATION INSTRUCTIONS
FRAME RAIL COOLER
PART # 13221, 13223, 13225
QTY. DESCRIPTION
1
Frame Rail Cooler-6AN Inlets
2
¼-20 x 1” Hex Bolts
2
¼-20 Lock Nuts
4
¼” Flat Washers

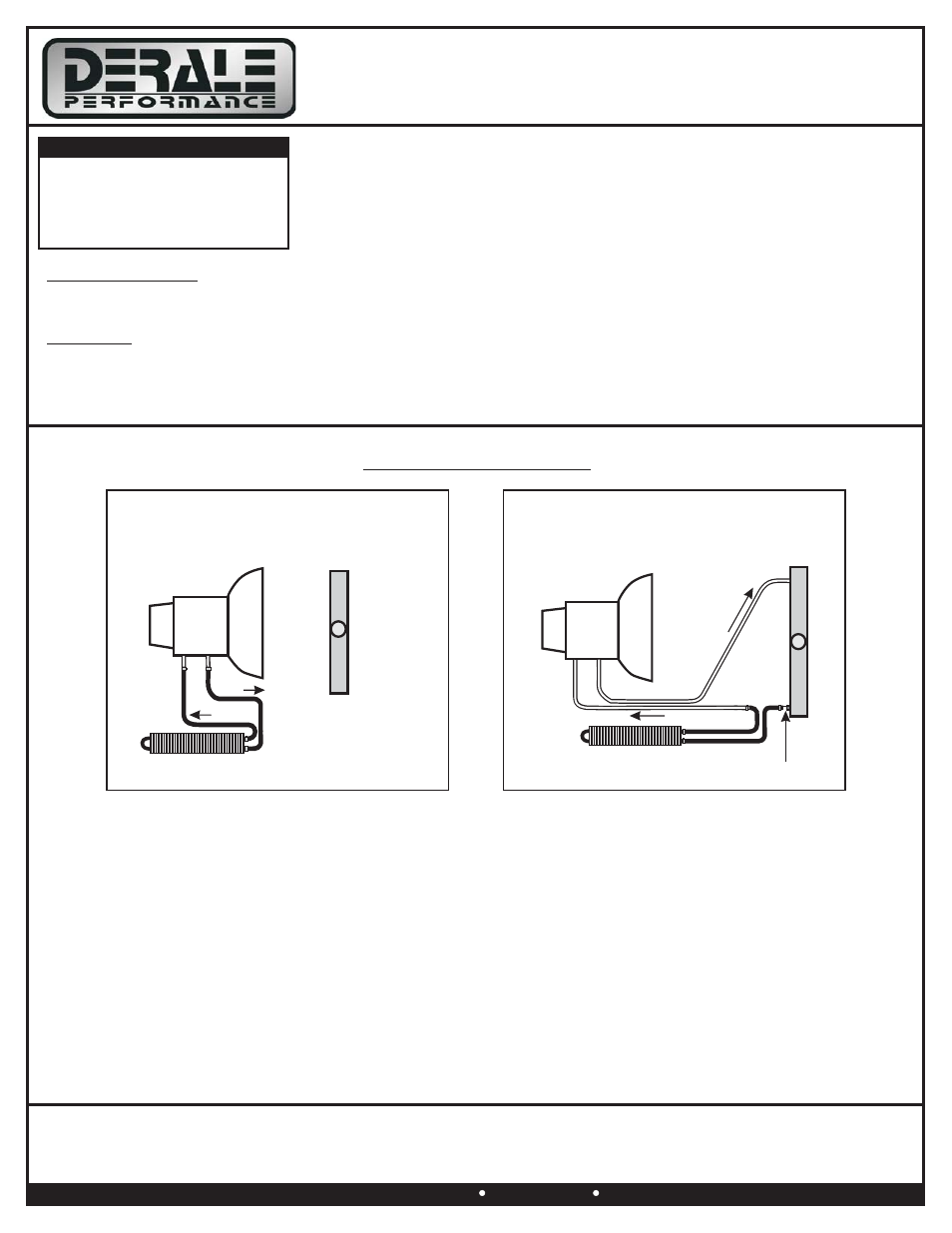

Secondary Cooling
Trans.
HOT
COOL
Insta-dapt
Radiator Adapter
(DETAILED INSTRUCTIONS NOT PROVIDED)
Hose and Plumbing accessories SOLD SEPARATELY.
Please read these instructions completely
before beginning installation.
Trans.
COOL
HOT
Radiator
(Not Used)
Primary Cooling
PLUMBING METHODS
NOT INCLUDED IN KIT.
