H.264 Super Digital Video Recorder User Manual
41
IP Address: Dial-up IP address number obtained.
【 Mobile monitor】
Accessing by mobile phone need to map the port on the Router. Monitoring and operating DVR with
protocol.

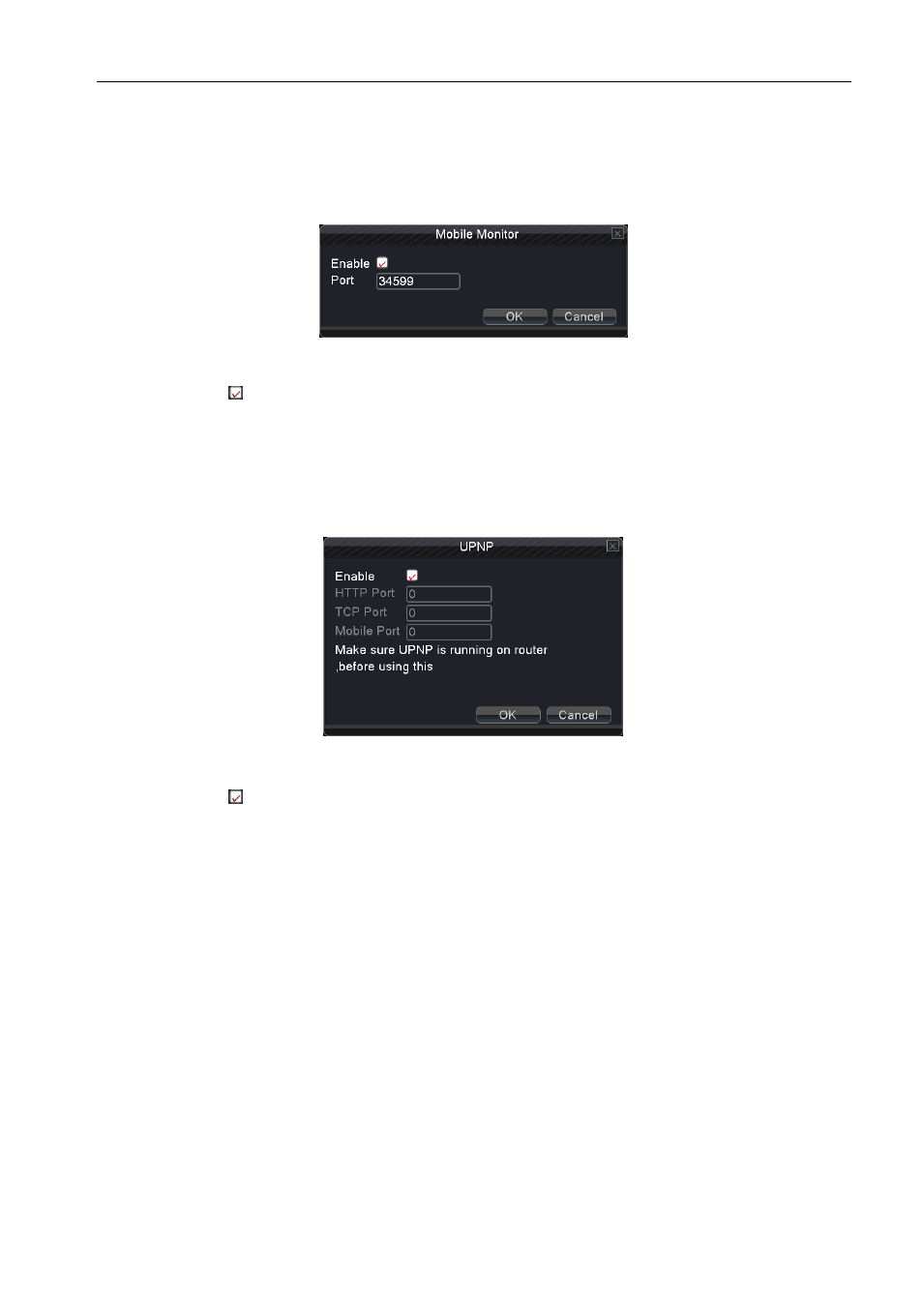

Picture 4.17 Mobile monitor
Enable: Select , enable the Mobile phone function.
Port: Port for mobile phone view, need mapping the port on Router.
【 UPNP】
UPNP protocol will be automatic port forwarding on the Router, before use this feature, make sure
UPNP feature is enabled on the router.
Picture 4.18 UPNP
Enable: Select , enable the Mobile phone function.
HTTP Port: Need to add the port number while browsing by IE
TCP Port: While use the client software to monitor, required by the port number
Mobile Port: Mobile phone monitoring through the port number
【 Wi-Fi】
Connect to wireless router by wireless module. View the device with IP under the condition that
DVR has been connected to WIFI module.
