H.264 Super Digital Video Recorder User Manual
16
Picture 3.2 Desktop shortcut menu
3.5.1 Playback
Play the video files in the hard disk.
Select " desktop shortcut menu " "playback" "search""play" appear as shown in Figure 3.3; in
the video file list select the file will appear "backup" button, the selected files to be backed up as shown
in figure 3.4.
Note: The hard disk that saves the video files must be set as read-write or read-only state. (Please
refer to Chapter 4.7.1 for HDD Manage).

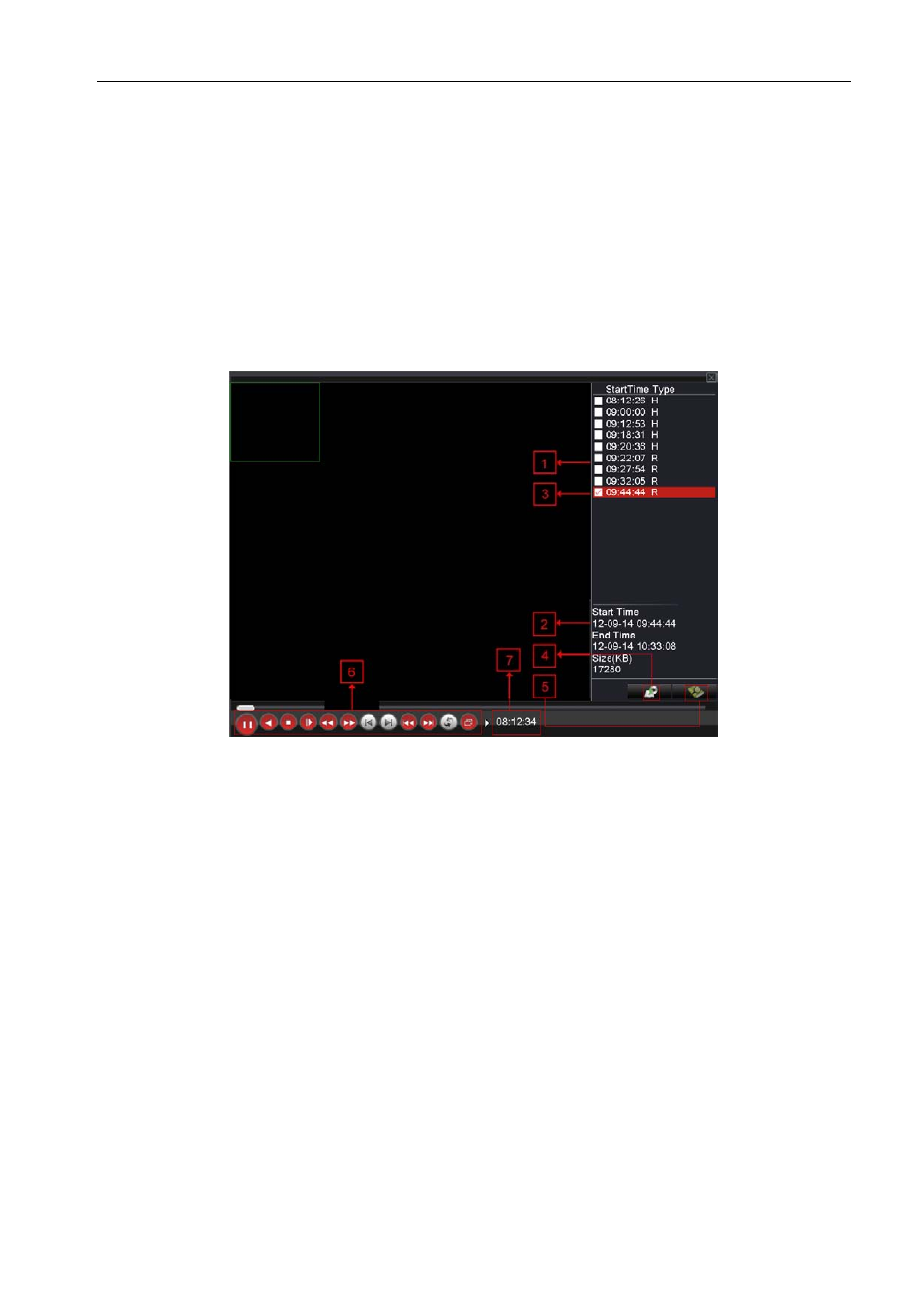

Picture 3.3 Playback
1. listed files 2. file information 3.file backup option 4.file backup
5. file searching 6. playback control 7. Playback state hint
listed files: Look up the listed files that accord with the searching criteria.
file information: Look up the found file information.
file backup option: Choose the file to backup.
Note: Before the file backup, must be installed a enough storage device; If the backup is
terminated, the already backup can playback individually.
