7.7 Chain Container

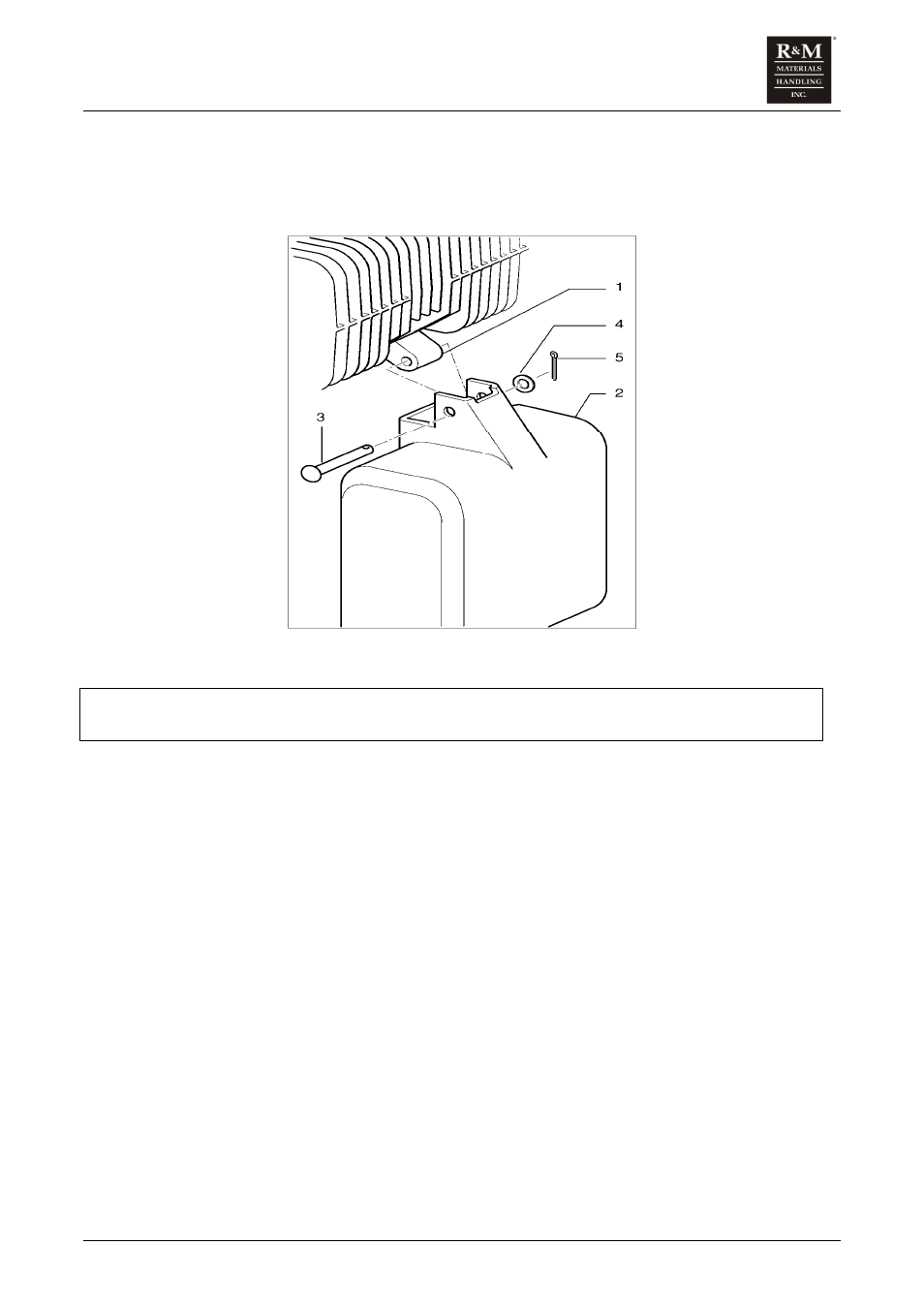

Figure 17. Chain Container Installation
m
CAUTION: Chain container must be installed for effective operation of travel limit switch.
7.7.1 Removing Chain Container (Figure 17)
1. Remove cotter pin (item 5) from end of pin (item 3).
2. Pull pin (item 3) out while supporting chain container (item 2).
3. Remove chain container (item 2).
7.7.2 Installing Chain Container (Figure 17)
1. Insert load chain into chain container (item 2). Position chain container (item 2) onto hoist mounting
bracket (item 1).
2. Align holes and insert pin (item 3) through container (item 2) and hoist mounting bracket (item 1).
3. Place washer (item 4) onto pin (item 3).
4. Insert and secure cotter pin (item 5).
