2.6 Three Phase Power Connections

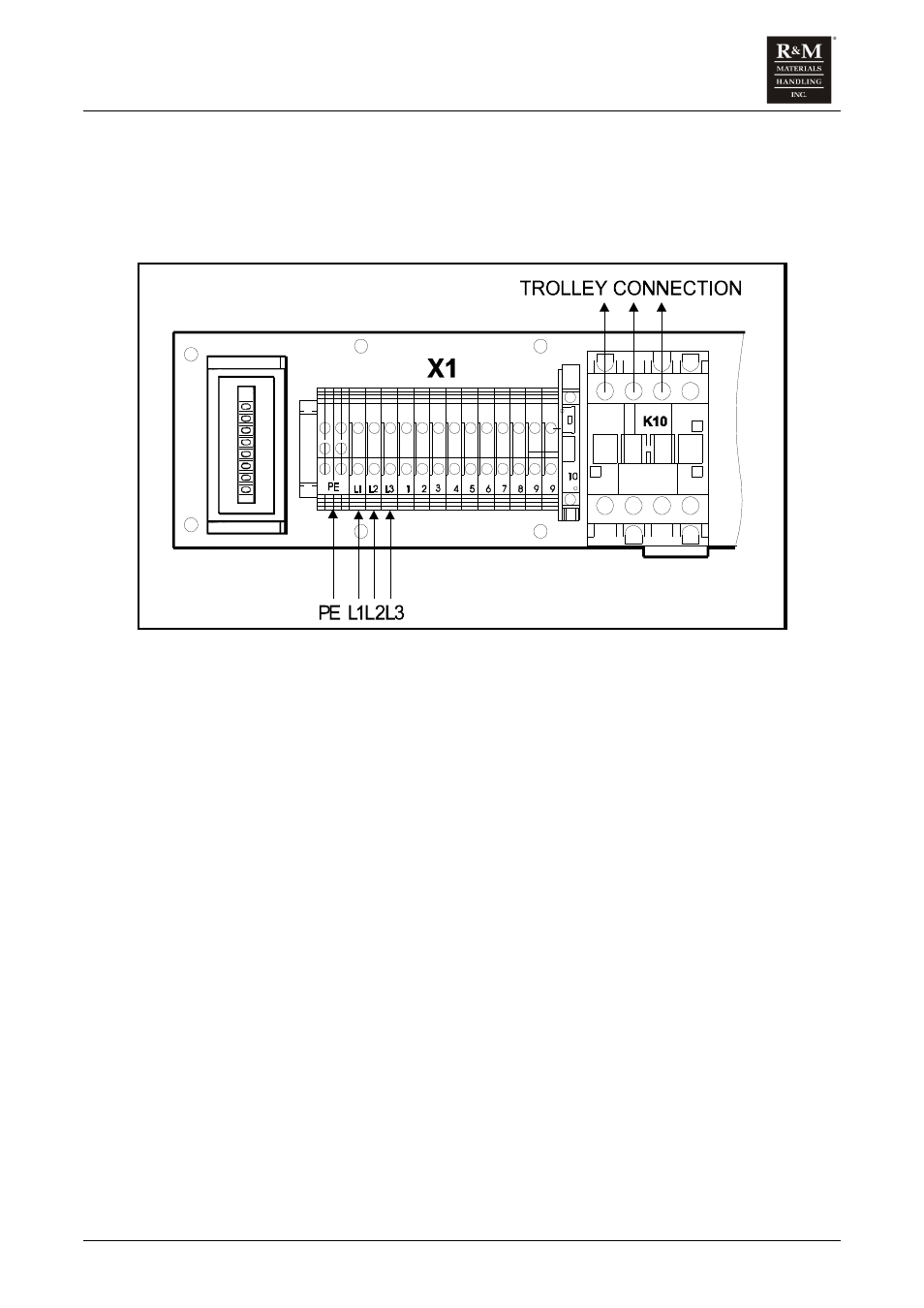

Figure 2. Three Phase Control Box Power Connections
Minimum cable sections:
Power supply:
AWG 16 (1.50 mm
2
)
Auxiliary current:
AWG 18 (0.75 mm
2
)
Control box/hoist:
AWG 18 (1.00 mm
2
)
