4
2-2.CAPACITANCE(C)
RANGE ACCURACY RESOLUTION MEASURE
FREQUENCY
2nF 1pF
20nF 10pF
200nF
±(1.0%+5d)
100pF
2uF 1nF
About 200Hz
20uF
±(2.0%+5d)
10nF
200uF ±(5.0%+5d) 100nf
About 16Hz
1000uF ±(5.0%+25d) 1uF About 8Hz
2-3.RESISTANCE Ω
RANGE ACCURACY RESOLUTION
200Ω ±(0.8%+5d) 0.1Ω
2kΩ 1Ω
20kΩ 10Ω
200kΩ 100Ω
2MΩ
±(0.8%+3d)
1kΩ
20 MΩ ±(1.0%+15d) 10 kΩ
5. OPERATION

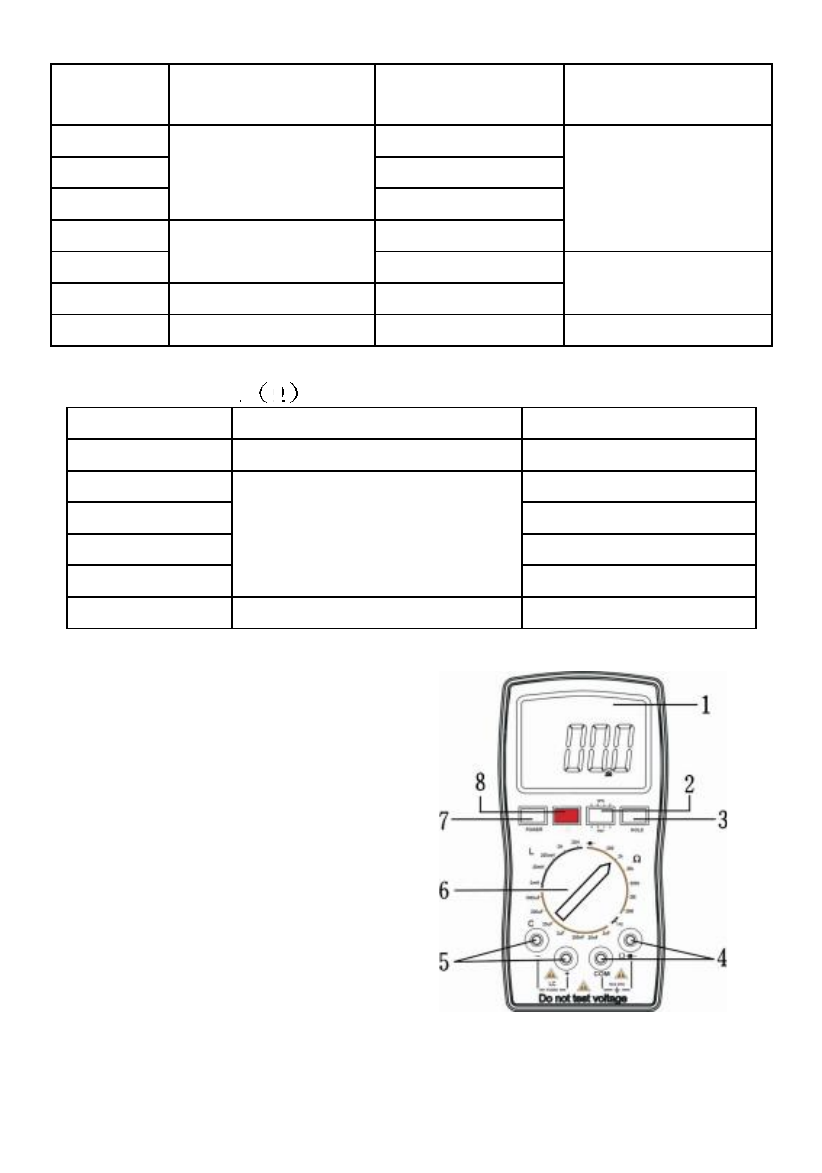

5.1 Front panel description
1. LCD display
2. Transistor test jack.
3. Hold switch: use hold the
measuring data.
4. Input port: the input port of
resistance and diode test.
5. Input port: the input port of
inductance and capacitance
measuring..
6. Range selector
7. Power switch.
8. Light diode: using in the Continuity buzzer
