3.3 CONSTRUCTION OF THE HULL OPENING AND CLOSING PLATE
( c ) ( b )
( a )
( f )
( g )
Hull
Inside
( e )
( i )
( j )
Hull
Hull
Hull
Rebate
10 - 15 mm
( h )
Hull-cut out
( d )
10 - 15mm

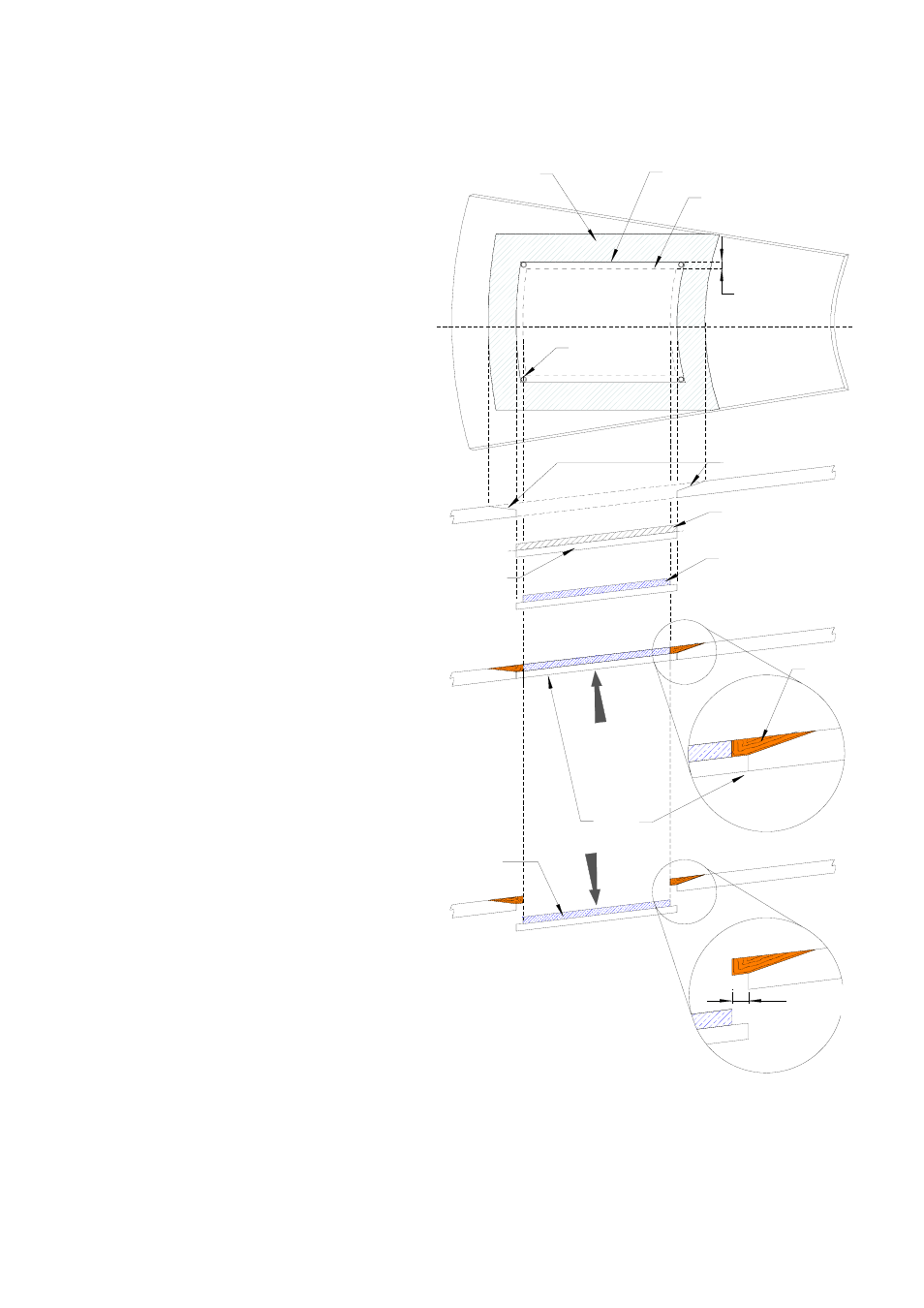

a) Measure & mark the hull opening
as mentioned before.
b) Trace a parallel line, 10 – 15 mm
away from marked-up hull
opening, to allow for position of
rebate.
c) Trace a parallel line, 100 – 150
mm away from marked-up
position of rebate, to allow for
area to be shaved down to allow
for the construction of the
rebate.
d) Drill holes in the corners of lines
marking the rebate position and
cut out this piece of the hull.
e) Shave down the marked up area
for construction of rebate ( see
“c” above ). Make sure when
grading the hull not to exceed ½
the hull thickness.
f) Shave down hull-cut out to half
its original thickness.
g) Use piece of wood (195 x 267
mm) to make male mould for
rebate construction. Position &
temporarily fix this on shaved
down hull cut-out, allowing 10 –
15 mm all-round. Make sure all
lines are smooth and liberally wax
this mould.
h) Position & secure this in hull
opening, making sure outside hull
lines are smooth.
i) Build the rebate, using matt &
roving on the inside of the hull.
Do not exceed the original
thickness and shape of the hull.
6
j) Once rebate is set, remove the male plug. Now remove temporarily fixed piece of wood from
shaved down hull cut-out and keep the hull cut-out to use as closing plate.
