English Manual: Compact Retract 12/24V, Version 2

14/04/2005

8.

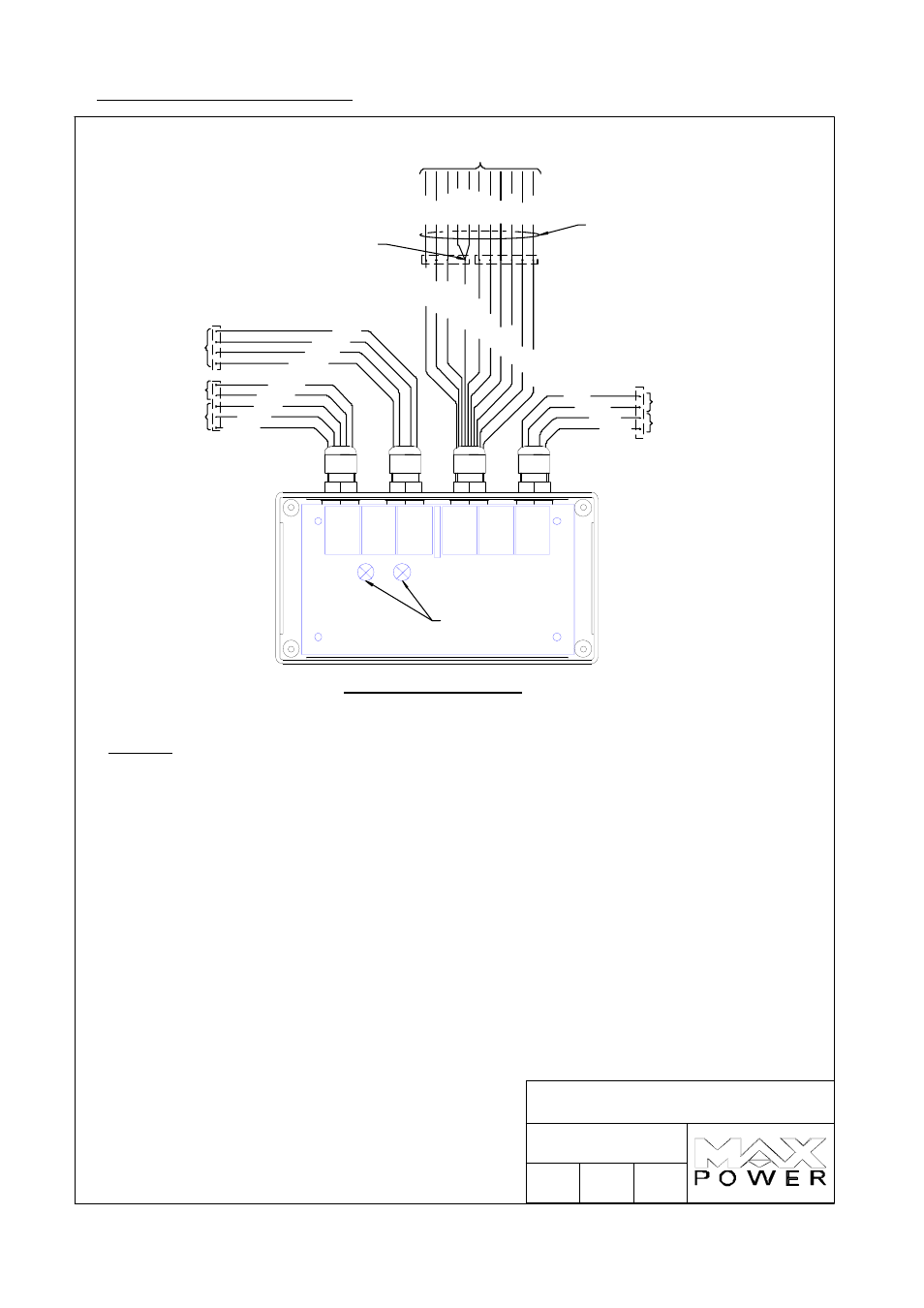

WIRING OF CONTROL BOX

19

D

O

W

N

U

P

Blue

Brown

Black

Purple

White

White

Blue

Black

Brown

Red

Black

Grey

Grey

White

Red

Brown

Blue

Black

Yellow

Orange

Purple

Grey

Green

Control Circuit Supply ( Note 1 )

To Electric Battery Isolator

To Thruster Relay Box

To N/O Heat Sensor
on Thruster Motor

To Retract Motor
(Raise/Lower)

NOTES:

1. The installer must protect the positive supply cable by means of a fuse (slow blow) as indicated.

The size of these supply wires (min. 2,5mm² with Imax = 15 A) depends on the length of the cable run and
the voltage drop in these cables should not exceed 5% of the nominal battery voltage.

2. Install an electric isolator/switch, in the supply of the thruster control box, on the boats main electrical switch board,
marked "Bow Thruster". This breaker or switch should ideally be supplied from a source independent to that used
for the thruster. See "Wiring Diagram for more detail.

JC

TITLE:

DRAWN:

PRODUCT REFERENCE:

REVISION: DATE:

Compact Retract 12/24V:
Wiring of Control Box

A

17/02/05

To Control Panel

3. All units are supplied with 25 meters of 11-core control cable, although only ten wires are needed to connect control box

to control panel. In order to avoid confusion when doing wiring, it is recommended to connect together the two orange
wires at both control box and control panel ends of the control cable.

Gr

e

e

n

Gr

e

y

Pu

rp

le

O

range

O

range

Ye

llo

w

Bl

a

ck

Bl

u

e

Br

o

w

n

Red

Whit

e

Note 3

11-Core Control Cable
as Dilivered with Thruster

4. When in "Manual Mode" during the final set-up and installation stages of the thruster unit, it might be necessary

to increase the "up" or "down" torque values of the up/down motor in order to ensure that thruster turbine reach
it's fully "up" or "fully" down position when being raised and lowered. To increase the torque the "up" or "down"
torque screw should be adjusted clockwise in small steps until desired position is reached.

Torque Screws

( Note 4 )

Thruster Control Box
