MAX Power COMPACT - Manual (Page 21)

English Manual: Compact Retract 12/24V, Version 2 14/04/2005

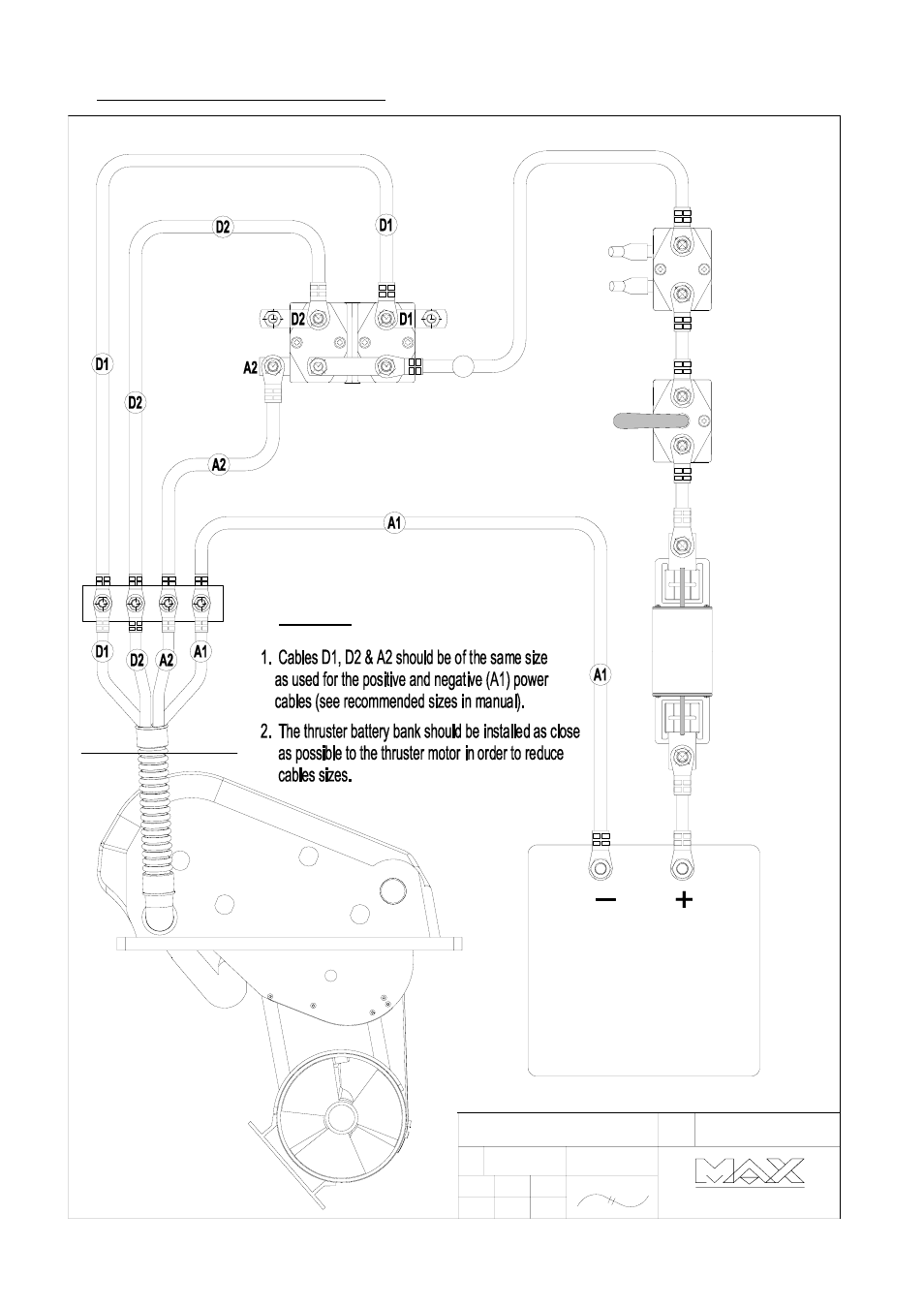

10. POWER CABLE CONNECTIONS
21
DATE
DRAWN CHECK
DATE DATE
RELEASE
CADD
SCALE
MATERIAL
HEAT TREAT & FINISH
REF.
TITLE REVISION PART NO.
Max Power
06/10/04
POWER
Compact Retract 12/24V:
Power Cable Connections
JC
+
Thruster
Relay
12/24V
High Power Starting
Type Battery Bank
for Thruster.
Electric
Battery
Isolator
Manual
Battery
Isolator
Power Fuse
&
Fuse Holder
Thruster Unit
+
NOTES:
Thruster Motor
Terminal Busbar
W L
