Hmax = Door Height + 1-7/8" • Hmin = Door Height + 1-1/2"
36"
(91,4 cm)
1/2"
(1,3 cm) 1-3/16"
(3 cm)
1
2
3

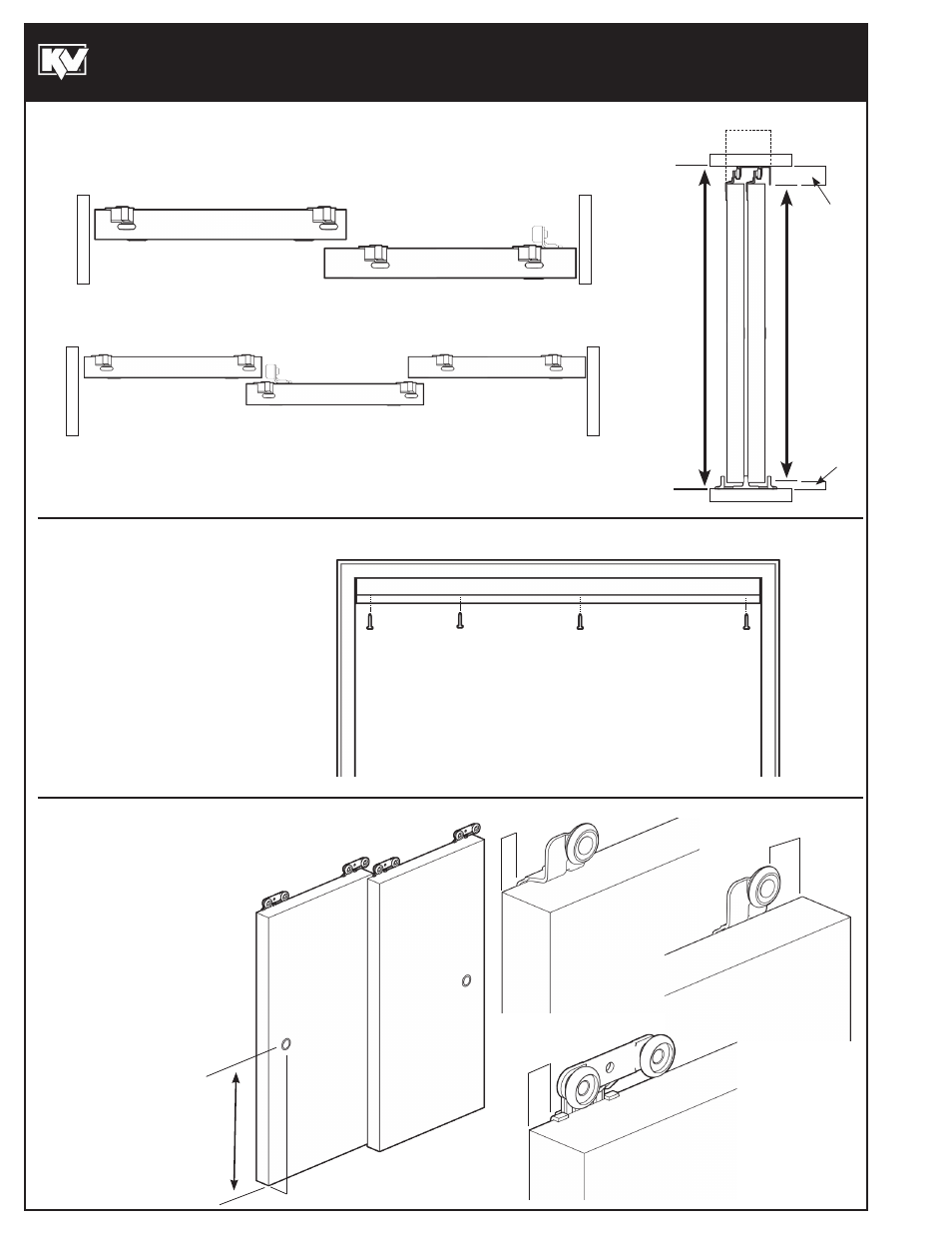

PREPARE OPENING
MOUNT FRAME HARDWARE
• Center track in opening.
• Using track as template, mark
screw locations.
• Drill 3/32" pilot holes and
secure with (#8 x 1-1/4") screws.
• Place carriers on back
of each door at the distance
shown from the outside
edge for your model.
• Using carriers as
a template, drill 3/32"
diameter holes and
secure with (#8 x 3/4")
screws
• Drill 2-1/8" diameter hole
approximately 1/4"
deep on outside edge
of each door as
shown to mount
pulls.
Note: If necessary, track may be cut
with a fine tooth saw.
MOUNT DOOR HARDWARE
2-Door Width = 2 x Door Width - 1"
3-Door Width = 3 x Door Width - 2"
OR
Both Sides
Deux côtés
Ambos lados
1/2"
(1,3 cm)
2" (5,1 cm)
SLIDING DOOR HARDWARE - BY PASS
Assembly
Instructions
#310289_B (1112)
3/8" - 1/2"
(1 cm - 1,3 cm)
1-1/8" - 1-3/8"
(2,9 cm - 3,5 cm)
Opening Height
Hauteur Ouverture
Altura Abertura
Door Height
Hauteur Porte
Altura Puerta
Left Edge
Bord gauche
Borde izquierdo
Right Edge
Bord droit
Borde derecho
3-9/16"
(9 cm)
