Knape&Vogt BYP-60A Series - Manual (Page 3)

1-3/16"
(3 cm)
Right Edge
Bord droit
Borde derecho

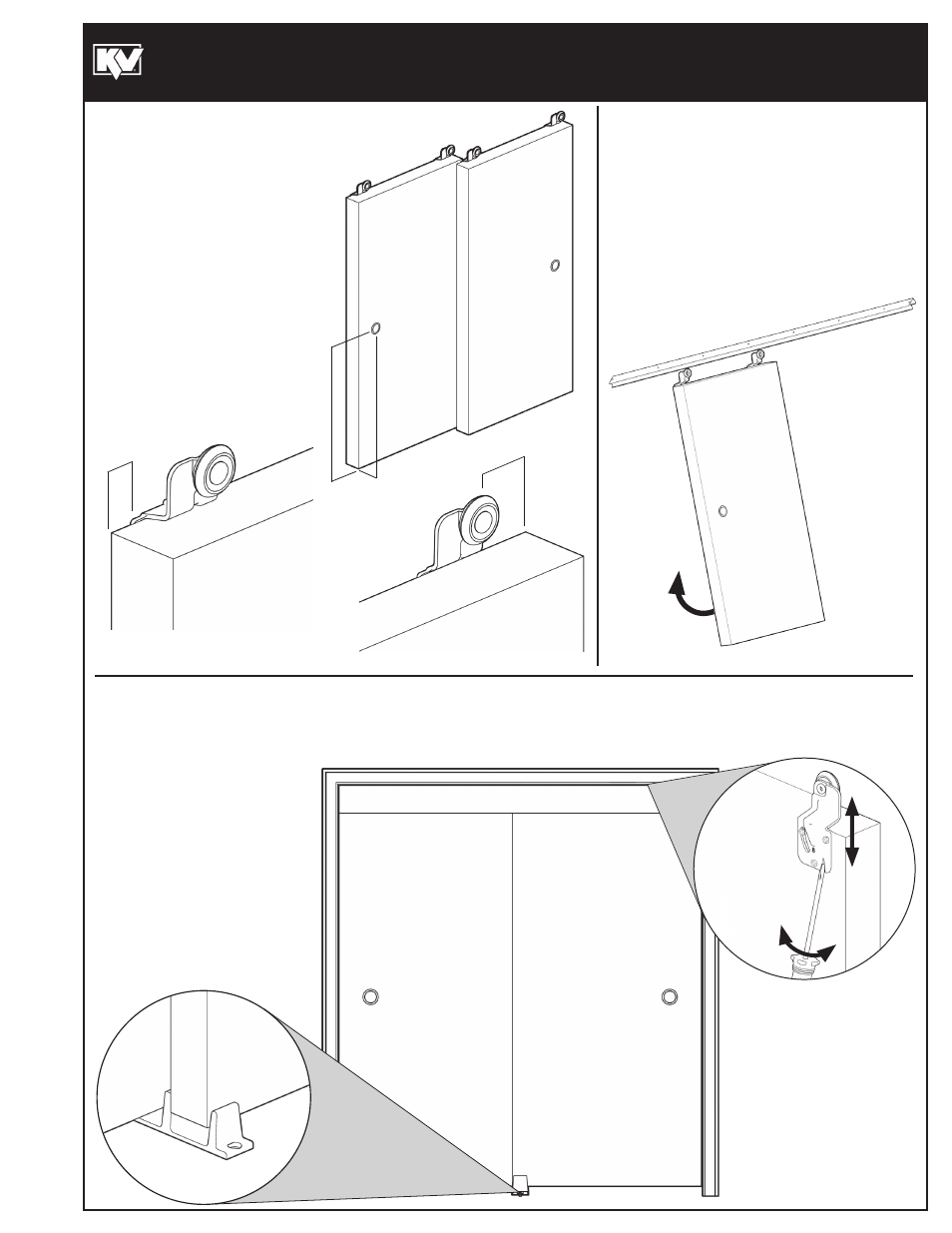

• Place carriers on back of each
door at the distance shown
from the outside edge for your
model.
• Using carriers as a template,
drill 3/32" holes and secure
with (#8 x 3/4") screws.
• Drill 1-3/4" diameter
hole approximately
1/4" deep on outside
edge of each door as
shown to mount pulls.
SLIDING DOOR HARDWARE - BY PASS
Assembly
Instructions
2" (5,1 cm)
36"
(91,4 cm)
#310301_B (1112)
1/2"
(1,3 cm)
Left Edge
Bord gauche
Borde izquierdo
4
HANG DOORS
• Mount rear door first by tilting
door back and resting hangers
on rear rail.
• Repeat for front door on front rail.
3
MOUNT DOOR HARDWARE
5
ADJUST AND FINISH
• Adjust door to square with sides of door opening for your model as shown.
• Install door guide where doors overlap.
• Install door stop to back side
of front door to keep rear
door pull accessible when
front door is open.
