Hmax = Door Height + 3-3/4" • Hmin = Door Height + 2-13/16"
1
2
3

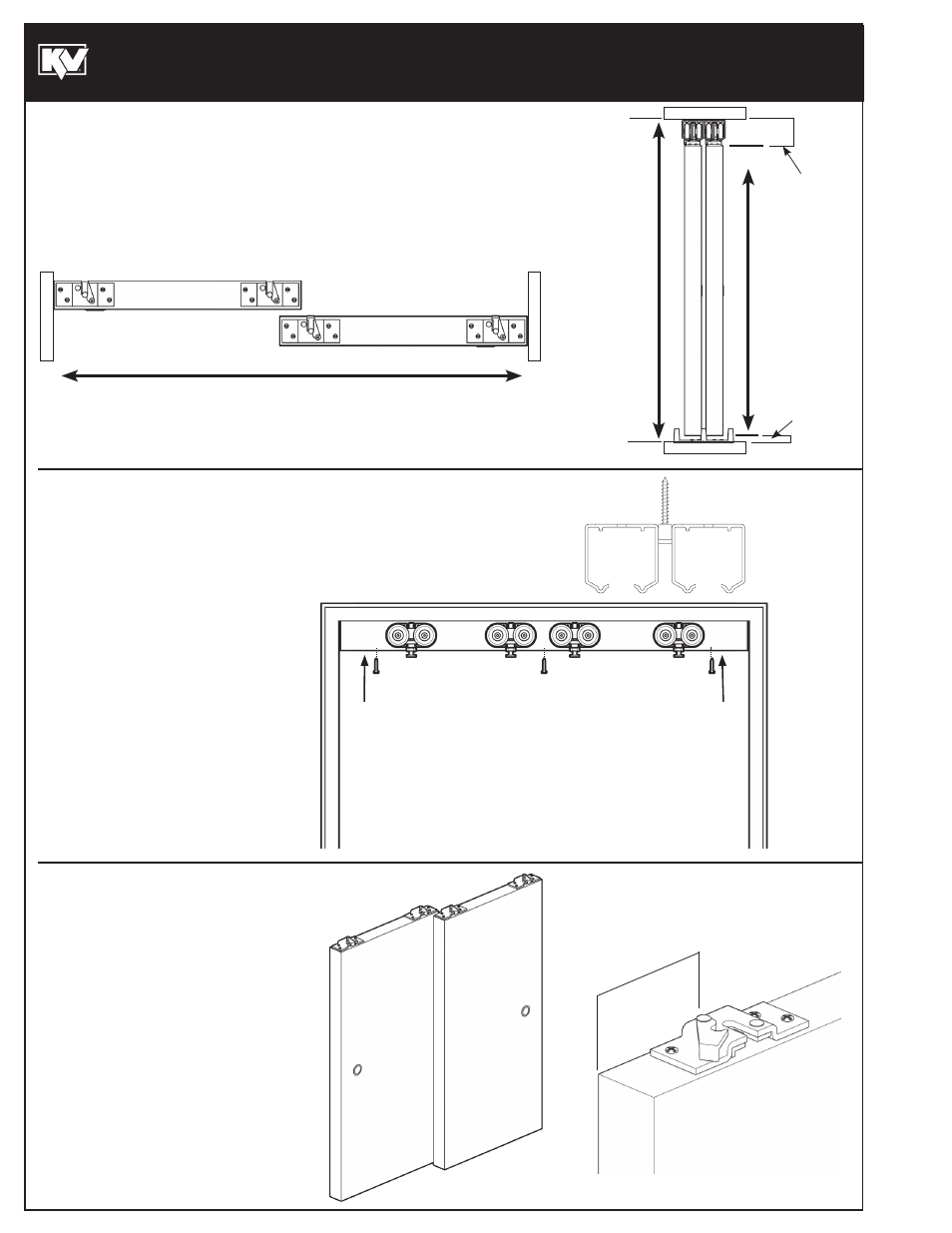

PREPARE OPENING
MOUNT FRAME HARDWARE
• Center track in opening. Track should
be flush for 1-3/8" doors.
•
IMPORTANT: Place hangers loose into
track before securing.
• For 1-3/4" doors, use provided
spacer kit at each end.
• Using track as template, mark
screw locations.
• Drill 3/32" pilot holes and
secure with (#8 x 1-1/2") screws.
• Place quick release top mount
plate on top of each door at the
distance shown from the
outside edge.
• Using brackets as a template,
drill 3/32" diameter holes and
secure with (#8 x 1-1/2") screws.
• Mount pulls (not included).
Note: If necessary, track may be cut
with a fine tooth saw.
MOUNT DOOR HARDWARE
2-Door Width = 2 x Door Width - 1"
Spacer for
1-3/4" doors
Spacer for
1-3/4" doors
SLIDING DOOR HARDWARE - BY PASS
Assembly
Instructions
#310304_A (1012)
2-7/16" - 3-1/4"
(6,2 cm - 8,3 cm)
3/8" - 1/2”
(1 cm - 1,3)
1-1/2"
(3,8 cm)
Opening Width
Largeur d’ouverture
Anchura de la abertura
Opening Height
Hauteur Ouverture
Altura Abertura
Door Height
Hauteur Porte
Altura Puerta
