Knape&Vogt BYP-150A Series - Manual (Page 2)

Hmax = Door Height + 3-3/16" • Hmin = Door Height + 2-7/16"
2-1/16" - 2-11/16"
(5,2 cm - 6,8 cm)
1
2
3

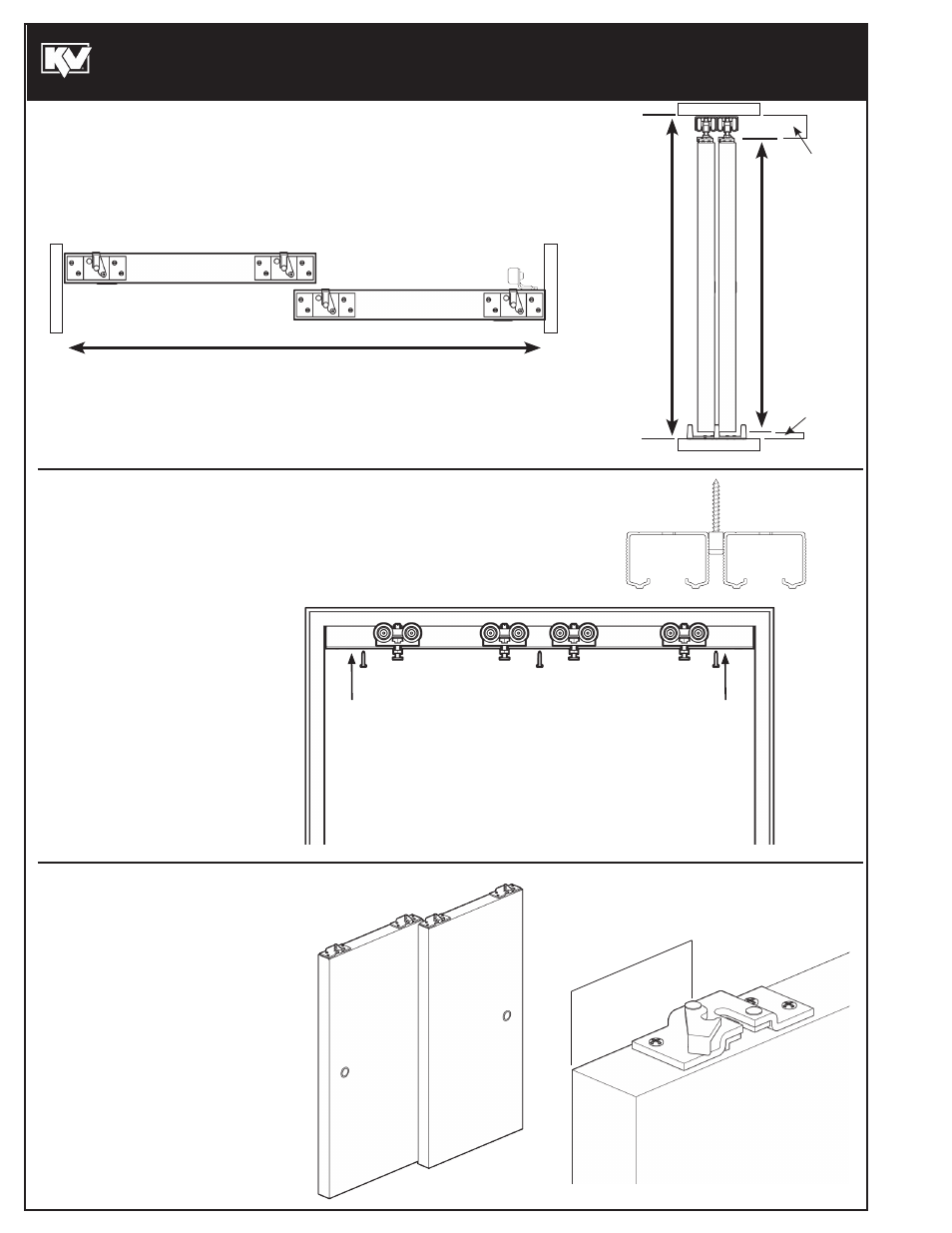

PREPARE OPENING
MOUNT FRAME HARDWARE
• Center track in opening. Track
should be flush for 1-3/8" doors.
•
IMPORTANT: Place hangers loose
into track before securing.
• For 1-3/4" doors, use provided
spacer kit at each end.
• Using track as template, mark
screw locations.
• Drill 3/32" pilot holes and
secure with (#8 x 1") screws.
• Place quick release top mount
plates on top of each door at
the distance shown from the
outside edge.
• Using brackets as a template,
drill 3/32" diameter holes and
secure with (#8 x 1") screws.
• Mount pulls (not included).
Note: If necessary, track may be cut
with a fine tooth saw.
MOUNT DOOR HARDWARE
Opening Width
Largeur d’ouverture
Anchura de la abertura
2-Door Width = 2 x Door Width - 1"
Spacer for
1-3/4" doors
Spacer for
1-3/4" doors
SLIDING DOOR HARDWARE - BY PASS
Assembly
Instructions
#310303_A (1012)
1-1/2"
(3,8 cm)
3/8" - 1/2”
(1 cm - 1,3 cm)
Opening Height
Hauteur Ouverture
Altura Abertura
Door Height
Hauteur Porte
Altura Puerta
