4
5

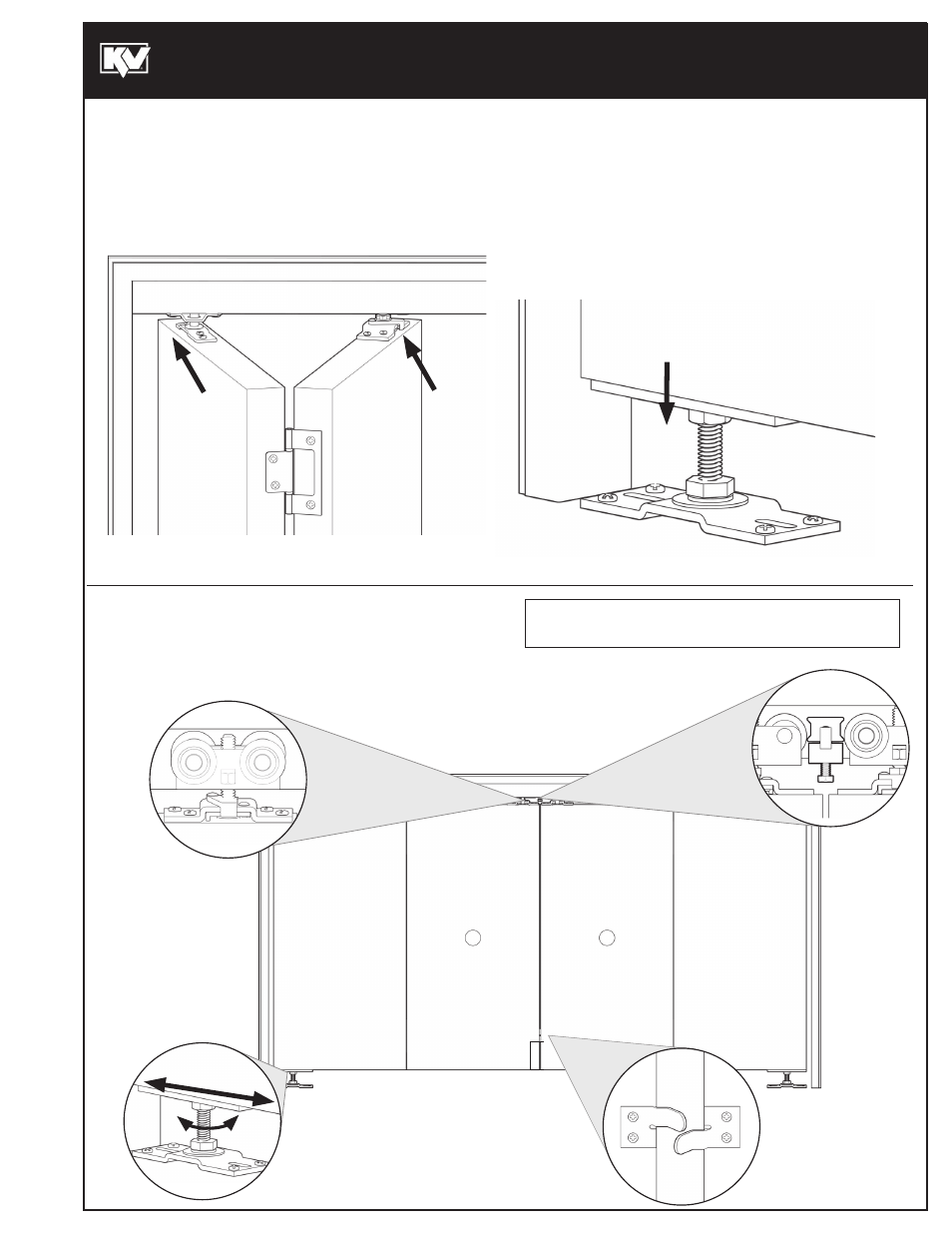

HANG DOORS
ADJUST AND FINISH
• Fold door panels together and engage top pivot guide of pivot door into track pivot.
• Set bottom pivot assembly into floor plate.
• Slide carrier bolt into quick release top mount plate slot and close quick release latch.
• Screw snubber onto track in location based on number of doors.
• Install finish trim or casing.
Vertical Adjustment 2:
Rotate adjusting bolt on bottom pivot.
Turn right to lower door and left to raise.
Aligners (4-Door ONLY):
Mount aligners on the back
side of door panels. Use
aligners as template and
drill 3/32" diamter holes
and secure with (#8 x 3/4")
screws.
Vertical Adjustment 1:
Use wrench to rotate carrier
bolt. Turn right to raise and left
to lower. Adjust so weight is
evenly distributed across the
top of the track for smooth and
even folding action.
12"
(30,5 cm)
2-Door: Between top guide and side jamb furthest from the pivot.
4-Door: Between the pairs of door panels.
SLIDING DOOR HARDWARE - BI-FOLD
Assembly
Instructions
Pivot
Pivote
Guide
Guía
#310296_D (0113)
