Peerless-AV SA752P - Sell Sheet - Manual

Articulating Wall Arm
For 37" to 55" Displays
From any angle, this wall arm mount reflects remarkable form and function. Extending the display
up to 27.43" (697mm) from the wall and allowing for a full 180° of side-to-side motion for perfect
view positioning of displays up to 55". Fine-tuning of the installation is simple with its side-to-side
display leveling and 1" (25.4mm) of vertical adjustment features that help achieve perfection.
This articulating arm also provides display centering on the wall plate and integrates a desirable
cable management system, centering the display on the wall when retracted and organizing
and protecting the cables. Designed and built in the USA, this mount maintains the same brilliant
look as the entire SmartMount
® 700 Series line of Articulating and Pivot Wall Arm Mounts.
1" (25.4mm) clearance
per channel for clean and
simple cable management
Display size: 37"-55" Max load: 90lb (41kg)
SA752PU
SA752P
 Universal model SA752PU
provides compatibility for
37" to 55" displays with
mounting patterns up to
689 x 439mm (27.12" x 17.29")
 Dedicated model SA752P
requires display adaptor to
be purchased separately
 Display can be held as close
to the wall as 4.43" (112mm)
or be extended as far as
27.43" (697mm)
 Integrated cable
management contains,
protects and conceals cables
for a clean clutter-free look
 One-Touch TM tilt allows for
+15°/-5° without the use of
tools for easy viewing angle
adjustment
 Multi-link construction allows
for a full 180° range of motion
 Display can be pivoted
a full 90°
 ±5° of roll allows for post
installation leveling
 Display can be rotated
from landscape to portrait
without removing the display
for easy orientation changes
 1" (25.4mm) vertical
adjustment for display
position fine tuning
FeatureS
Arm retracts to just 4.43"
(112mm) and extends up to
27.43"(697mm) from wall
Viewing Flexibility
Arm extends up to 27.43"
(697mm) from wall
PoSt inStallation
leVeling
±5° of roll for
post-installation leveling
remarkable Form
New design, cable
covers and fastener
covers complete a
professional installation
1" (25.4mm) of vertical
adjustment for
post-installation fine tuning
Clean aPPliCation
Built in cable management
system keeps cables
organized and protected

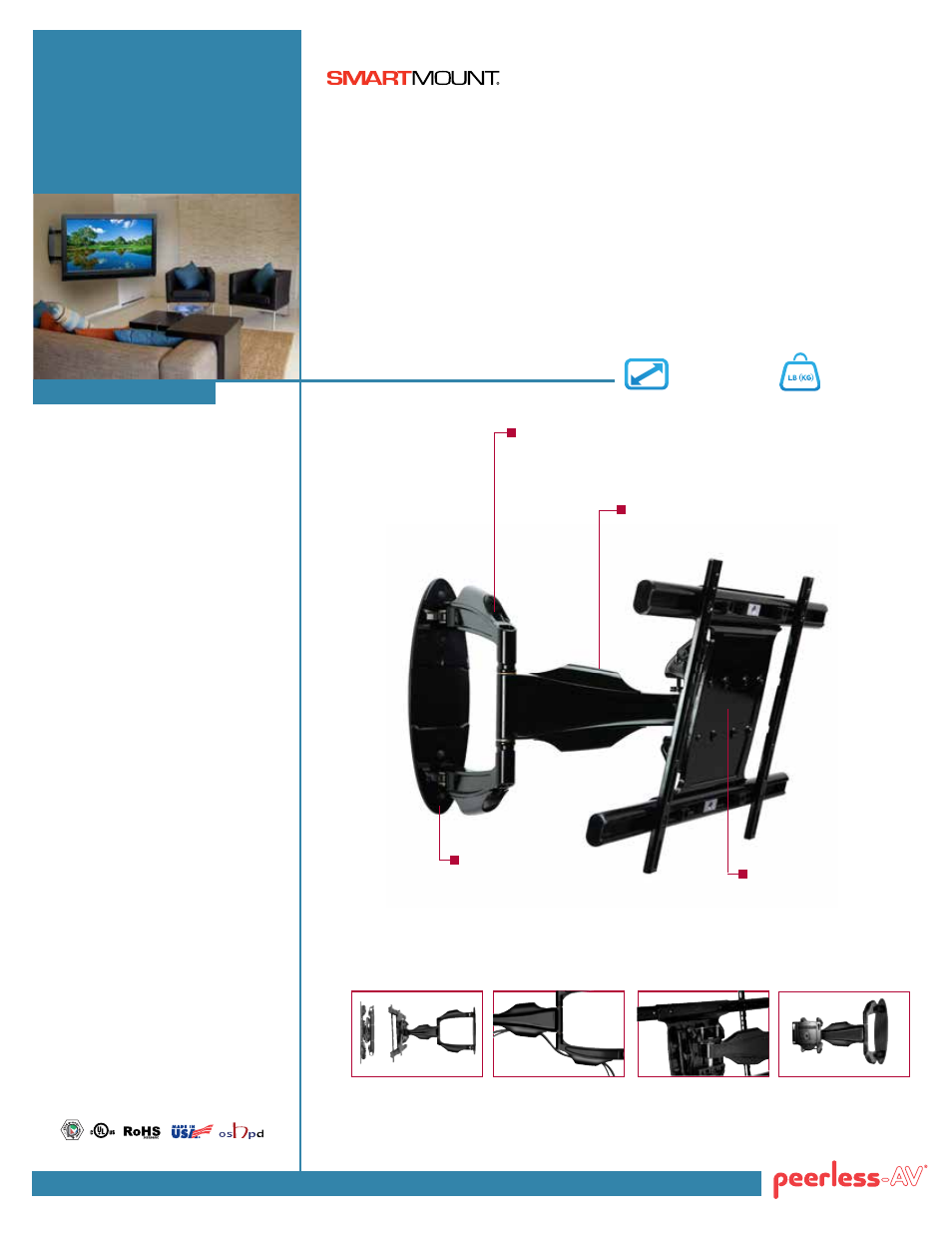

SA752P dedicated model
requires additional adaptor
plate for mounting display
SA752PU Shown
