Peerless-AV DS039 - Sell Sheet - Manual (Page 2)

PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE
DS039
Box 1:
57" x 26.75" x 6"
(1448 x 680 x 153mm)
181lb (82.1kg) 735029262169
Tube Support Structure,
Left and Right Foot
Assemblies, Wheel
Casters, Adapter
Bracket, Back Plate,
Fastener Packet
1 Box 2:
4" x 4" x 72"
(102 x 102 x 1829mm)
Box 3:
4" x 4" x 72"
(102 x 102 x 1829mm)
Package Specifications
Accessories
DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS
DS039
61.11" x 82.16" x 31.00"
(1552 x 2087 x 787mm)
162lb (73.5kg) 600lb (272kg)
Scratch
resistant
fused
epoxy
Black
Product Specifications
Model Numbers
WaRRantY: limited 5-year
A R C H I T E C T S S P E C I F I C A T I O N S
The Cart/Stand shall be a Peerless-AV model DS039 and shall be located where indicated on the plans.
It shall be constructed of heavy gauge cold rolled steel tubing, and finished with scratch resistant Black Fused Epoxy.
Assembly and installation shall be done according to instructions provided by the manufacturer.
aCC310: Leg Leveler Kit
All dimensions = inch (mm)
DS039: Cart / Stand for Sharp 108" (LC-108D1U) Displays
LIT-0390 rev.2

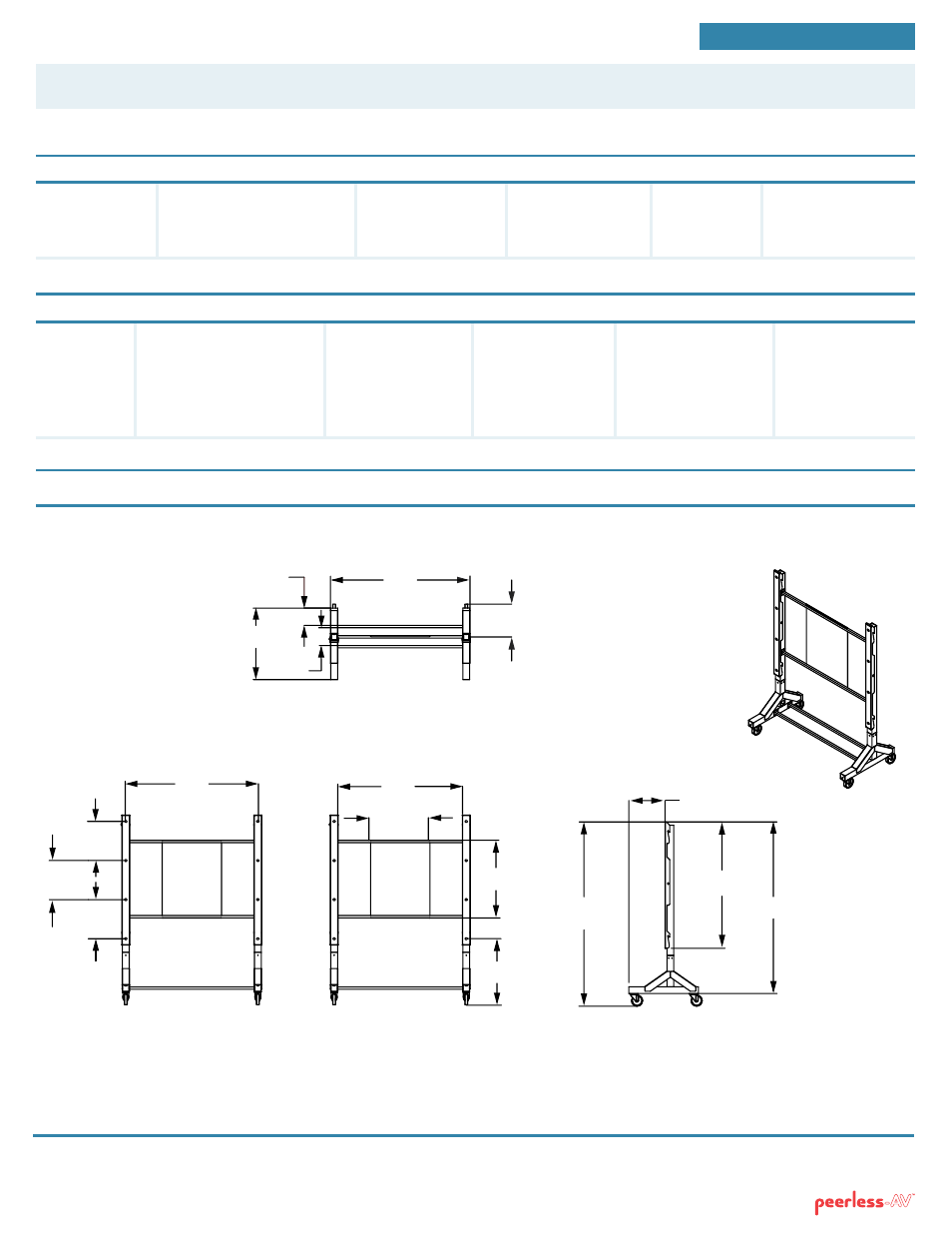

RiGHt VieW
82.16"
[2087 mm]
56.33"
[1431 mm]
16.13"
[410 mm]
76.5"
[1943 mm]
iSo VieW
61.11"
[1552 mm]
31"
[787 mm]
14.22"
7.5"
[191 mm]
7.75"
[197 mm]
top VieW
FRont VieW
54.42"
[1382 mm]
33.71"
[856 mm]
26"
[660 mm]
[361 mm]
[676 mm]
26.61"
[430 mm]
16.93"
58.38"
MAX
[1483 mm]
MountinG Hole patteRn
16.93"
[430 mm]
16.93"
[430 mm]
