Peerless-AV HT642-004 - Sell Sheet - Manual (Page 2)

PACKAGE SIZE (L x W x H) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS
UNITS IN
PACKAGE
HT642-004
21.125" x 10.125" x 3.5"
(308 x 257 x 89mm)
7.2 lb (3.3 kg) 735029280620
Wall plate, adapter
rails and mounting
hardware
1
Package Specifications
DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS
HT642-004
18.5" x 9" x 2.14"
(470 x 229 x 54mm)
4.5lb (2kg) 80lb (36.3kg) Powder coat Black
Product Specifications
Model Numbers
WArrANTY: Limited 5-year
A R C H I T E C T S S P E C I F I C A T I O N S
The Enclosed Flat/Tilt Wall Mount shall be a Peerless-AV model HT642-004 and shall be located where indicated on the plans.
It shall be constructed of heavy gauge steel. The finish shall be scratch resistant black fused epoxy.
Assembly and installation shall be done according to instructions provided by the manufacturer.
All dimensions = inch (mm)
LIT-0761
HT642-004 Enclosed Flat/Tilt Wall Mount for 32" to 50" flat panel TVs with VESA ® 200 x 100 or 200 x 200mm mounting hole pattern
Visit www.peerless-av.com to see the complete line of AV solutions from Peerless-AV, including flat panel mounts, projector mounts, carts/stands, furniture, cables, screen cleaners and a full assortment of accessories.
© 2011 Peerless Industries, Inc. All rights reserved.
Peerless Industries, Inc.  2300 White Oak Circle  Aurora, IL 60502  (800) 865-2112  (630) 375-5100  Fax: (800) 359-6500  www.peerless-av.com

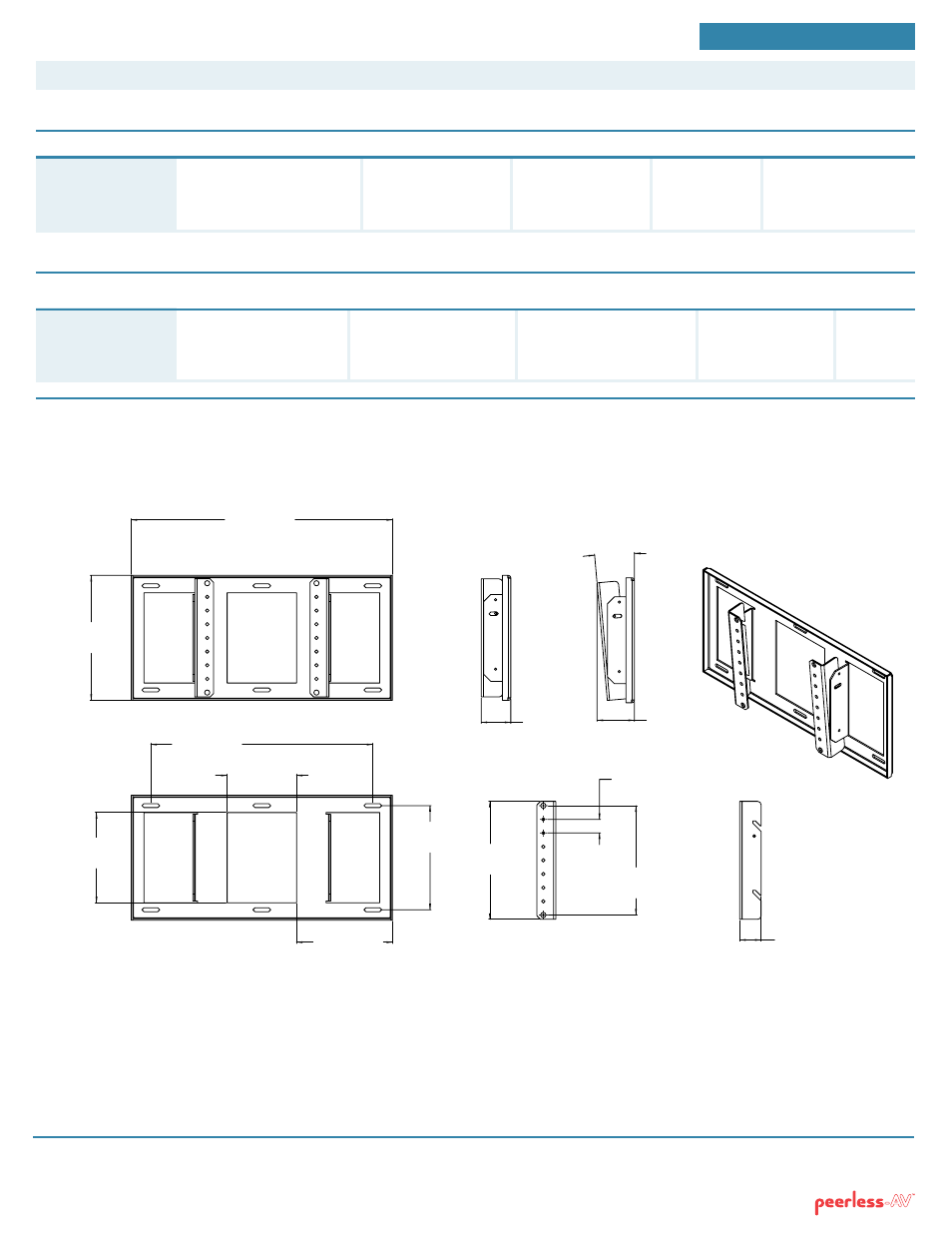

SIDe vIeW
