A R C H I T E C T S S P E C I F I C A T I O N S
The Indoor/Outdoor Tilting I-Beam Mount shall be a Peerless model number FPECMI and located where indicated on the plans. Assembly and installation shall be done
according to instructions provided by the manufacturer. Mount is made of heavy gauge cold rolled steel. Mount is finished with a glossy ASA-70 gray protective paint.
Visit peerlessmounts.com to see the full line of Peerless LCD/plasma, projector and TV/monitor mounts. © 2010 Peerless Industries, Inc. All rights reserved.
peerless Industries, Inc.  2300 white oak Circle  Aurora, IL 60502  (800) 865-2112  (708) 865-8870  Fax: (708) 865-2941  www.peerlessmounts.com
LIT-0636
Dimensions (W x H x D) PRoDUCT WeiGHT LoaD CaPaCiTy FinisH aVaiLaBLe CoLoRs
FpeCmI-01
FpeCmI-02
FpeCmI-03
FpeCmI-04
18.79" x 41.44" x 18" (477 x 1052 x 457mm)
18.79" x 53.44" x 18" (477 x 1357 x 457mm)
18.79" x 65.44" x 18" (477 x 1662 x 457mm)
18.79" x 77.44" x 18" (477 x 1966 x 457mm)
77lb (34kg)
81lb (36kg)
85lb (38kg)
90lb (40kg)
400lb (181kg)
Outdoor gloss
powder paint
Stone gray
Product Specifications
Model Numbers
wArrAnty: Limited 5-year on mount
Limited 1 year warranty on corrosion
PaCKaGe siZe (W x H x D)
PaCKaGe sHiP
WeiGHT
PaCKaGe UPC CoDe
PaCKaGe
ConTenTs
UniTs in PaCKaGe
FpeCmI-01
FpeCmI-02
FpeCmI-03
FpeCmI-04
Box 1: 24" x 20" x11"
Box 2: 19" x 17" x 15"
Box 3: 35" x 4" x 4"
Box 1: 24" x 20" x11"
Box 2: 19" x 17" x 15"
Box 3: 47" x 4" x 4"
Box 1: 24" x 20" x11"
Box 2: 19" x 17" x 15"
Box 3: 59" x 4" x 4"
Box 1: 24" x 20" x11"
Box 2: 19" x 17" x 15"
Box 3: 59" x 4" x 4"
(610 x 508 x 279mm)
(483 x 432 x 381mm)
(889 x 101 x 101mm)
(610 x 508 x 279mm)
(483 x 432 x 381mm)
(1194 x 101 x 101mm)
(610 x 508 x 279mm)
(483 x 432 x 381mm)
(1499 x 101 x 101mm)
(610 x 508 x 279mm)
(483 x 432 x 381mm)
(1499 x 101 x 101mm)
79 lb (36kg)
83lb (38kg)
88lb (40kg)
93lb (42kg)
735029273110
735029273080
735029273134
735029273141
I-beam mount
and mounting
hardware
1
Package Specifications
All dimensions = inch (mm)
FpeCmI-01: 1ft. Indoor/Outdoor Tilting I-Beam Mount for Protective Enclosures (FPE42(H)-S, FPE47(H)-S & FPE55(H)-S)
FpeCmI-02: 2ft. Indoor/Outdoor Tilting I-Beam Mount for Protective Enclosures (FPE42(H)-S, FPE47(H)-S & FPE55(H)-S)
FpeCmI-03: 3ft. Indoor/Outdoor Tilting I-Beam Mount for Protective Enclosures (FPE42(H)-S, FPE47(H)-S & FPE55(H)-S)
FpeCmI-04: 4ft. Indoor/Outdoor Tilting I-Beam Mount for Protective Enclosures (FPE42(H)-S, FPE47(H)-S & FPE55(H)-S)
Accessories
Fpe42F-S: Indoor/Outdoor Protective Enclosure with Cooling Fans for 40"-42" Flat Panel Screens
Fpe47F-S: Indoor/Outdoor Protective Enclosure with Cooling Fans for 46"-47" Flat Panel Screens
Fpe55F-S: Indoor/Outdoor Protective Enclosure with Cooling Fans for 52"-55" Flat Panel Screens
Fpe42FH-S: Indoor/Outdoor Protective Enclosure with Cooling Fans and Thermostat Controlled Heater for 40"-42" Flat Panel Screens
Fpe47FH-S: Indoor/Outdoor Protective Enclosure with Cooling Fans and Thermostat Controlled Heater for 46"-47" Flat Panel Screens
Fpe55FH-S: Indoor/Outdoor Protective Enclosure with Cooling Fans and Thermostat Controlled Heater for 52"-55" Flat Panel Screens
FpeCmI-01 FpeCmI-02 FpeCmI-03 FpeCmI-04
Fpe42F-S,
Fpe42FH-S
"A" = 15.54" (395mm)
"B" = 49.34" (1253mm)
"A" = 27.54" (700mm)
"B" = 61.34" (1558mm)
"A" = 39.54" (1004mm)
"B" = 73.34" (1863mm)
"A" = 51.54" (1309mm)
"B" = 85.34" (2168mm)
Fpe47F-S,
Fpe47FH-S
"A" = 14.32" (364mm)
"B" = 50.57" (1284mm)
"A" = 26.32" (668mm)
"B" = 62.57" (1589mm)
"A" = 38.32" (973mm)
"B" = 74.57" (1894mm)
"A" = 50.32" (1278mm)
"B" = 86.57" (2199mm)
Fpe55F-S,
Fpe55FH-S
"A" = 12.35" (314mm)
"B" = 52.53" (1334mm)
"A" = 24.35" (618mm)
"B" = 64.53" (1639mm)
"A" = 36.35" (923mm)
"B" = 76.53" (1944mm)
"A" = 48.35" (1228mm)
"B" = 88.53" (2249mm)
16.00"
(406mm)
16.00"
(406mm)
18.79"
(477mm)
13.60"
(345mm)
14.41"
(366mm)

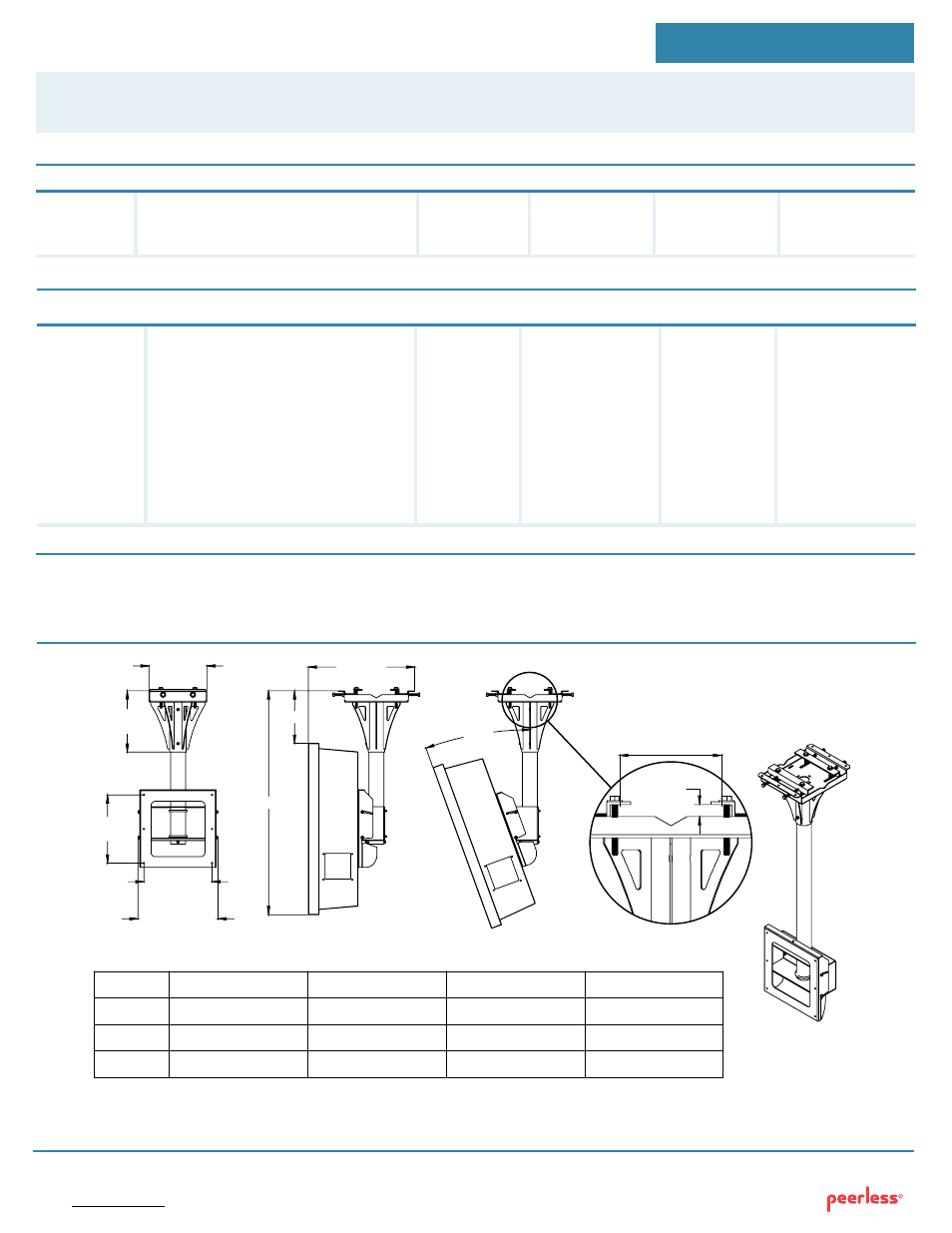

Front VIew
"A"
"B"
10.25"
(634mm)
SIDe VIew
20°
1.00"
MAX.
(25mm)
5.45" - 12.45"
(138mm - 316mm)
SIDe VIew
DetAIL VIew
15° tILt
ISometrIC VIew
