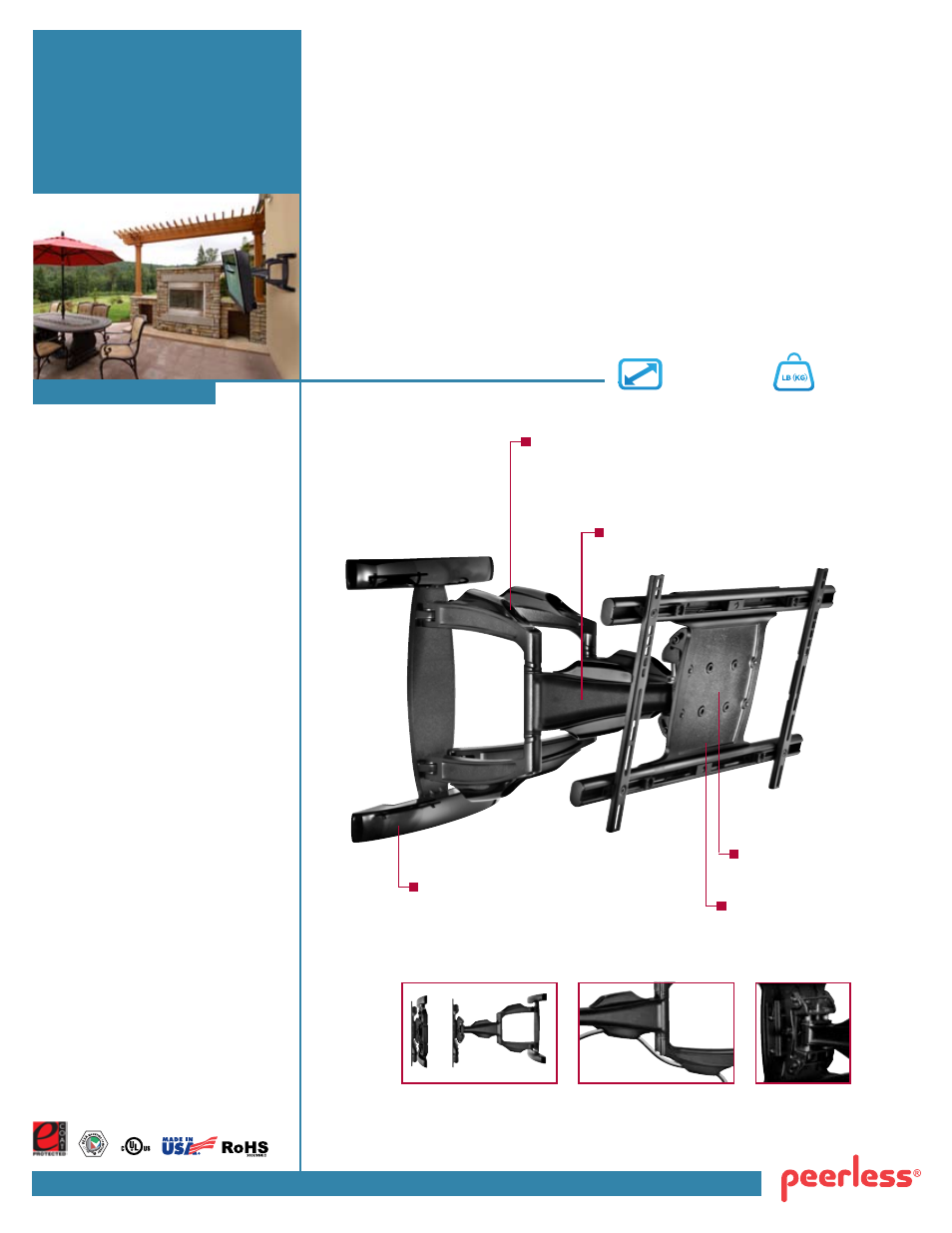

Peerless-AV ESA763PU - Sell Sheet - Manual

Corrosion Resistant Articulating Mount
for 37"-63" Indoor or Outdoor Flat Panel Displays
The Corrosion Resistant Articulating Mount For 37"-63" Indoor or Outdoor Flat Panel Displays
from Peerless is ready to let entertainment prosper in any indoor or outdoor environment. The
ESA763PU is specially coated with a protective anti-corrosive e-coating that repels damaging
temperature-related and outdoor corrosive elements. Delivering all weather indoor and outdoor
display placement value for uses in three-season rooms, patios or decks. This all-environment mount
is also ideal for installations in humid indoor areas like locker rooms, bathrooms, car washes, indoor
pools or water parks. Indoors or out the ESA763PU provides durable all-environment mounting
solution that is ready for any setting.
1" (25mm) clearance per
channel for clean and
simple cable management
Screen size: 37"-63" Max load: 200lb (91kg)
ESA763PU
 Indoor/outdoor corrosion
protection
 Supports displays
with 27.06"W x 17.29"H
(687 x 439mm) mounting
pattern and up to
600 x 400mm VESA ®
compliant
 Works in portrait or
landscape orientation
 +15°/-5° tilt, 90° swivel
 27.55" (700mm) arm
extension, when collapsed
4.43" (113mm) from the wall
 16" Double stud wall plate
with up to 4.5" (114mm) of
horizontal adjustment
 Screen side and wall side
security hardware included
 Wood, concrete and cinder
block mounting hardware
included
 Capable of portrait or
landscape orientation
CLICK: www.peerlessmounts.com CALL: 800.865.2112 FAX: 708.865.2941
FeAtureS
Arm retracts to just 4.43"
(113mm) and extends up to
27.55" (700mm) from wall
FIne tunIng
±5° of roll adjustment
PoSt InStALLAtIon
HorIzontAL AdjuStAbILIty
Double stud mounting option with 4.5”
(114mm) of horizontal adjustment
1" (25mm) of vertical
adjustment for
post-installation fine tuning
SCreen PoSItIonIng oPtIonS
Arm extends up to 27.55" (700mm)
neAt InStALLAtIon
Cable management keeps
cables out of sight
orIentAtIon oPtIonS
Portrait or landscape orientation
