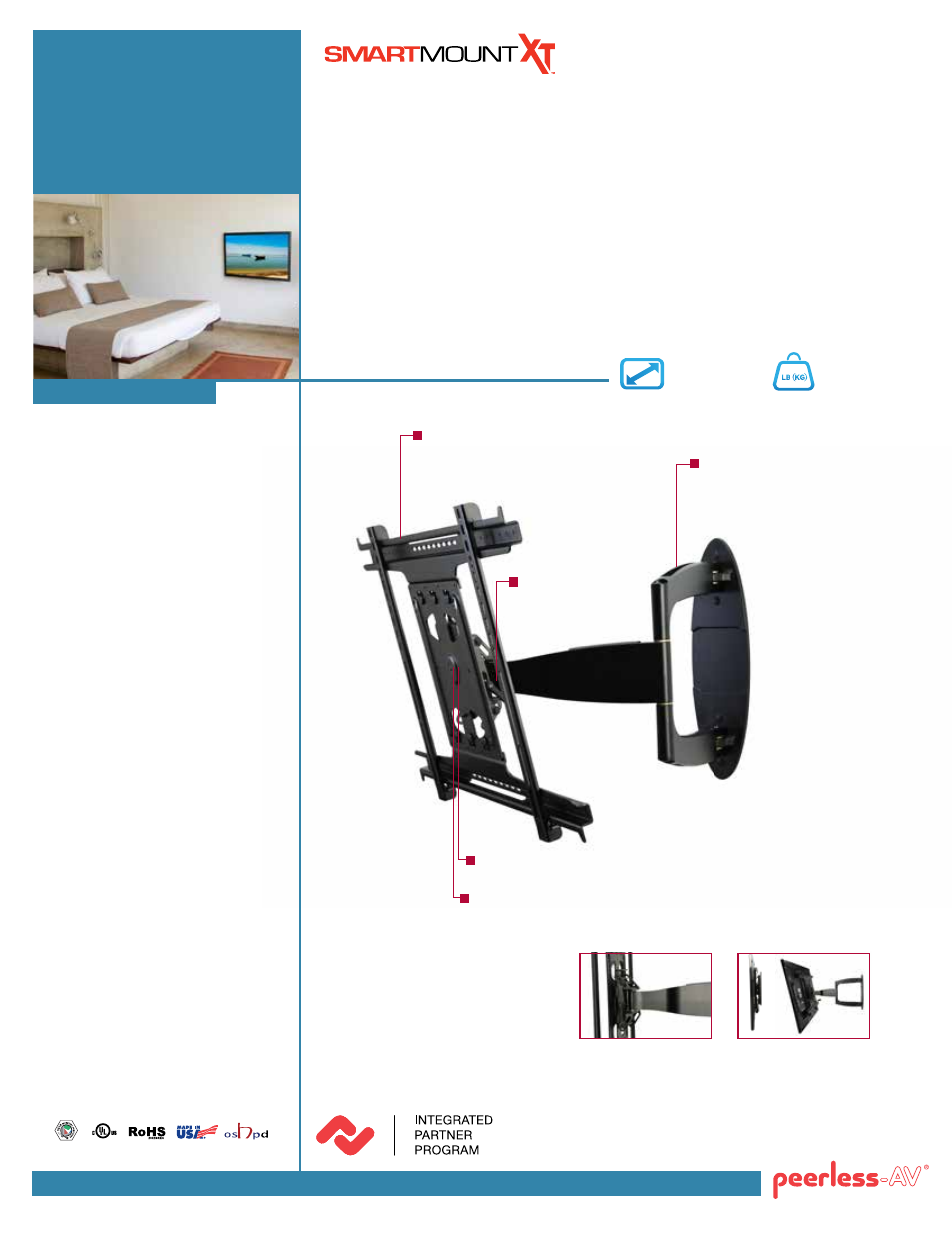

Peerless-AV SAX755PU - Sell Sheet - Manual

Universal Articulating Wall Arm
for 37" to 55" Displays
From any angle, this wall arm mount reflects remarkable form and function. Retracting the
display to a mere 2.54" (65mm) from the wall, extending it out to 26.41" (671mm) from the wall
and allowing for a full 180° of side to side motion offers the possibility of perfectly positioning
displays up to 55". With advanced features such as post-installation height adjustment, roll and
lateral shift, fine-tuning of the installation is quick and simple. This articulating arm also integrates
an internal cable management system that creates a clean and organized installation, while at
the same time protecting the cables. Designed and built in the USA, this mount maintains the
same brilliant you expect to find with the SmartMount
® Series of Articulating and Pivot Wall Arm
Mounts, but provides the premium features you can only find with SmartMountXT TM .
Display size: 37"-55" Max load: 80lb (36kg)
SAX755PU
 Low-profile when retracted at
2.54" (65mm) and can extend
up to 26.41" (671mm) from the
wall
 Internal cable management
provides ample area to run
cables to complete a clean,
professional installation
 One-Touch™ tilt mechanism
allows adjustment of +15/-5°
without the use of tools
 ±5° of roll for post-installation
display leveling
 Display can be rotated from
landscape to portrait without
removing the display
 ±0.5" of vertical adjustment
for post-installation height
adjustment fine-tuning
 Slim, single stud wall plate
footprint increases electrical
and cable management
options
FeatureS
LandScape to portrait
Rotate the display from landscape to
portrait without having to remove it
cLicK: peerless-av.com caLL: 800.865.2112 FaX: 800.359.6500
±5° oF roLL
For quick post-installation leveling adjustments
one-touch™ tiLt
No tools required
for viewing angle
adjustments
VerticaL adjuStment
Up to 1" (25.4mm) of vertical
adjustment for fine-tuning
the height of the display
internaL cabLe management
Creates a clean, professional
installation while protecting and
organizing the cables
Contact your Peerless-AV sales representative for more information
Arm retracts to just 2.54"
(65mm) and extends up to
26.41" (671mm) from the wall
Up to 1" (25.4mm)
of height adjustment
Patented. Design Patent No. D623,634.
Utility Panent No. 8,561,955.
