ISSUED: 08-31-11 SHEET #: 009-9053-7 07-25-12

NOTE: For fl at back displays proceed to step 7-1. For bump-out or recessed back display skip to step 7-2.

NOTES:

• The number of fasteners used will vary, depending

upon the type of display.

• Multi-washers and spacers may not be used,

depending upon the type of display.

• Use the corresponding hole in the multi-washer that

matches your screw size as shown.

MEDIUM HOLE FOR M5 SCREWS

SMALL HOLE FOR M4 SCREWS

LARGE HOLE FOR M6 SCREWS

MULTI-WASHER

To prevent scratching the display, set a cloth on a fl at, level surface that will support the weight of the display. Place
display face side down. If display has knobs on the back, remove them to allow the adapter plate to be attached.

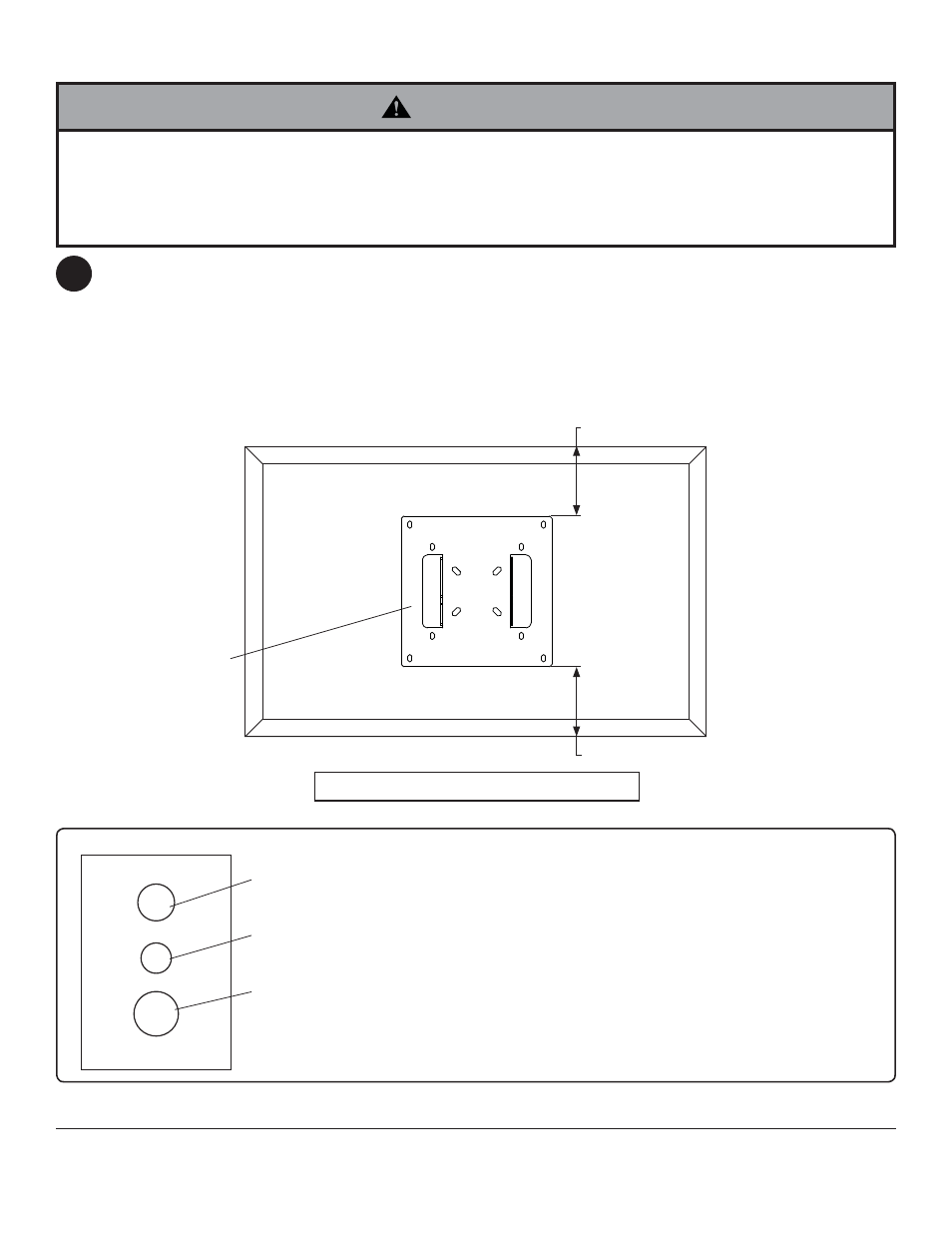

Place adapter plate (B) on back of display. Align to holes then attach the adapter plate to the back of the display
using the appropriate combination of screws, multi-washers, and spacers as shown in fi gure 7.1 or 7.2.

NOTE: Top and bottom mounting holes on display must be used for attaching brackets.

NOTE: Verify that all holes are properly aligned, and then tighten screws using a phillips screwdriver.

Installing Adapter Plate

• Tighten screws so adapter plate is fi rmly attached. Do not tighten with excessive force. Overtightening can cause

stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become
detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque.

• If screws don't get three complete turns in the display inserts or if screws bottom out and adapter plate is still not

tightly secured, damage may occur to display or product may fail.

WARNING

NOTE: "X" dimensions should be equal.
