PACKAGE SIZE (L x W x H) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS
UNITS IN
PACKAGE
HLG452-003
10" x 1.75" x 20"
(254 x 44 x 508 mm)
2.8 lb (1.27 kg) 735029260875
Lock-down plate, security
screws and slope nuts,
fastener packet
1
DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS
HLG452-003
15.25" x 4.75" x 0.22"
(387 x 121 x 6 mm)
1.61 lb (0.73 kg) 100 lb (45 kg)
Scratch resistant
fused epoxy
Black
Product Specifications
Model Numbers
WARRANTY: Limited 5-year
A R C H I T E C T S S P E C I F I C A T I O N S
The TV Base Lock-Down Kit shall be a Peerless-AV model HLG452-003 and shall be located where indicated on the plans.
It shall be constructed of heavy gauge steel. The finish shall be scratch resistant black fused epoxy.
Assembly and installation shall be done according to instructions provided by the manufacturer.
All dimensions = inch (mm)
LIT-0408 rev.1
HLG452-003 Flat Panel TV Base Stand Lock-Down Plate for a variety of 23"-52" TV models
Package Specifications
Accessories
ACC939: 1/4-20 x 2.25" carriage screws for thicker desktop surfaces
ACC943: Drill Template
DRILL 9/32" Ø HOLES
(2 PLACES)
15.25"
[387 mm]
.22"
[6 mm]
4.75"
[121 mm]
7"
[178 mm]
2.38"
[60 mm]

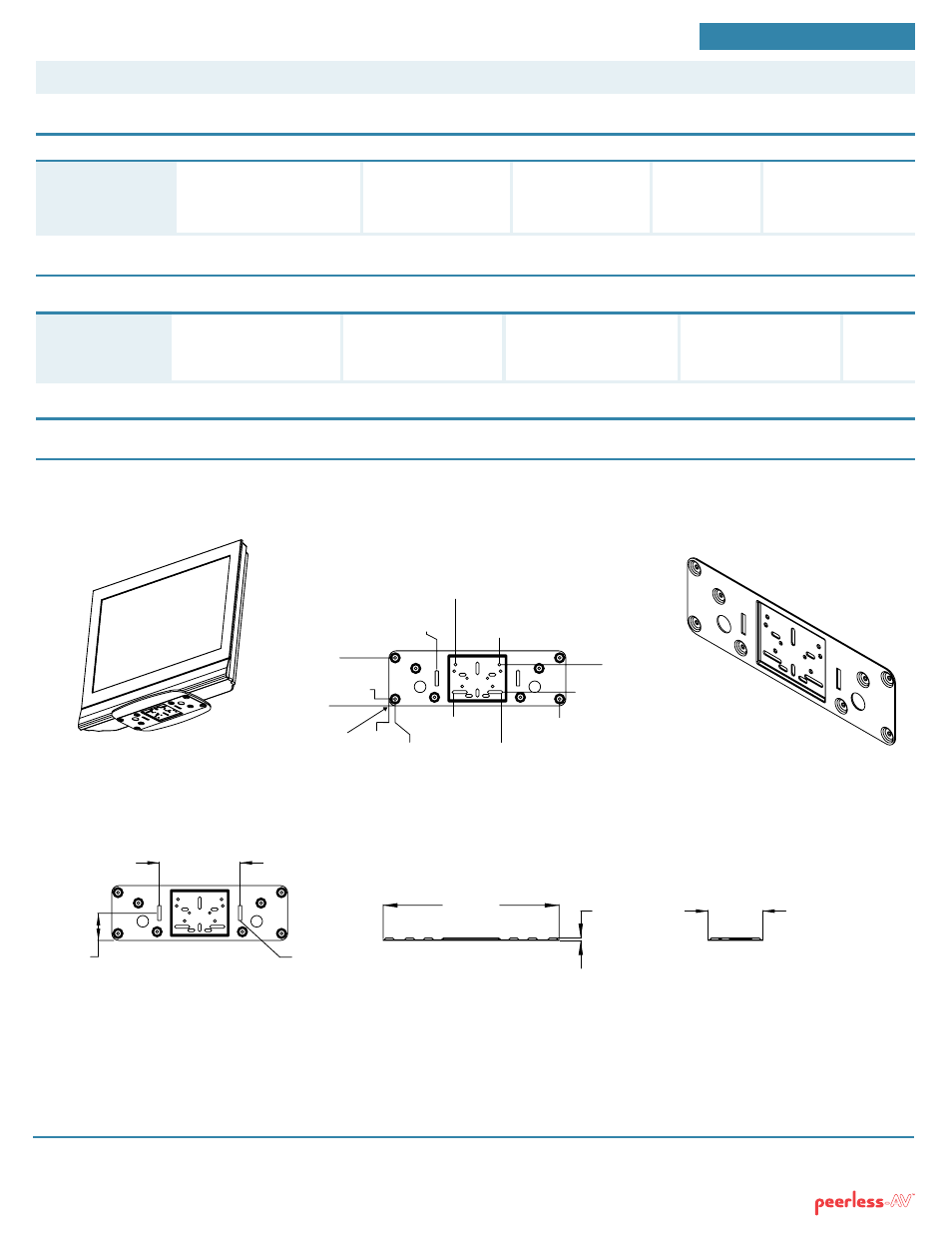

APPLICATION VIEW
FRONT VIEW MOUNT HOLES SIDE VIEW
ISO VIEW
0.0
0.0
.6"
[15 mm]
4.15"
[105 mm]
4.13"
[105 mm]
5.73"
[146 mm]
9.52"
[242 mm]
3.56"
[90 mm]
1.19"
[30 mm]
14.71"
[374 mm]
9.69"
[246 mm]
5.56"
[141 mm]
.54"
[14 mm]
TOP VIEW
POINT OF ORIGIN
FOR DIMENSIONS
Visit www.peerless-av.com to see the complete line of AV solutions from Peerless-AV, including flat panel mounts, projector mounts, carts/stands, furniture, cables, screen cleaners and a full assortment of accessories.
© 2011 Peerless Industries, Inc. All rights reserved.
Peerless Industries, Inc.  2300 White Oak Circle  Aurora, IL 60502  (800) 865-2112  (630) 375-5100  Fax: (800) 359-6500  www.peerless-av.com
