A R C H I T E C T S S P E C I F I C A T I O N S
The Pivot Wall Mount shall be a Peerless-AV model SPL724 and shall be located where indicated on the plans. Assembly and installation shall be done according to
instructions provided by the manufacturer.
PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE
SpL724
9.00" x 6.00" x 2.30"
(229 x 152 x 58mm)
2.00lb (0.91kg) 735029292630
Wall mount,
attachment
hardware and
installation
instructions
1
Package Specifications
Accessories
DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS
SpL724
8.15" x 5.50" x 2.48"-7.13"
(207 x 140 x 63-181mm)
1.46lb (0.66kg) 25lb (11kg) Matte Black
Product Specifications
Model Numbers
Warranty: Limited 5-year
aCC972: VESA ® 200 x 100mm Adaptor Plates
eShv10: Single AV Wall Shelf
eShv20: Single AV Wall Shelf with Glass
eShv30: Dual AV Wall Shelf with Glass
SpL724 SmartMountLT™ Pivoting Wall Mount for 10" to 24" Displays
LIT-0996
peerless Industries, Inc.  2300 White oak Circle  aurora, IL 60502  (800) 865-2112  (630) 375-5100  Fax: (800) 359-6500  peerless-av.com
Visit peerless-av.com to see the complete line of AV solutions from Peerless-AV, including flat panel mounts, projector mounts, carts/stands, furniture, cables, screen cleaners and a full assortment of accessories.
© 2012 Peerless Industries, Inc. Peerless-AV ® is a registered trademark and SmartMountLT™ is a trademark of Peerless Industries, Inc. All rights reserved.

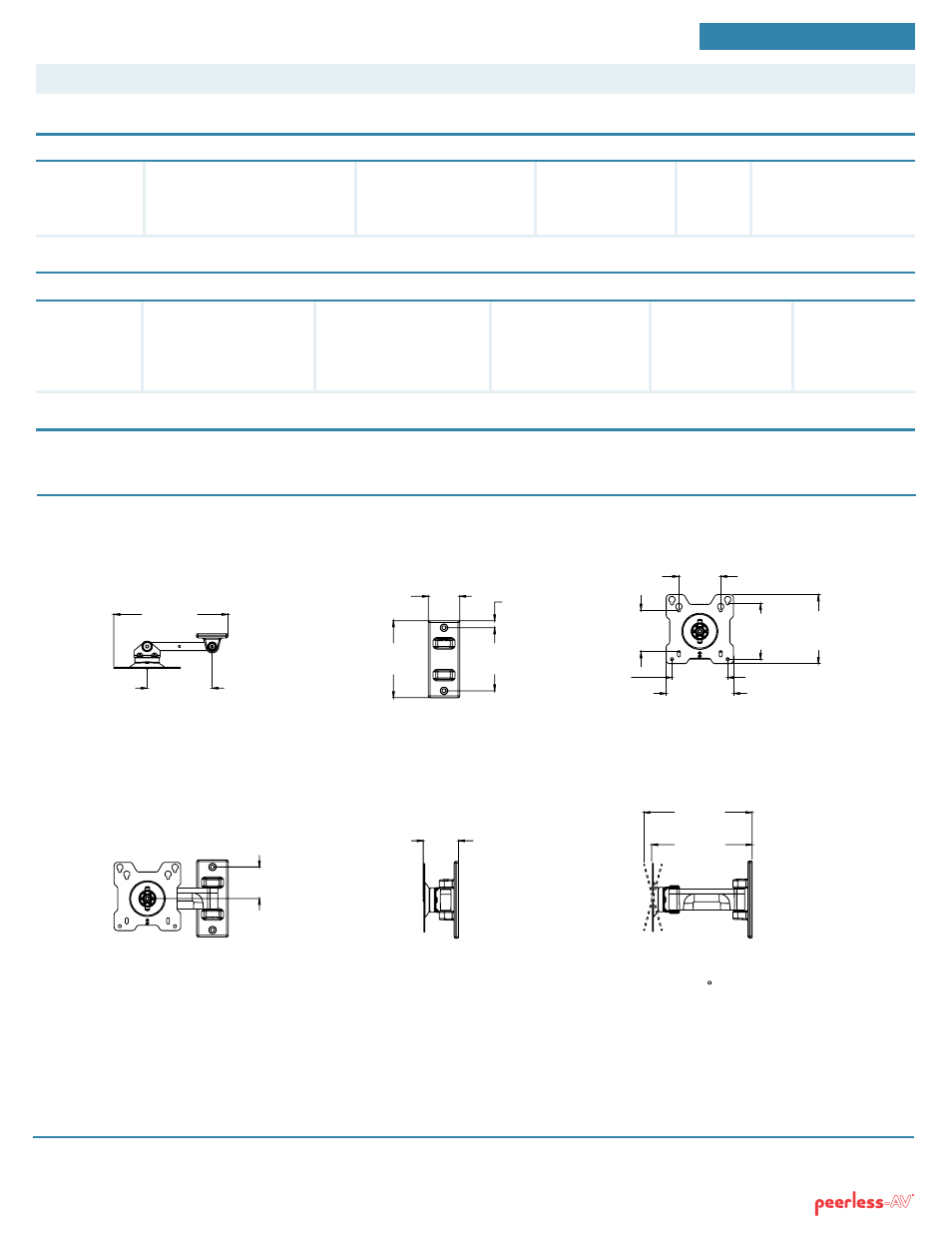

Front vIeW
top vIeW WaLL pLate
SIde vIeW
8.15"
(207mm)
4.65"
(118mm)
2.26"
(57mm)
5.50"
(140mm)
2.25"
(57mm)
4.50"
(114mm)
0.50"
(13mm)
2.48"
(63mm)
7.13"
(181mm)
SIde vIeW
eXtended
+/-15 tILt
8.34"
(212mm)
adapter pLate
3.94"
(100mm)
2.95"
(75mm)
3.94"
(100mm)
4.88"
(124mm)
2.95"
(75mm)
4.75"
(121mm)
aCC918: Security Fasteners for Wall Arms
WSp700/701: Metal Stud Wall Plate
