Control Elements

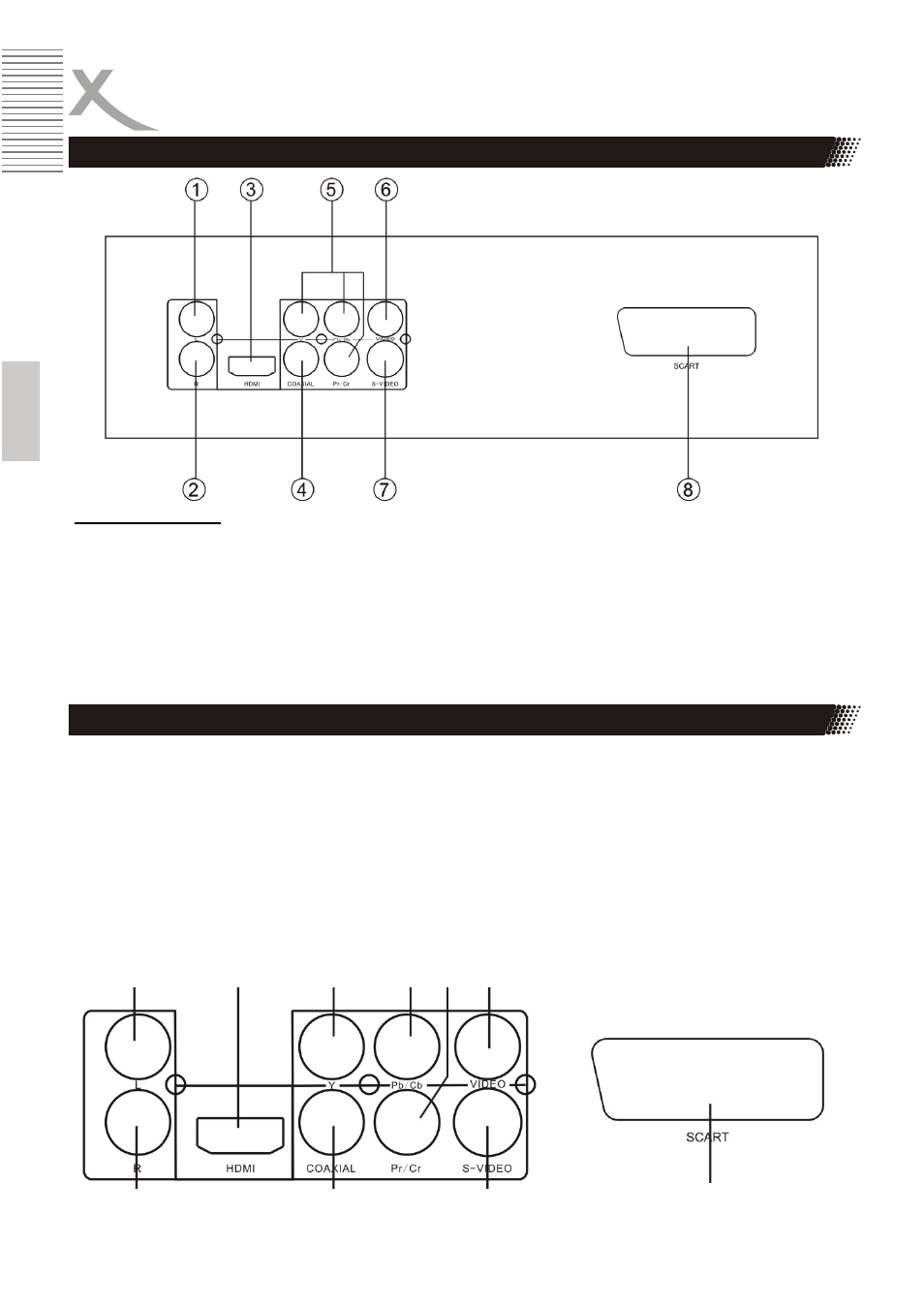

Rear Panel
Control Elements
1.
Left Audio Output (Stereo RCA)
2. Right Audio Output (Stereo RCA)
3. HDMI video and audio output
4. Coaxial digital audio output (electrical)
5. Components Y Pb/Cb Pr/Cr video output
6. CVBS video output
7. S-Video output
8. SCART connector
The HSD 8550 provides different ways to output video and audio signals. Please refer the below
picture which shows the different Audio and Video outputs:
•
HDMI
•
CVBS
•
S-Video
•
SCART
•
Component Y Pb/Cb Pr/Cr
