Peerless-AV SUF640P - Sell Sheet - Manual (Page 2)

15.82.81
PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE
sUF640P
22.375" x 2.375" x 5.25"
(568 x 60 x 133mm)
4.7lb (2.2kg) 735029258353
Wall plate, universal
display adapters,
mounting and display
attachment hardware
1
Package Specifications
Accessories
DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS
sUF640P
20.69" x 17.95" x .33"
(526 x 456 x 8mm)
4.1lb (1.9kg) 150lb (68kg)
Scratch
resistant
fused
epoxy
Gloss Black
Product Specifications
Model Numbers
warranty: limited 5-year
A R C H I T E C T S S P E C I F I C A T I O N S
The Ultra-Thin Universal Flat Wall Mount shall be a Peerless-AV model SUF640P and shall be located where indicated on the plans. It shall be constructed
of cold rolled steel and feature scratch resistant gloss black fused epoxy finish. Assembly and installation shall be done according to instructions provided.
acc215: Metal Stud Accessory Kit
All dimensions = inch (mm)
sUF640P: Universal Ultra Slim Flat Wall Mount for 23" to 46" Ultra-thin Flat Panel Displays
LIT-0387 rev.3
NOTE: Display Compatibility Requirements
Designed exclusively for use with ultra-thin displays 2” (50.8mm) deep or less
 The display does not require any additional heat ventilation room than 0.33” (8mm). Please refer to the manufacturer’s requirements for mounting your display on the wall.
 The display must have a flat mounting surface, or the mounting holes need to be on the furthest back surface of the display.
 Input/Output connection must be properly orientated to accommodate mounting 0.33” (8mm) from the wall.
20.69"
(526 mm)
17.73"
(450 mm)
17.95"
(456 mm)
"
(401 mm)
.88"
(22 mm)
max
16"
(406 mm)

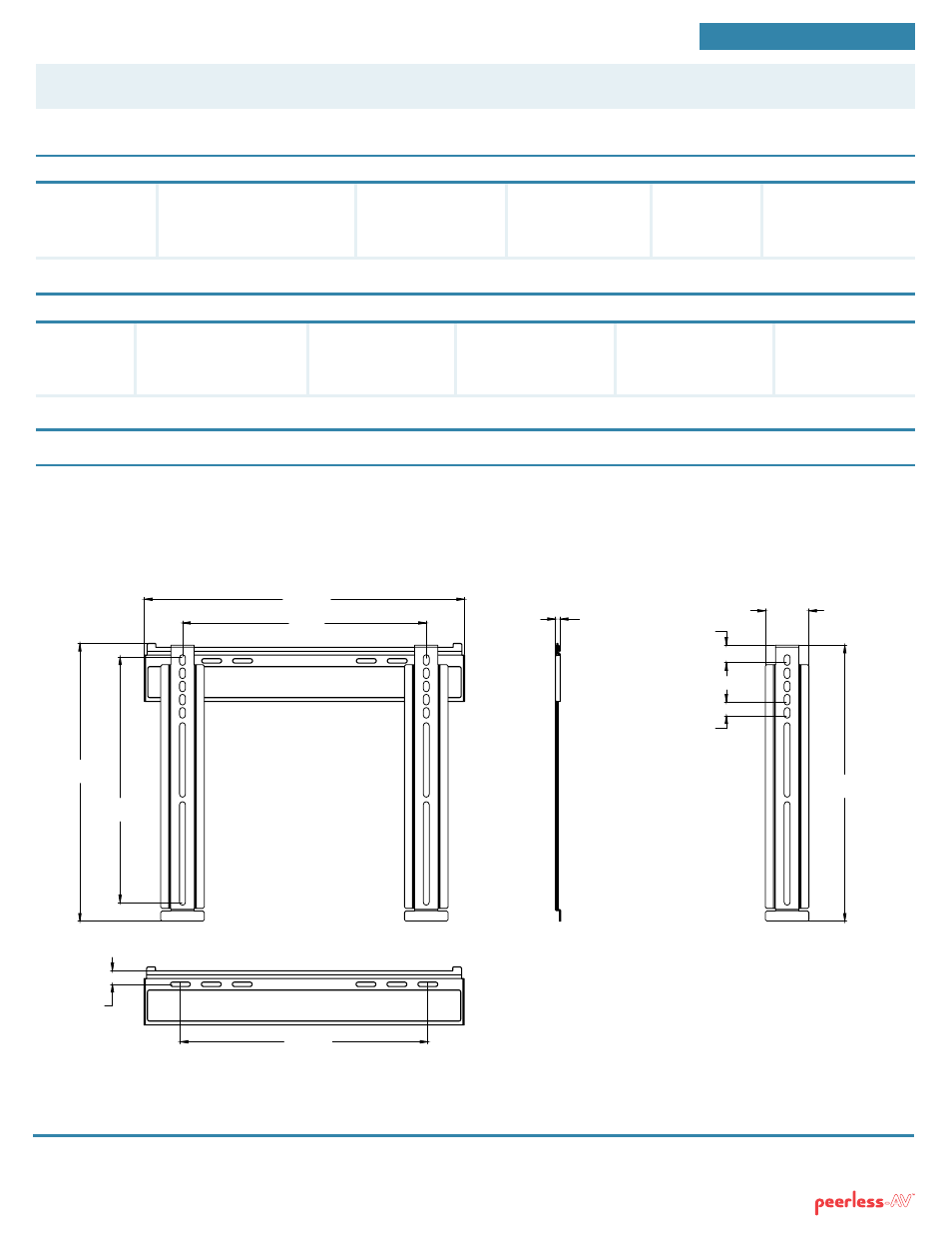

Front VIEw
.33"
(8 mm)
sIdE VIEw
.85"
(22 mm)
1.11"
(28 mm)
2.81"
(71 mm)
17.83"
(453 mm)
Front VIEw bracKEt dEtaIl
