3 of 9 ISSUED: 09-08-11 SHEET #: 009-9055-5 07-25-12
Before you begin, make sure all parts shown are included with your product.

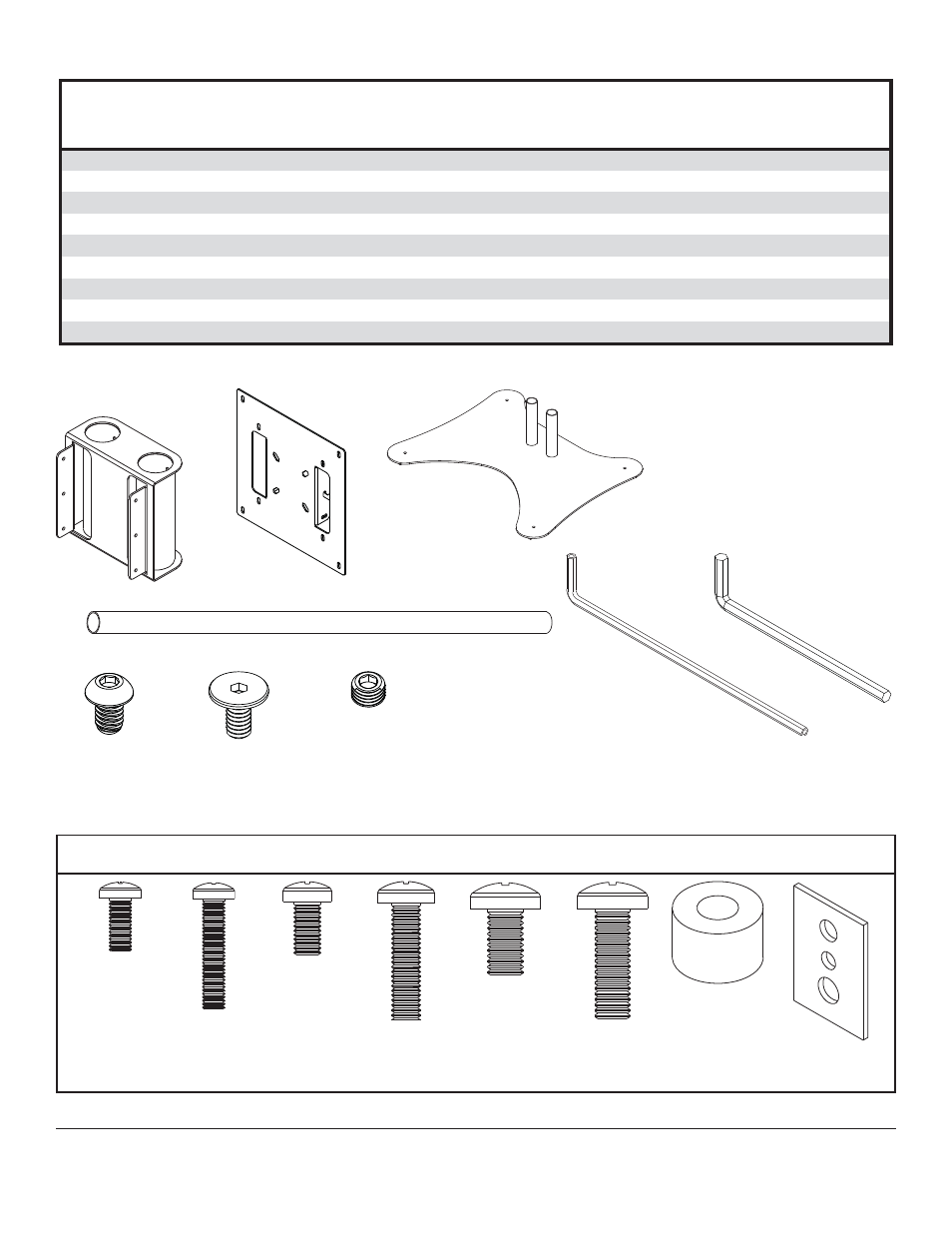

Parts List
SS560DPB SS560DPS
Description Qty. Part Number Part Number
A column bracket 1 009-1419 009-1419
B adapter plate 1 009-1599 009-1599
C column base 1 009-1415 009-1415
D column 2 009-1418 009-5451
E 5/16"-18 x 3/8" socket cap screws 4 520-1693 520-2693
F 1/4-20 x 12mm socket screws 4 520-2325 520-2325
G 5/16 x 1/4" set screw 4 520-9566 520-9566
H 4mm allen wrench 1 560-9646 560-9646
I 3/16" allen wrench 1 560-0071 560-0071
Parts may appear slightly different than illustrated.
A B C
D
E F G
H I
Adapter Bracket Fasteners
M5 x 12 mm (4)
(520-1027)
M5 x 25 mm (4)
(520-9543)
M6 x 12 mm (4)
(520-1128)
M6 x 25 mm (4)
(520-1208)
.75" spacer (4)
(540-1059)
Multi-washer (4)
(580-1398)
M8 x 25 mm (4)
(520-1031)
M8 x 12 mm (4)
(520-9571)
