Attach adapter plate (B) to projector using one screw (G , H, I or J) for each channel as shown below. Tighten
all screws, while keeping the center of gravity. Be sure that adapter plate (B) is straight. Adjust the feet of the
channels to keep the adapter plate level. Tighten all screws with 4 mm security t-wrench (L) while keeping the
center of gravity. If M3 screws (G) are used, tighten using 2 mm security allen wrench (M).
Note: Projectors will require different size screws for mounting. Use a combination of screws (G, H, I or J) and
foot adjustment that will result in channels of adapter plate (B) fi tting tightly against projector. Important: In
order to properly engage the threads in the mounting holes, the screw must be turned at least 3 full turns.
Note: If using screw (G), place washer (K) between screw (G) and foot of channel.
B
• It is the responsibility of the installer to ensure that
the projector is properly ventilated. Feet of channels
are used to raise the mount off the projector surface.
CAUTION
G , H, I or J
GENERIC PROJECTOR

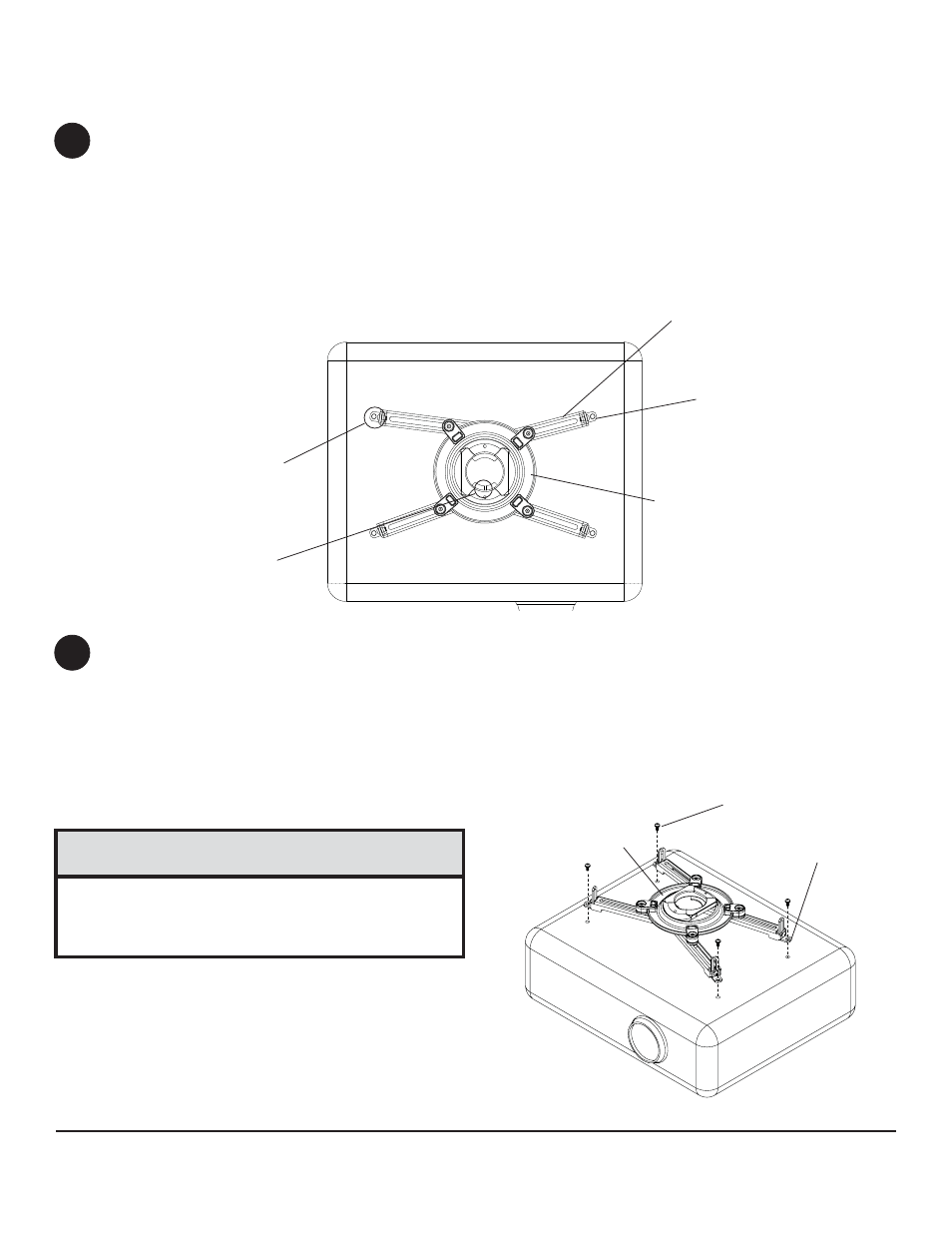

Place projector upside down. Locate adapter plate (B) with notch facing forward as close to projector center
of gravity as possible without covering any mounting holes. Loosen channels with 4 mm security t-wrench (L),
and if there are only three mounting holes remove fourth channel. Using one channel for each mounting
hole, position feet of channels over mounting holes as shown below. Important: If projector does not have at
least three mounting holes, do not use this adapter plate.
Note: Some projectors have feet which can be removed and the corresponding threaded insert can be used for
a mounting hole.
Note: Once channels are in position retighten fasteners.
*Notch indicates front of projector.
Note: The projector you are installing may differ in appearance from the sample illustrated below.
*
MOUNTING HOLE
B
5
6
CHANNEL
FOOT OF CHANNEL
Attaching Adapter Plate to Projector
FOOT OF CHANNEL
